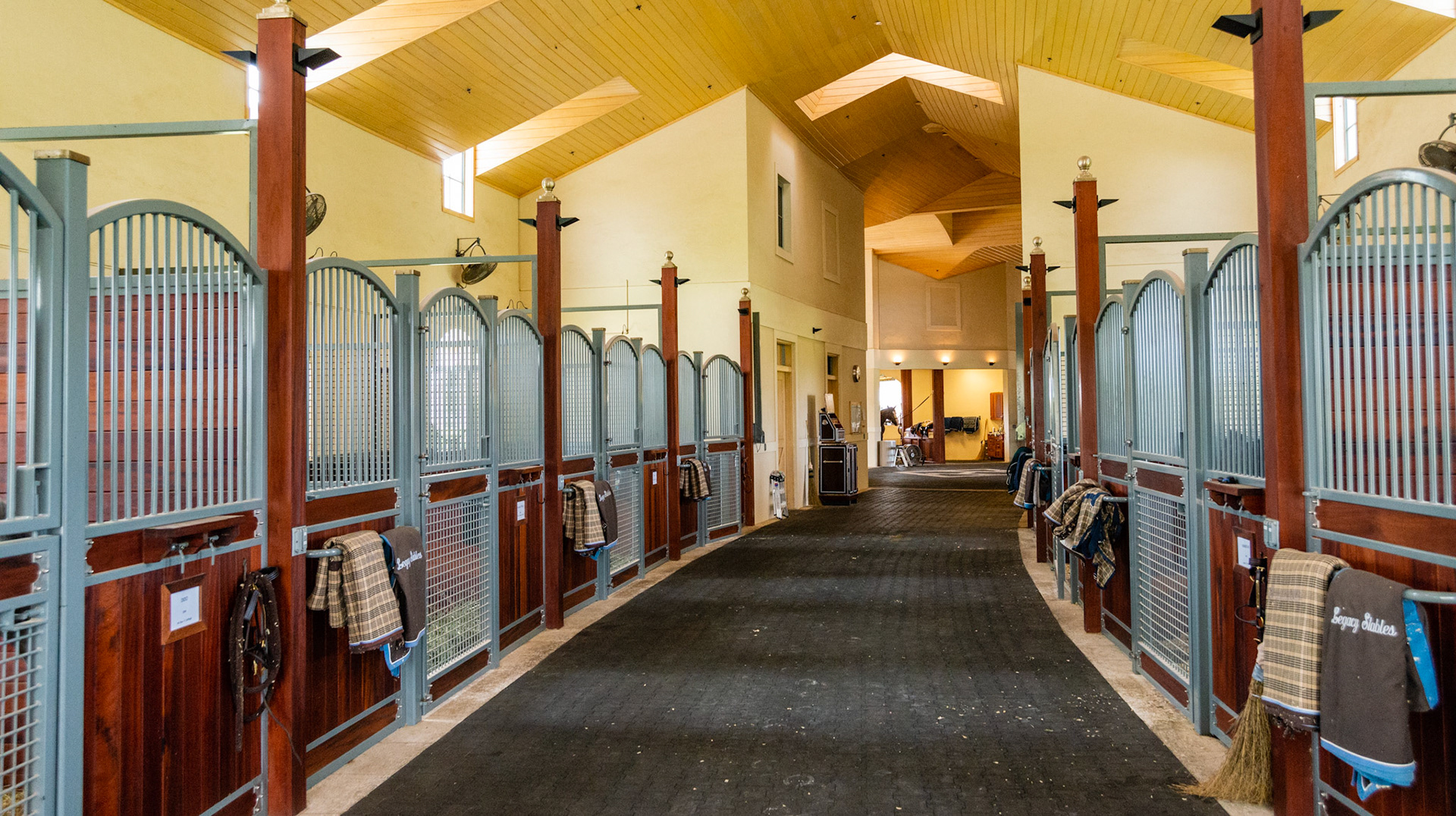

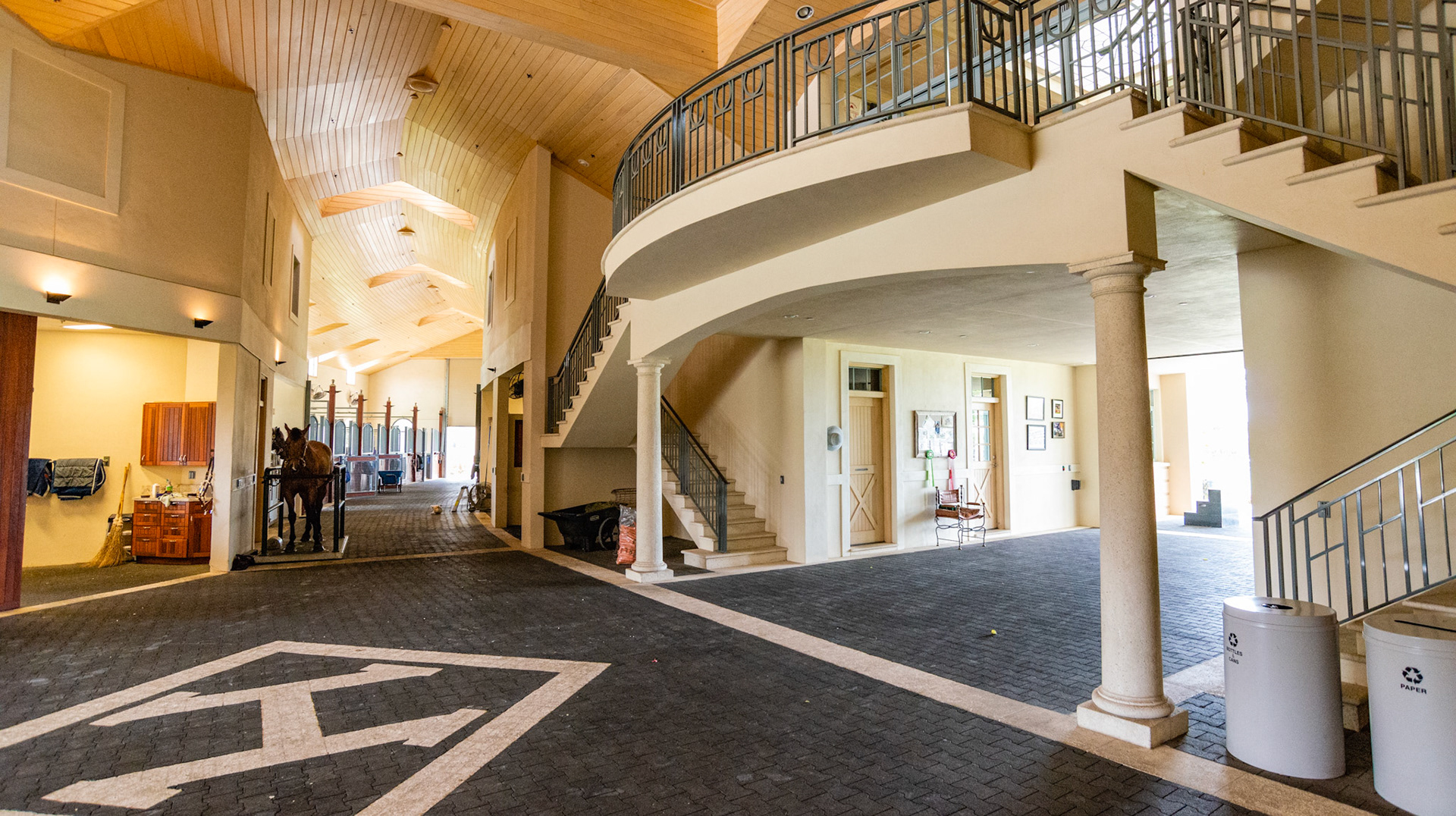

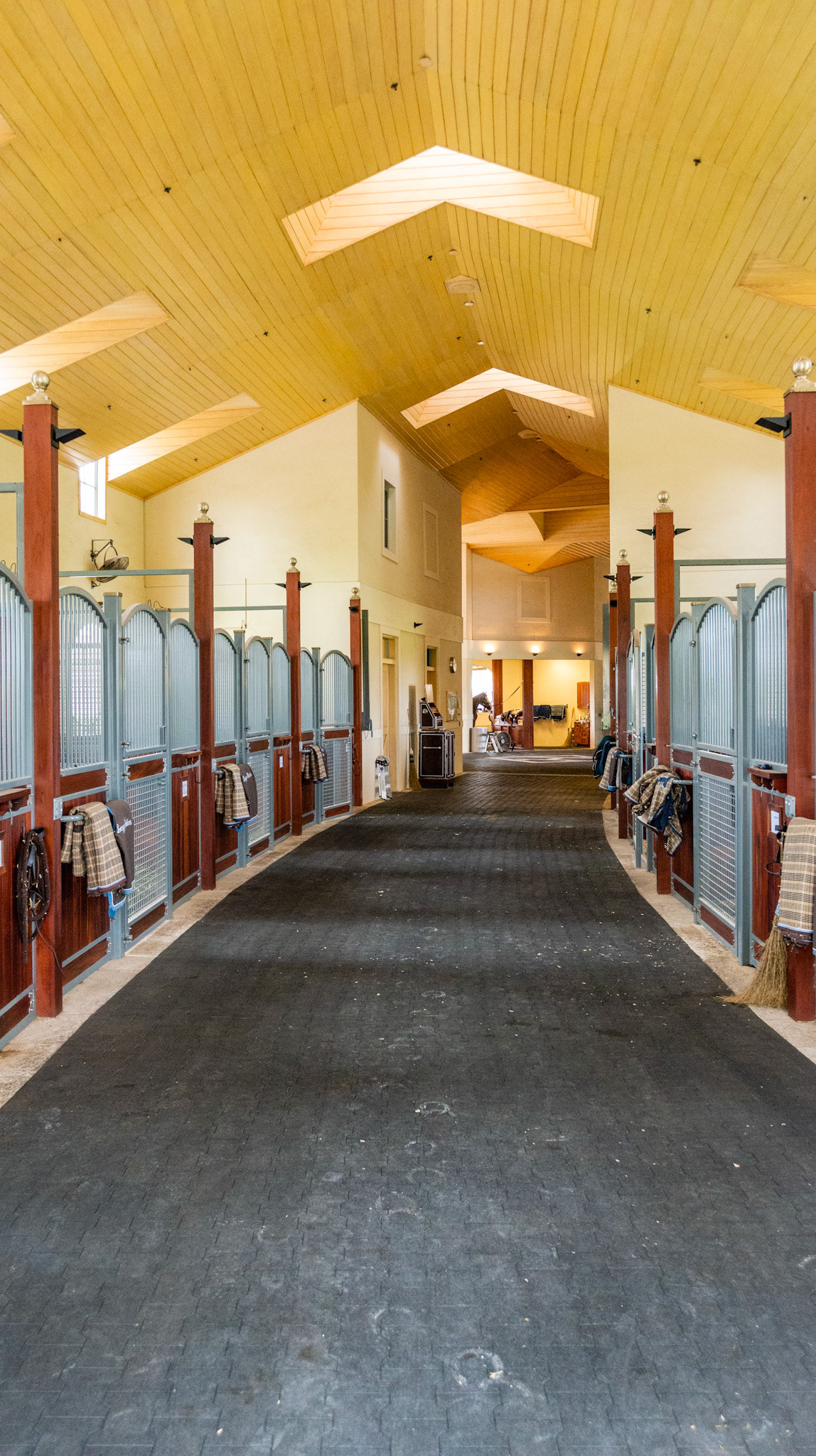

Rubber brick flooring and a finished stained wood ceiling.
Rubber brick flooring and a finished stained wood ceiling.
Inlaid brick provides texture and a less slippery surface.

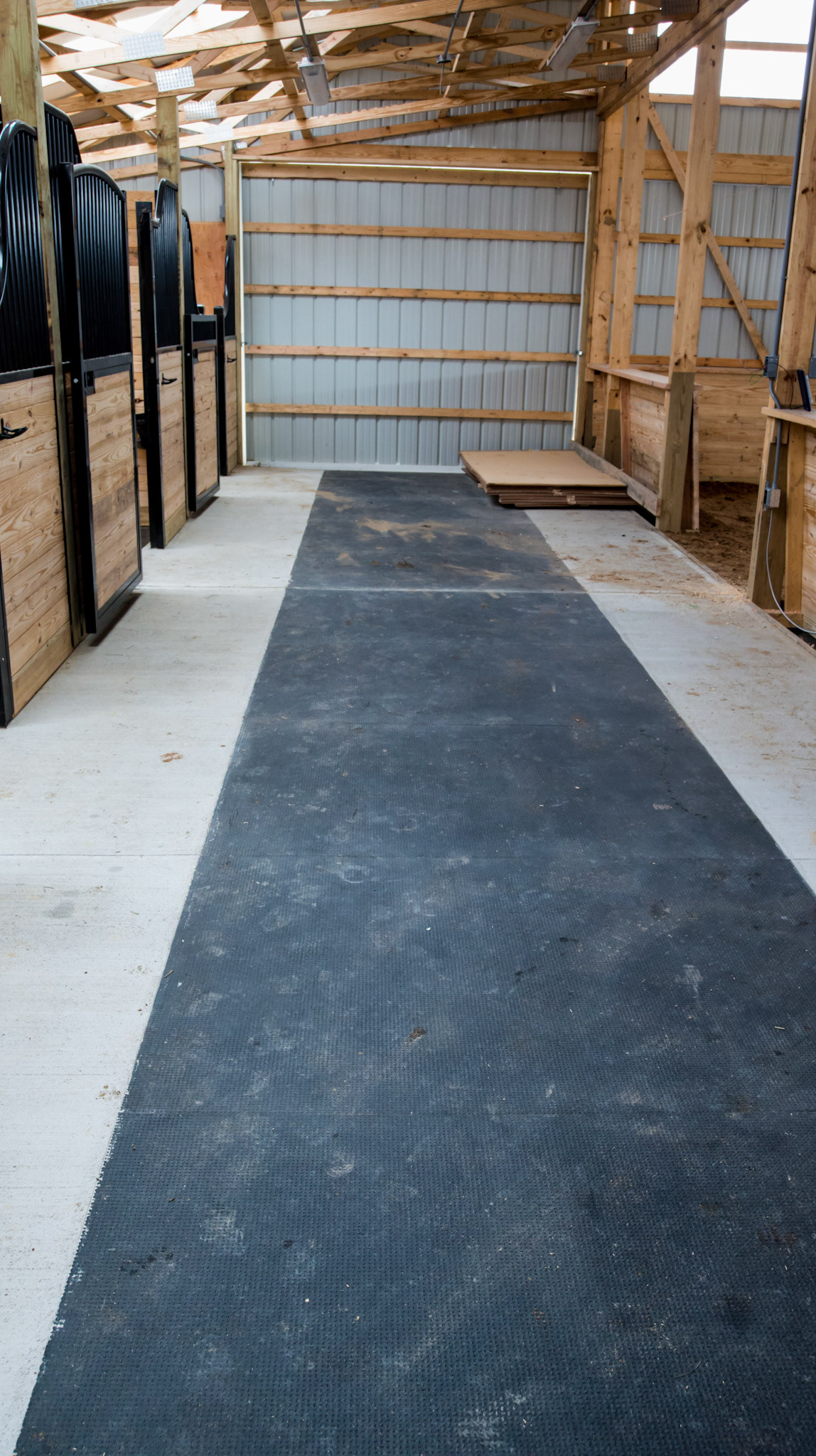

Rubber mats are laid in a cement frame.

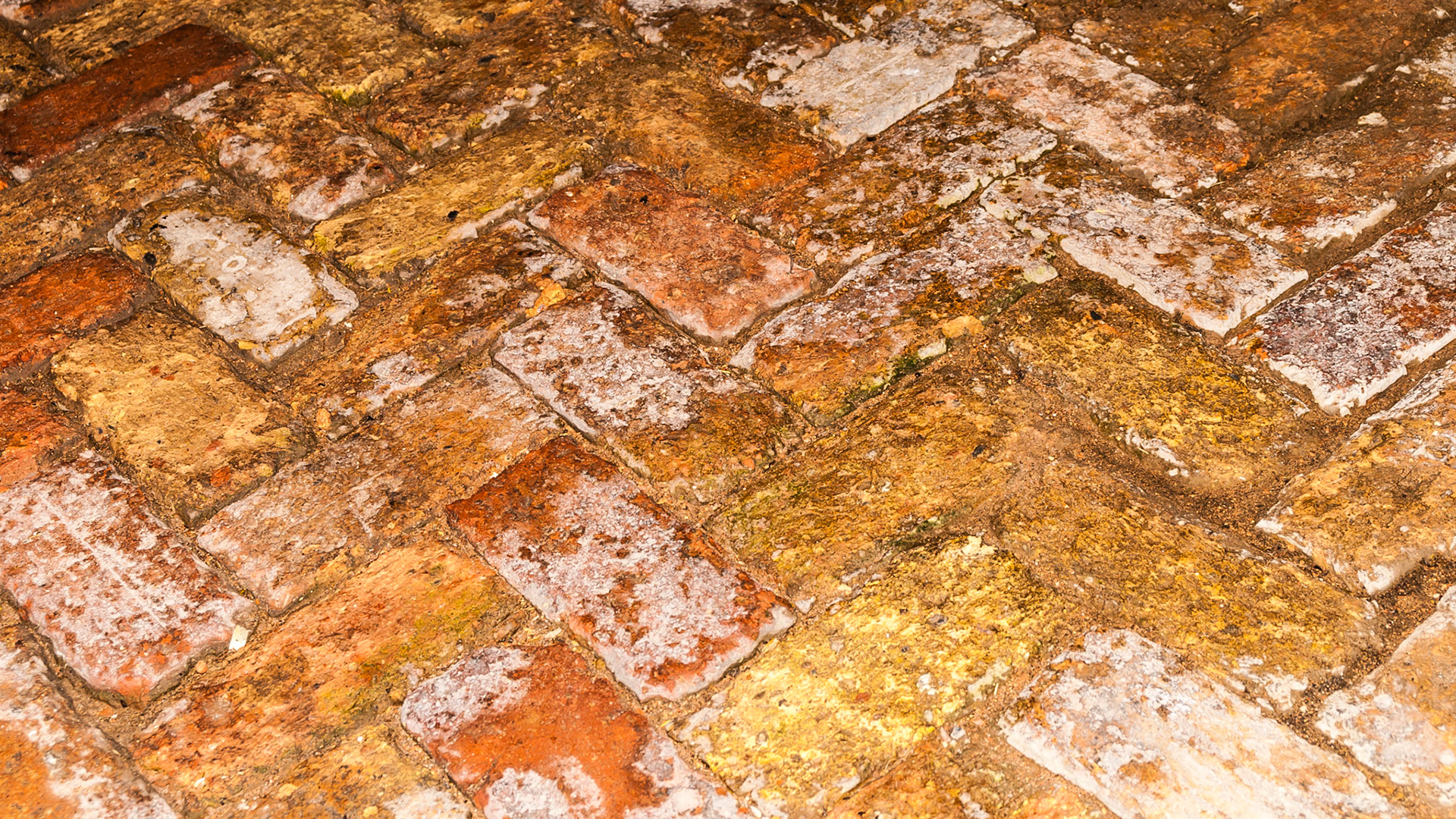

Hand laid brick in a herringbone pattern.
Barn interior. rubber mats are poured and glued in a frame of textured stone designed cement.

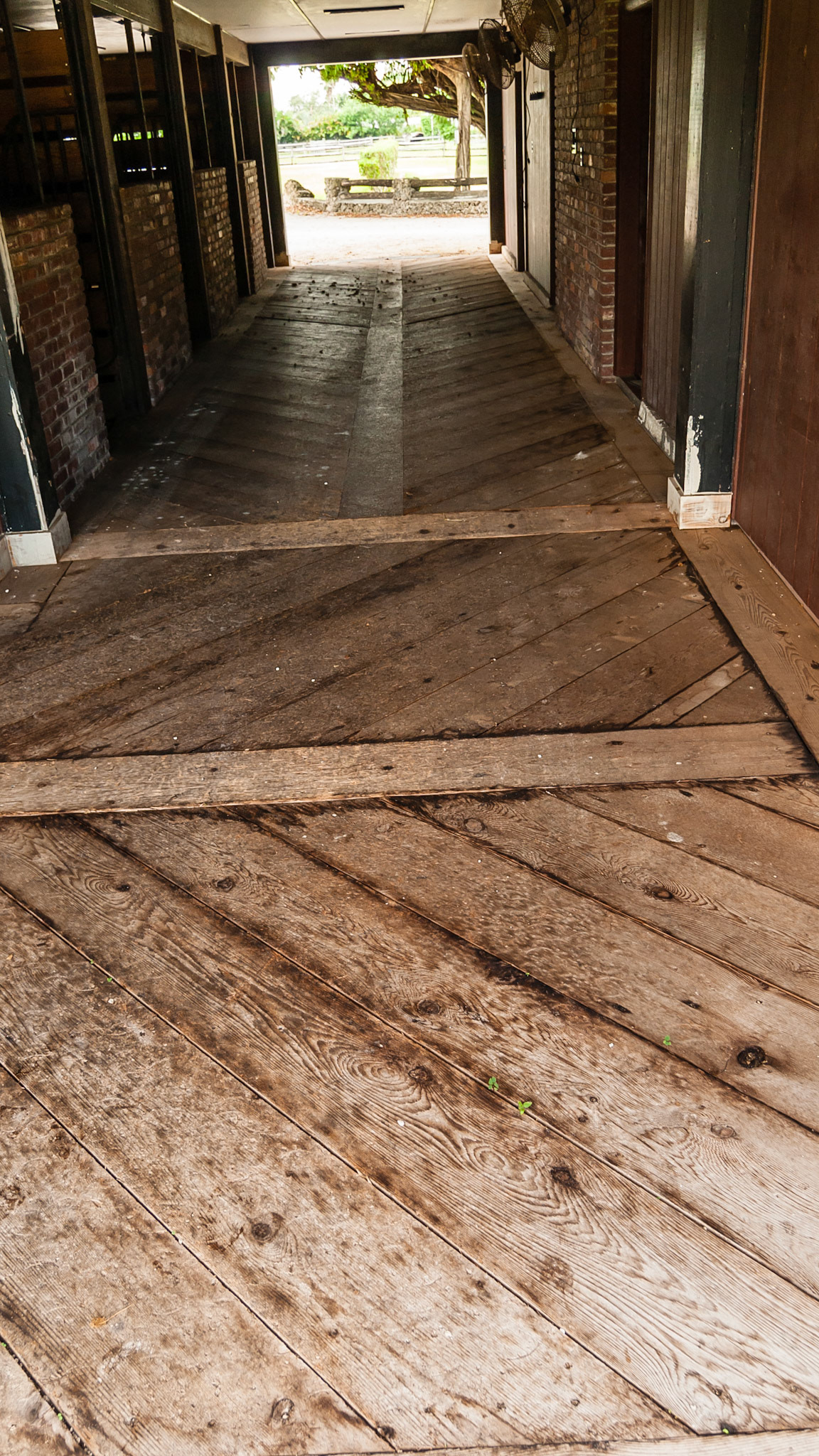

A wood floor in a herringbone pattern. These floors can become very slippery.
Security cameras mounted cleanly in high places

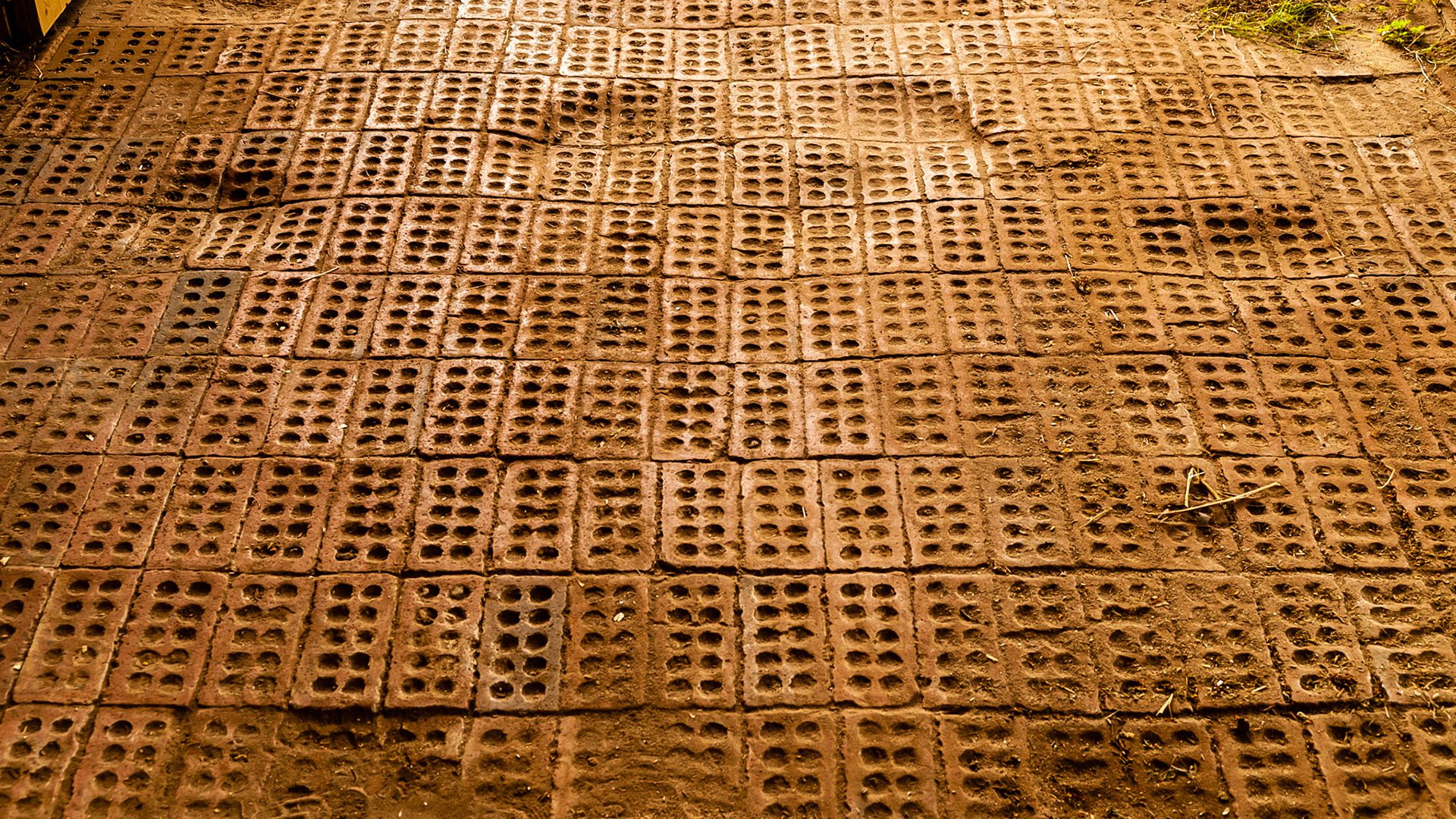

Hand laid brick in a grooming area. Note the worn areas where the horses and people have stood over the years.

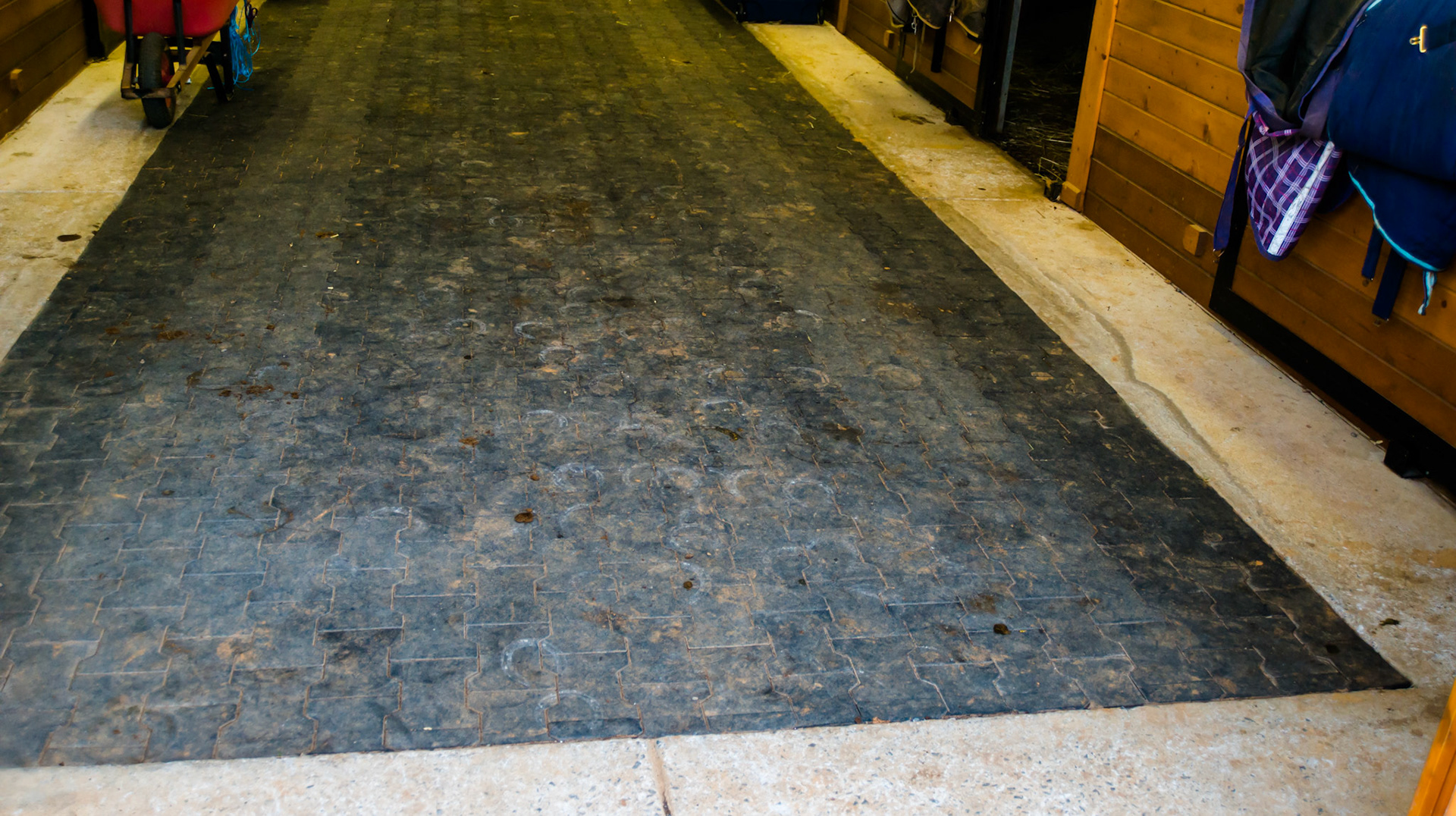

Rubber tiles laid into a cement frame

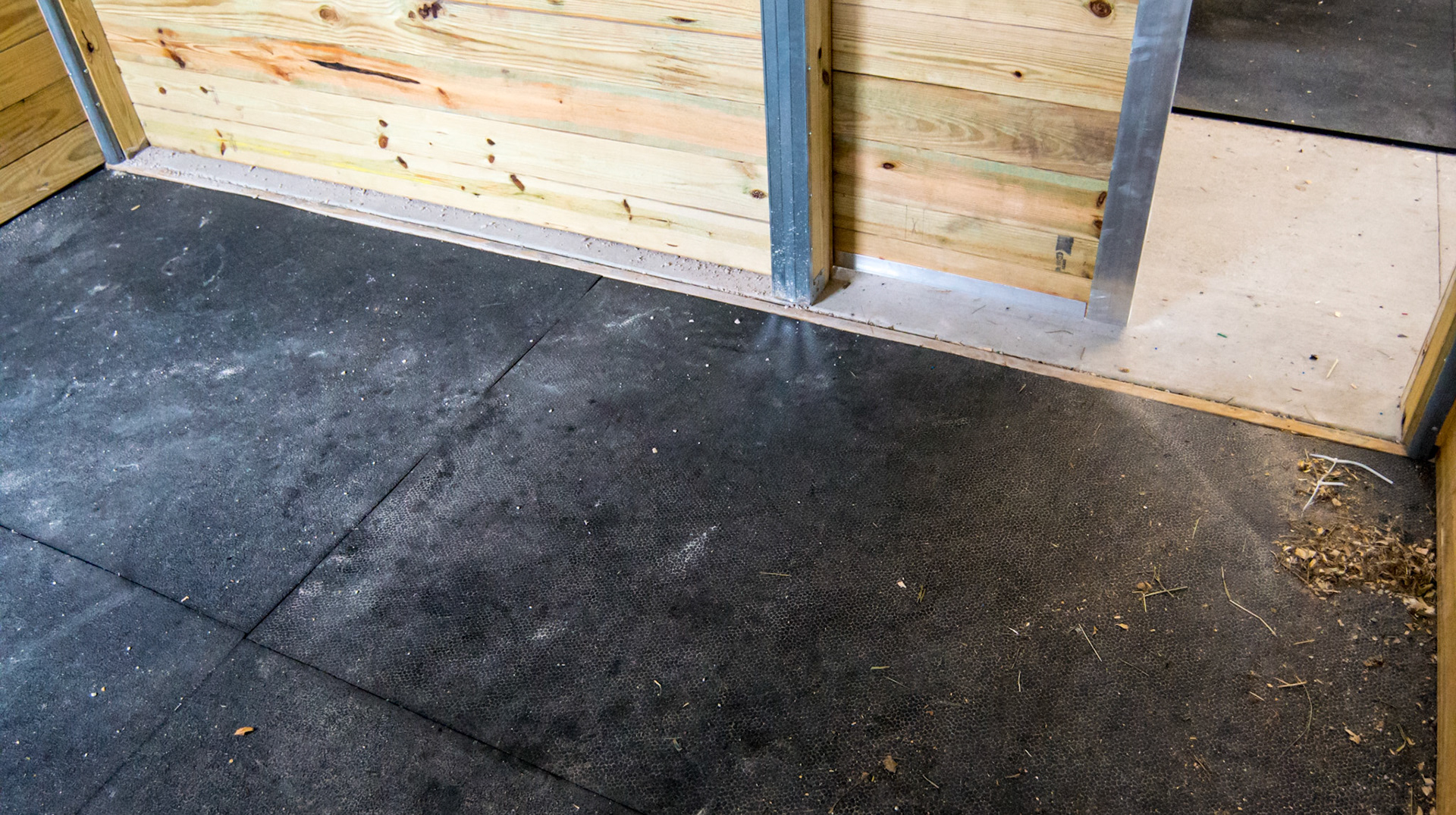

Metal trim in a brand new barn in Loxahatchee, FL - poured concrete and inlaid rubber stall mats

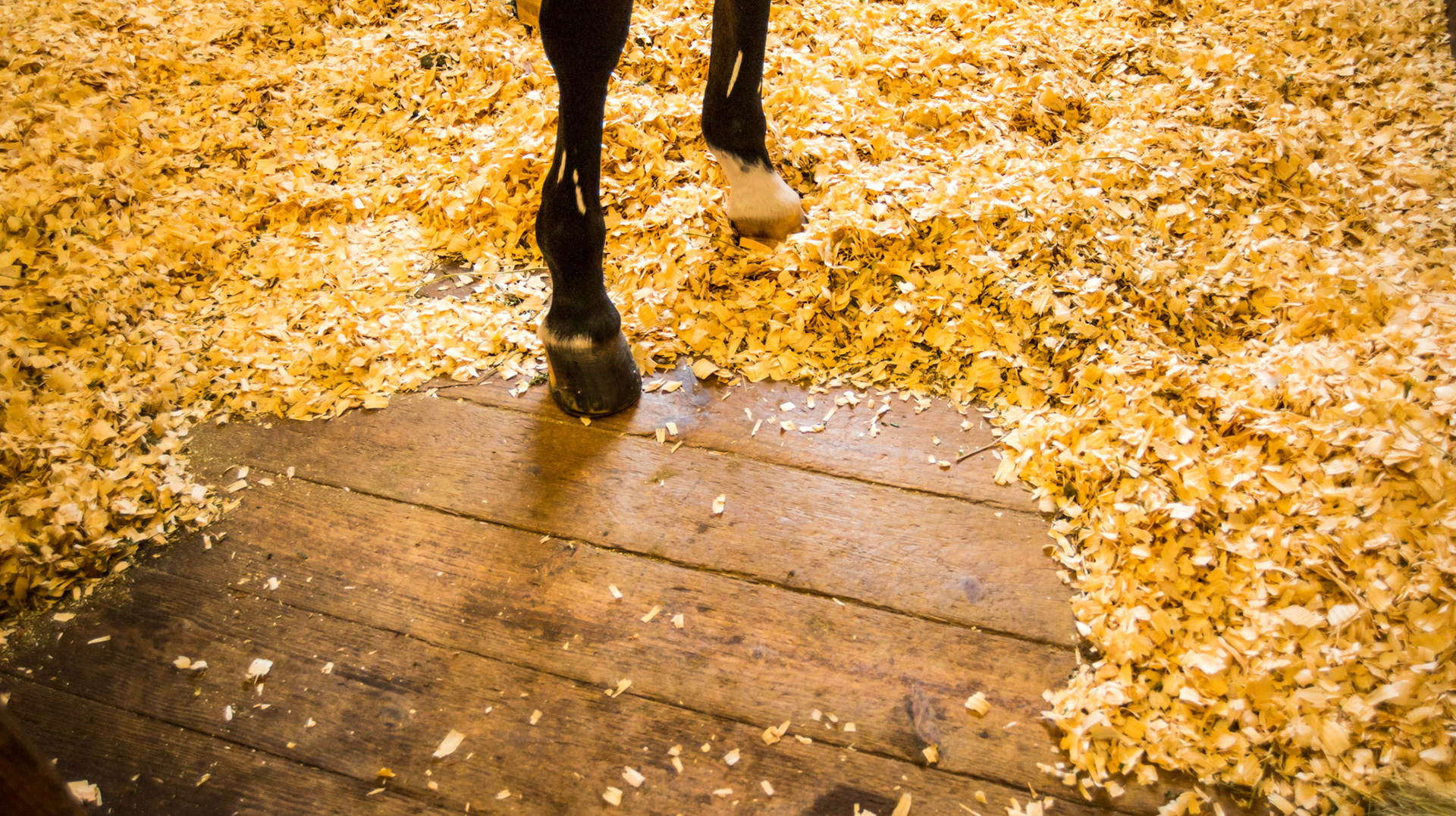

Wooden stall floor

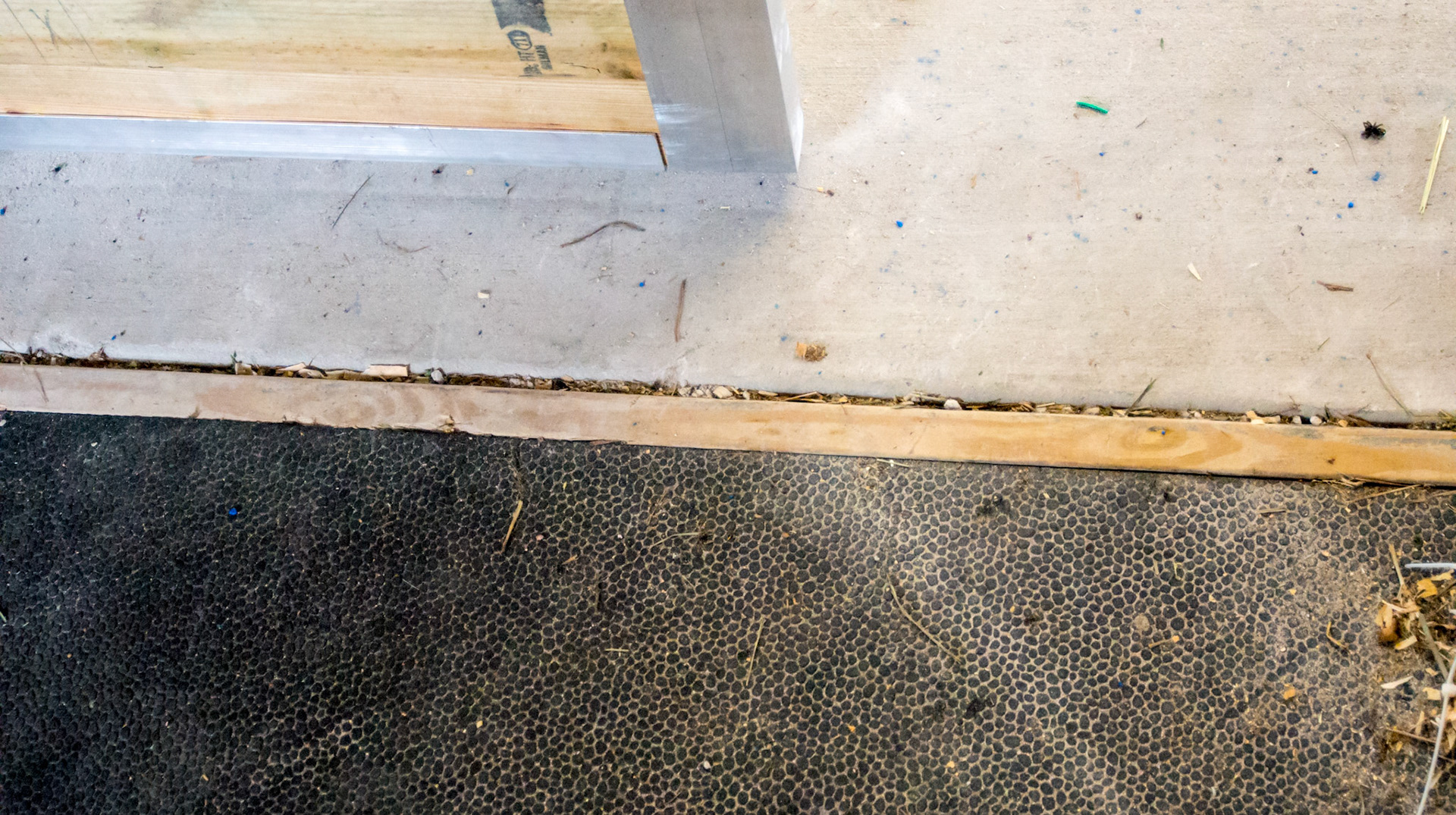

Metal trim in a brand new barn in Loxahatchee, FL - poured concrete and inlaid rubber stall mats

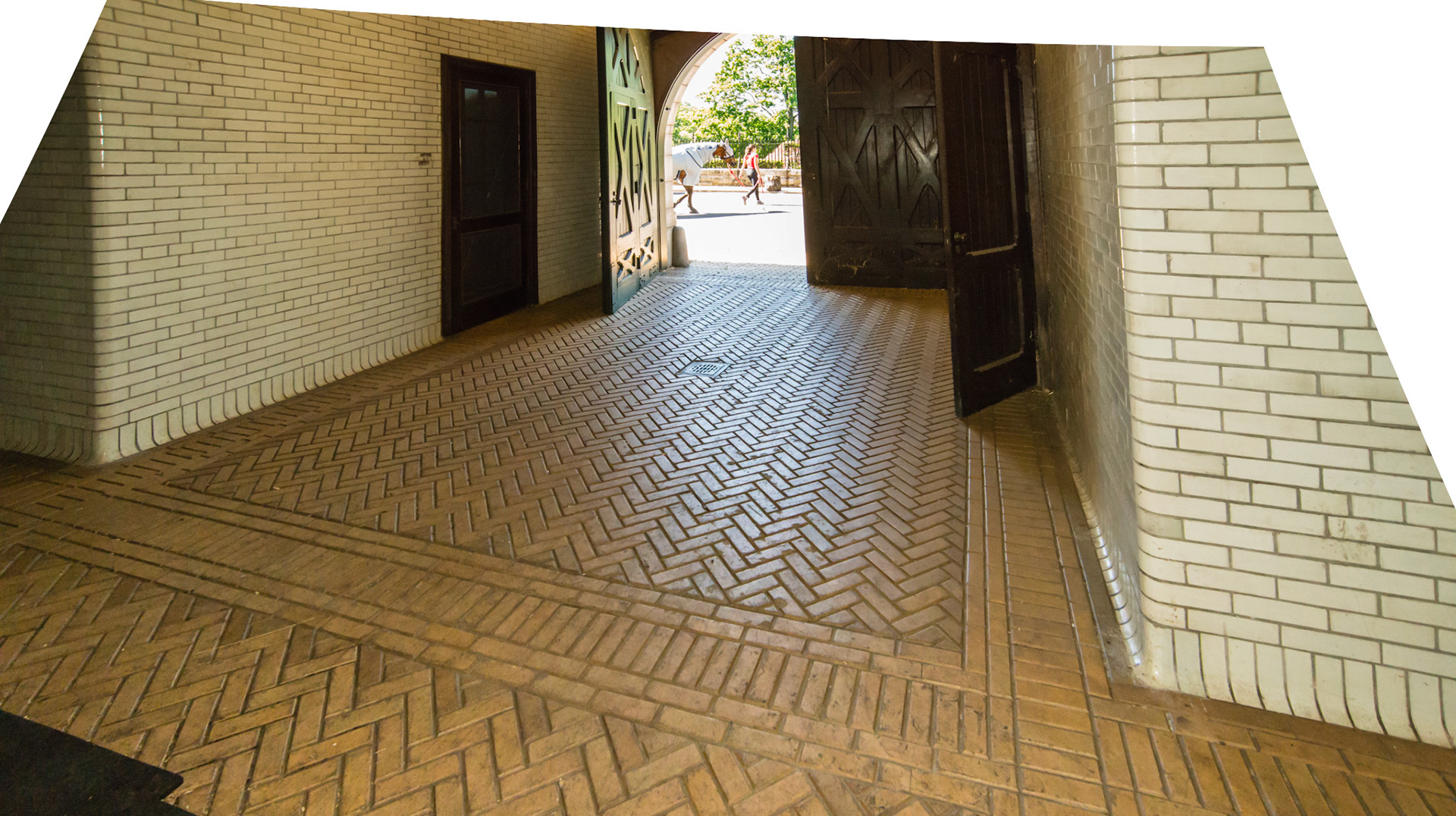

The flooring throughout the barn - A famous barn in CT that was built in the 1940's by the same archetect used in the building of Grand Central Station in NYC.

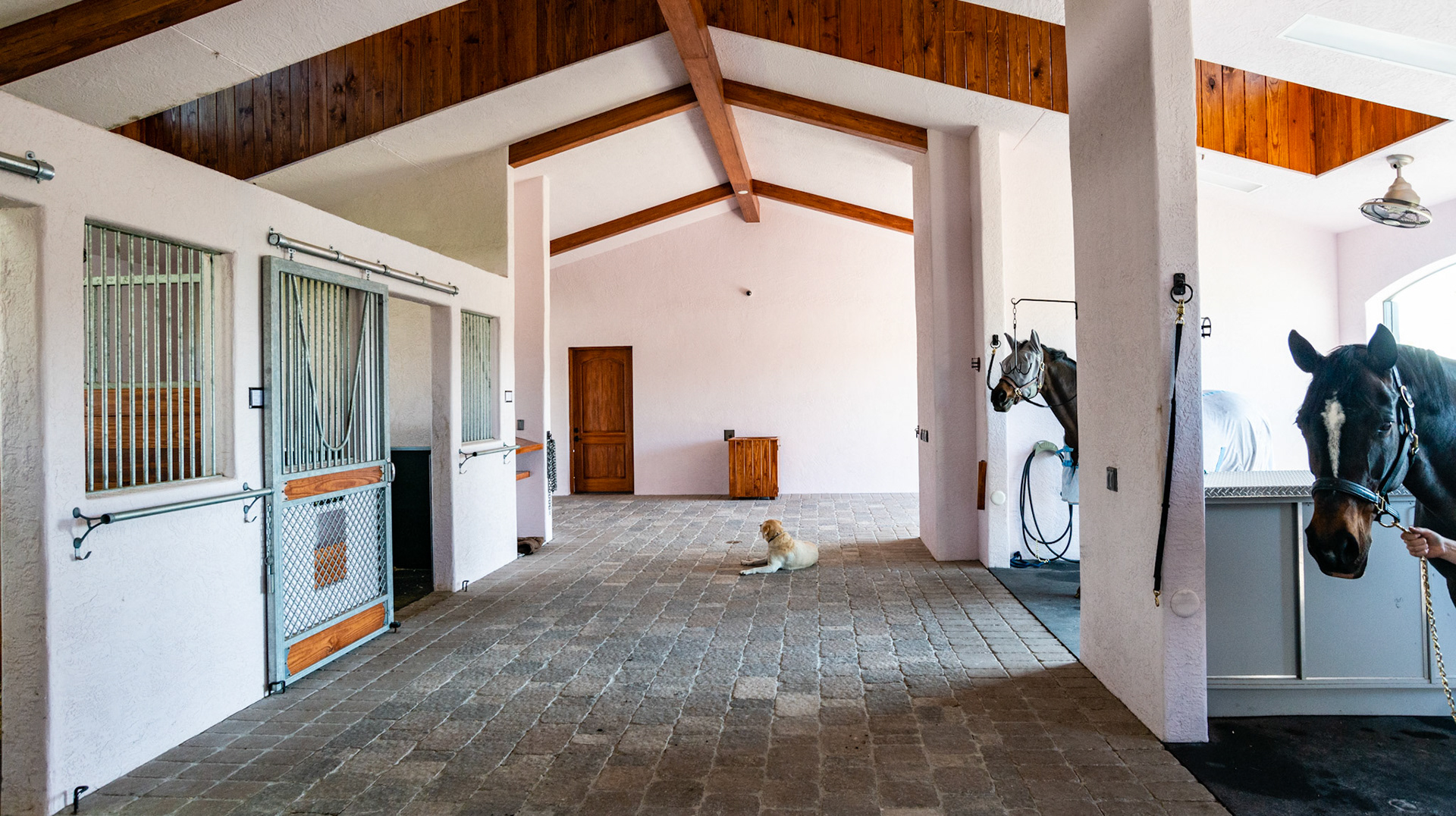

Stall interior with stone flooring and a stucco ceiling.

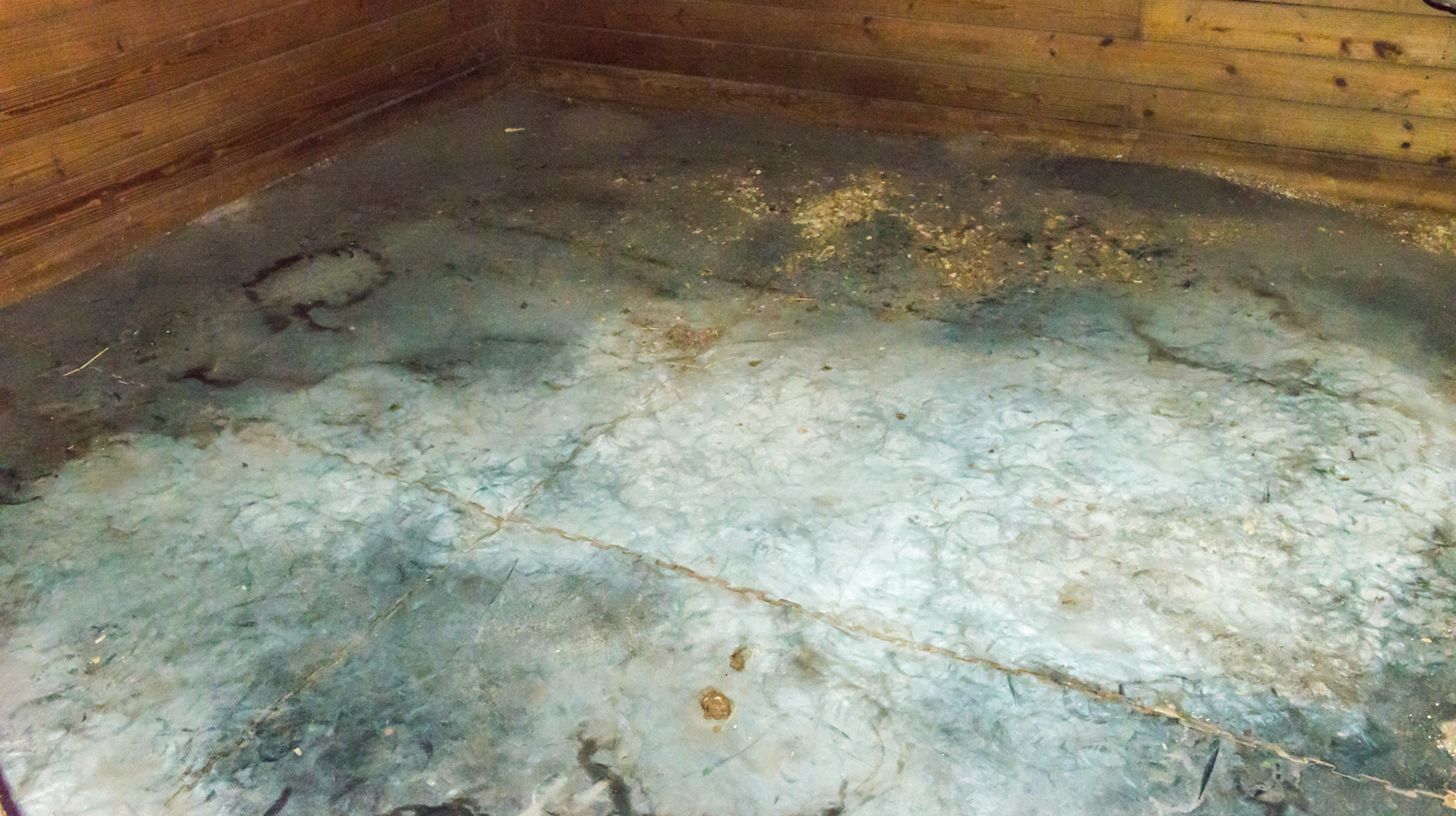

Rubber mats cover the stall floor. This is an unused stall where the urine salts and lime have crusted the rubber mat flooring.
Rubber brick flooring and a finished stained wood ceiling.

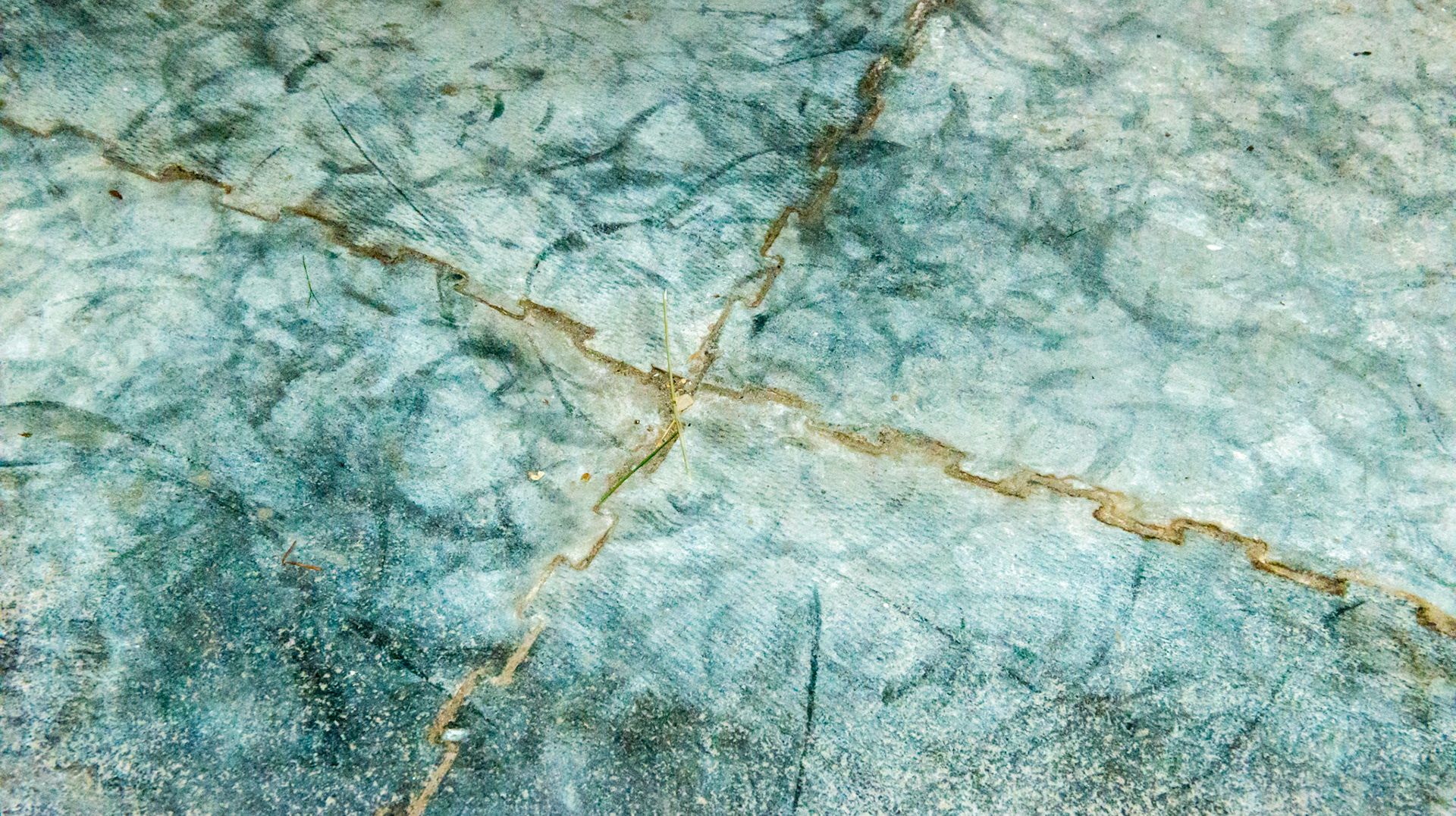

Rubber mats cover the stall floor and are interlocking

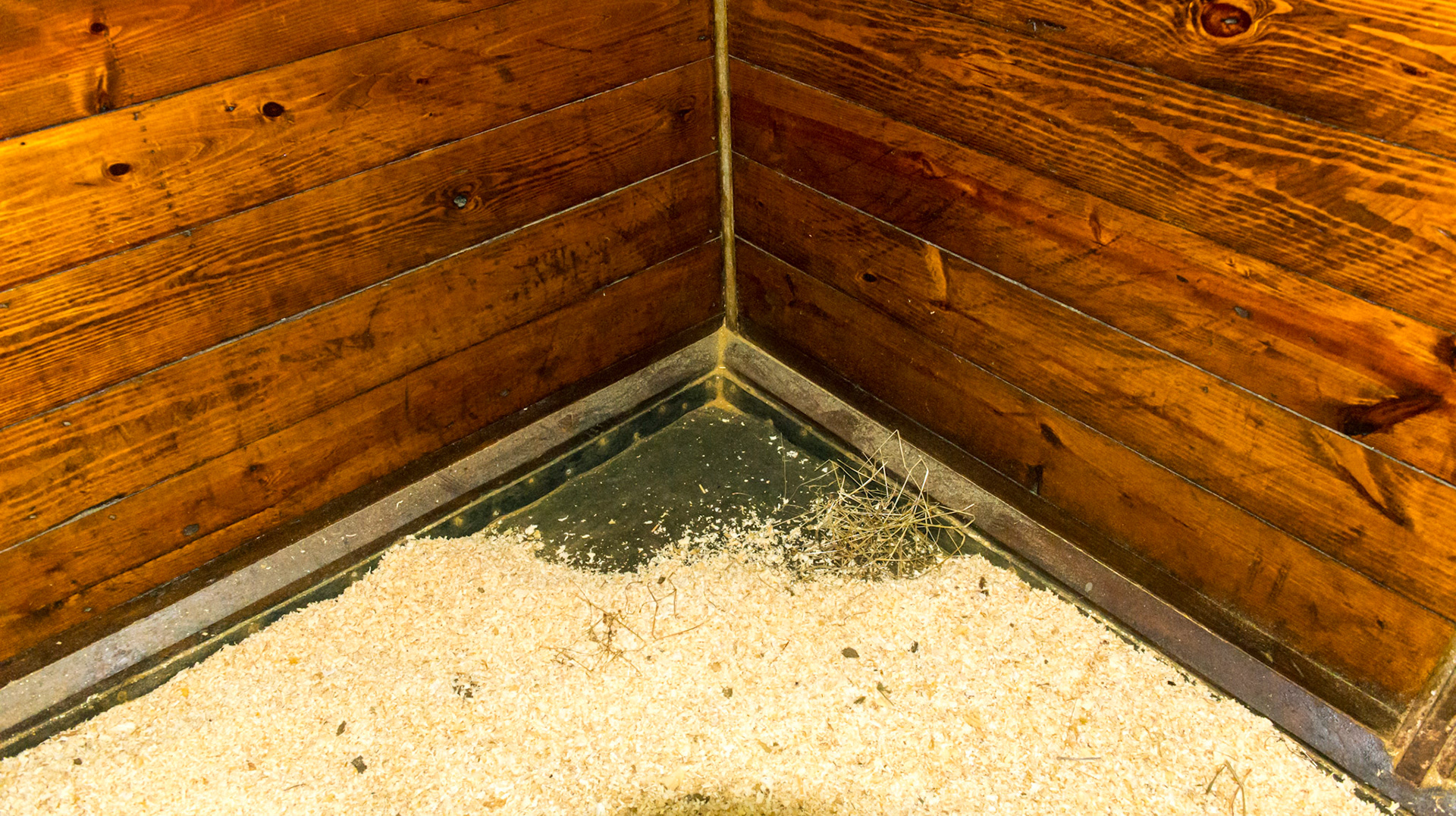

Stall floor is sealed in a rubber flooring material.

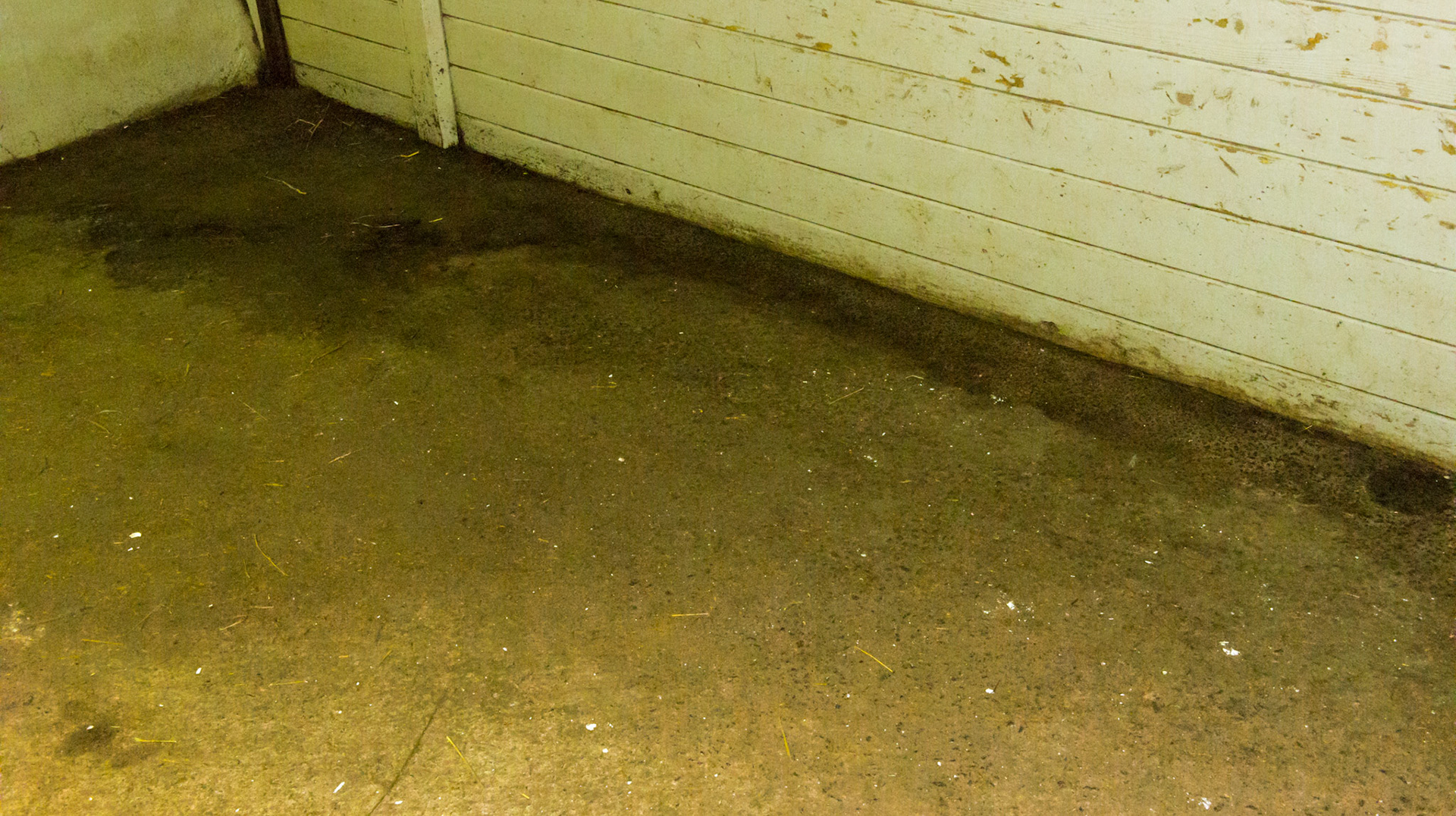

This farm uses asphalt for a stall floor which is actually a perfect stall floor because of good hoof traction, it is softer than you think when covered with deep straw, and very easy to clean. Cleaning it thoroughly every day is essential in it working well as a stall floor.

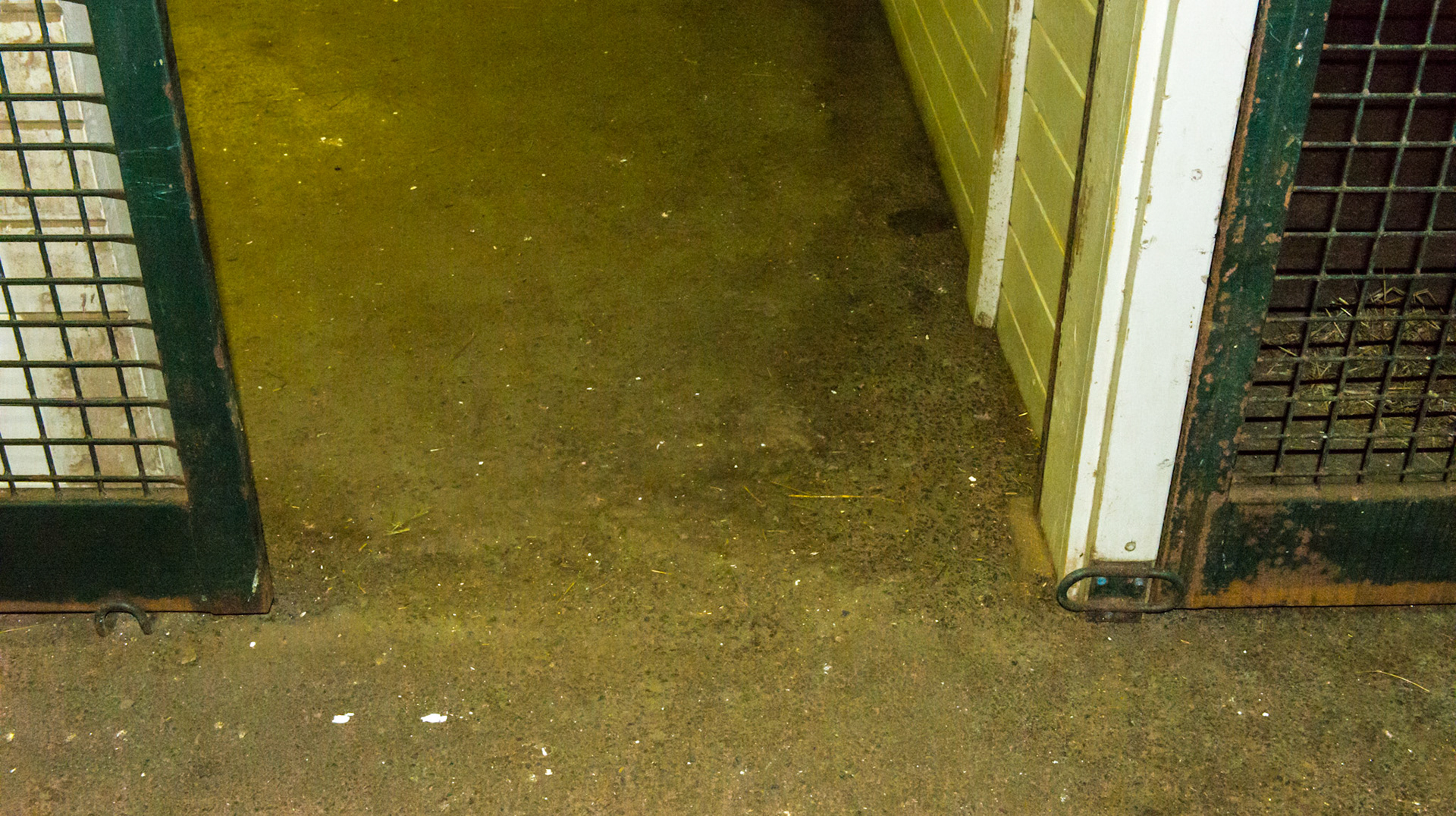

Asphalt flooring with a continuous level between the stall and the aisle.

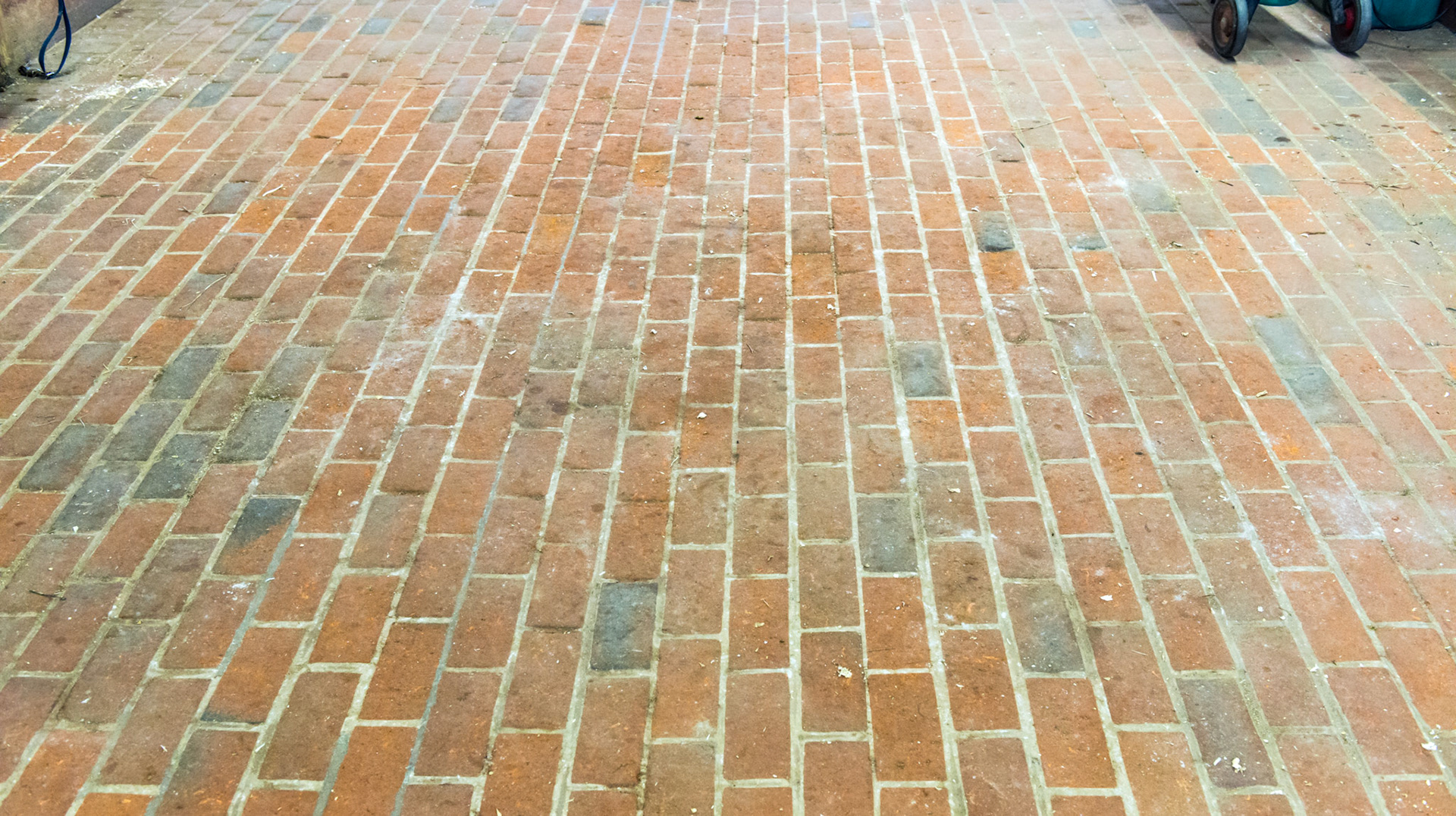

A brick aisle-way in a barn.

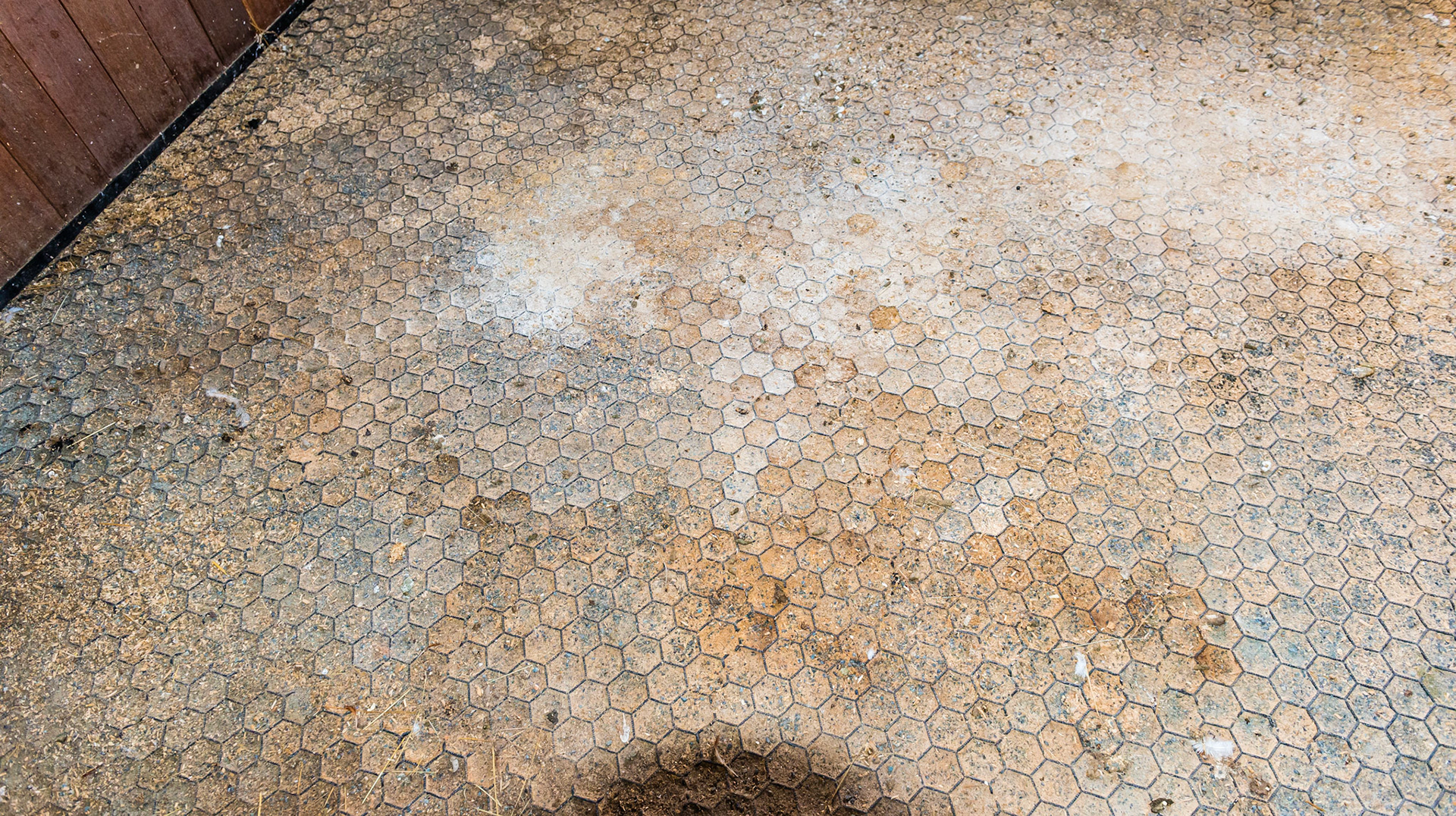

Honeycomb flooring is laid flat on top of a stone dust base and filled with stone dust. This owner hates this flooring because the stone dust is replaced with bedding that can't be removed without picking out each hole. This leaves uring soaked bedding. Her solution is to cover the honeycomb with rubber mats.

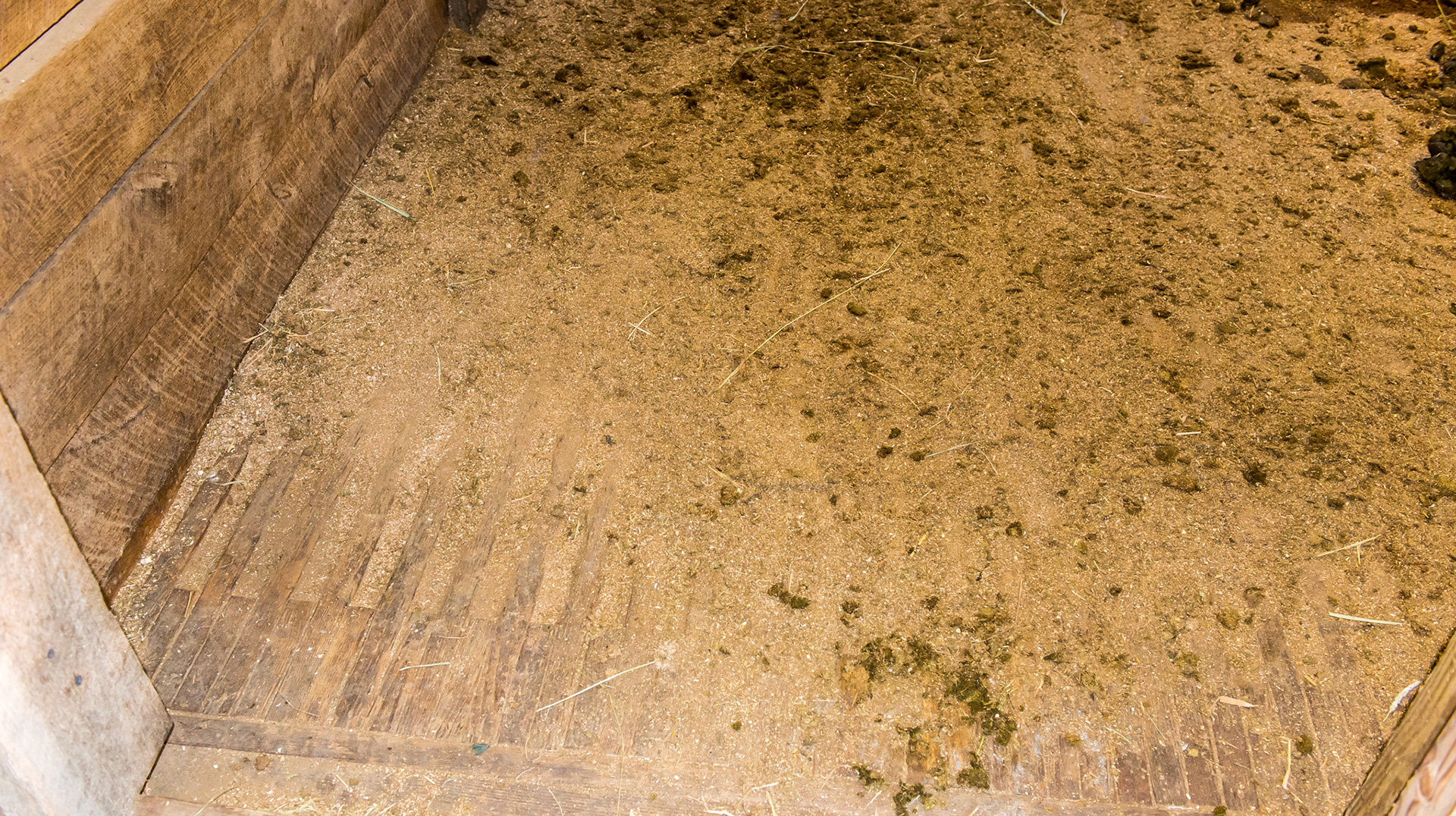

This stall floor is made of 2x6's on end. At the stall door you can see the spacers made of 2x6's on end for about 6 inches. The gap is filled with bedding material. I was unable to determine if there was stone dust between the boards with only a top layer of bedding or if there was some other strategy.

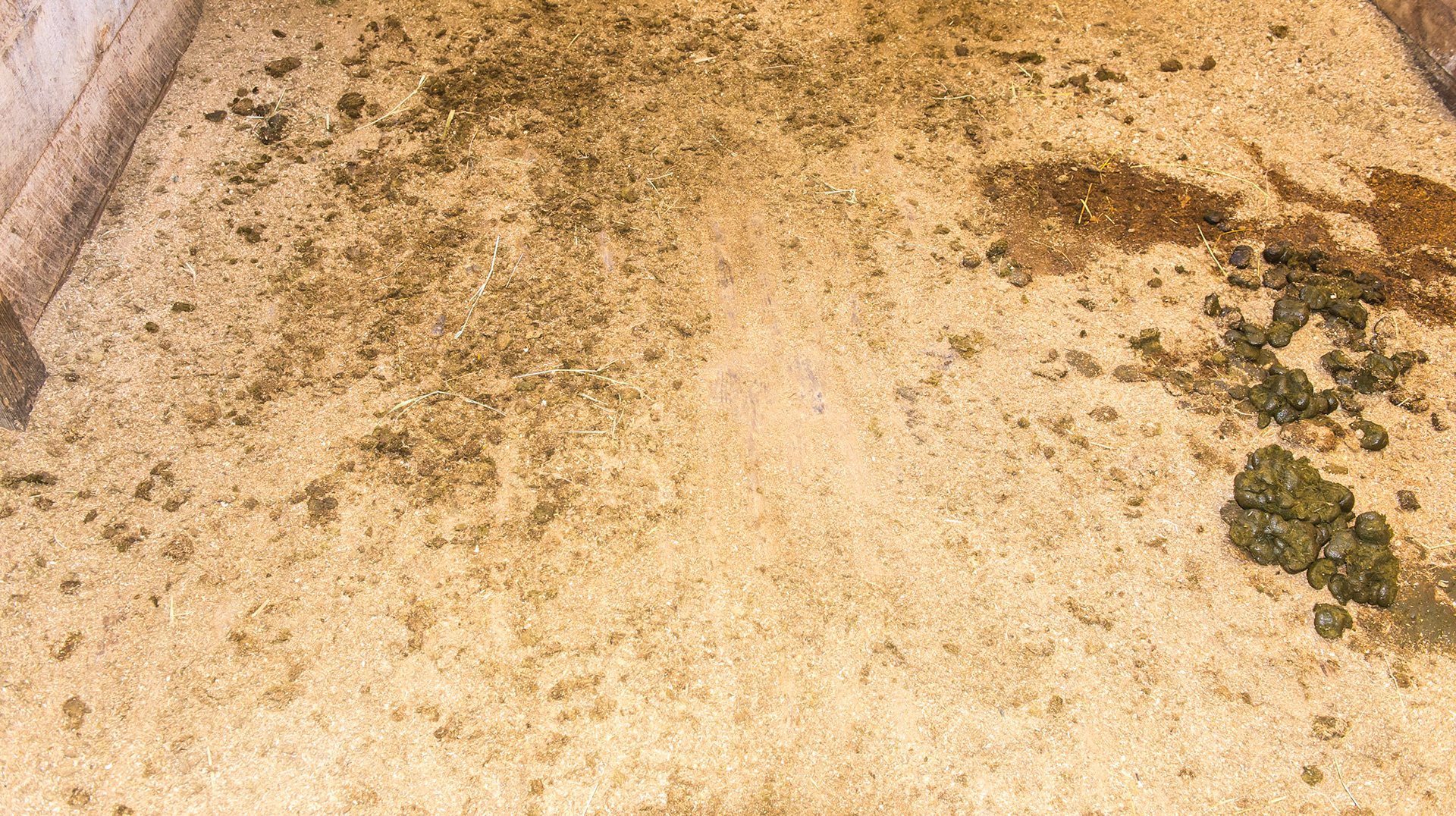

This stall floor is made of 2x6's on end. It is hard to see here, but 1) there is a central 4 inch section of wood running perpendicular to the 2x6's across the stall dividing the floor into 2 sections and 2) the top edge of the boards have become worn with soft edges. The bedding looks dirty but there was no urine odor detected. I like wood flooring because it is soft yet firm for the horse to stand on, but I dislike how slippery they are and how urine gets trapped below the boards. This arrangement seems to be a solution to both of these problems.

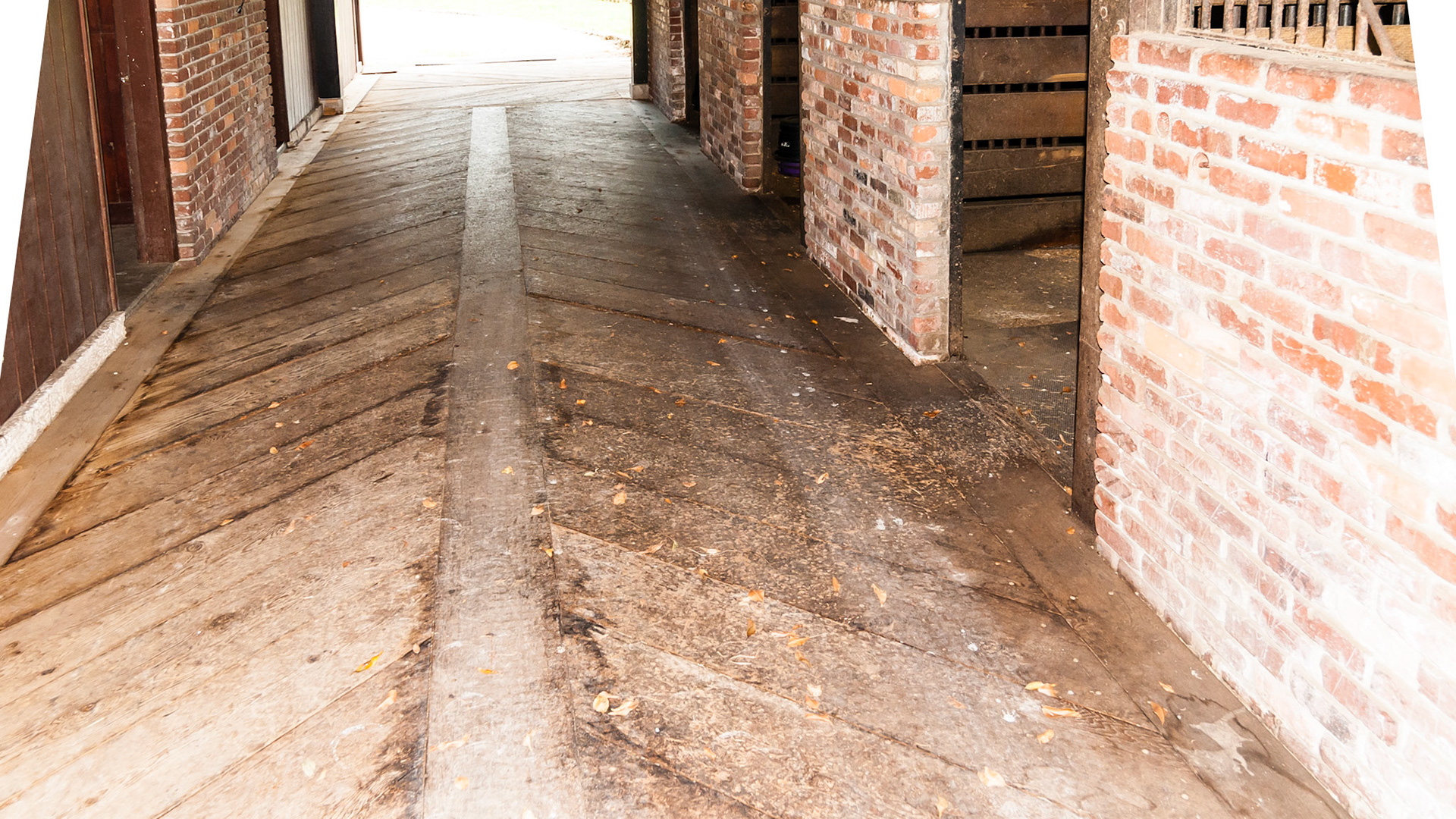

A wood floor in a herringbone pattern. These floors can become very slippery.

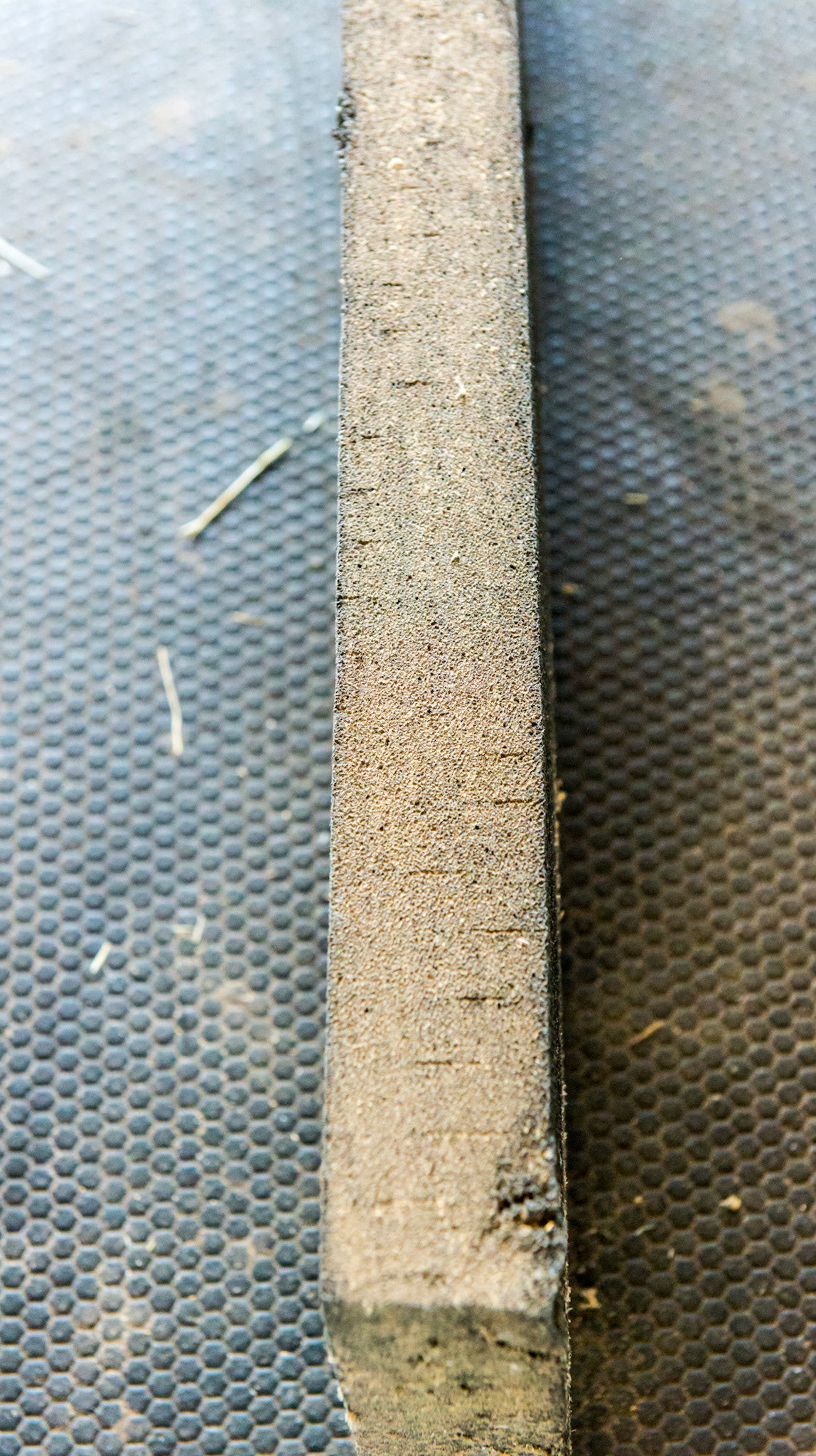

A cross section of the rubber flooring showing the thickness.

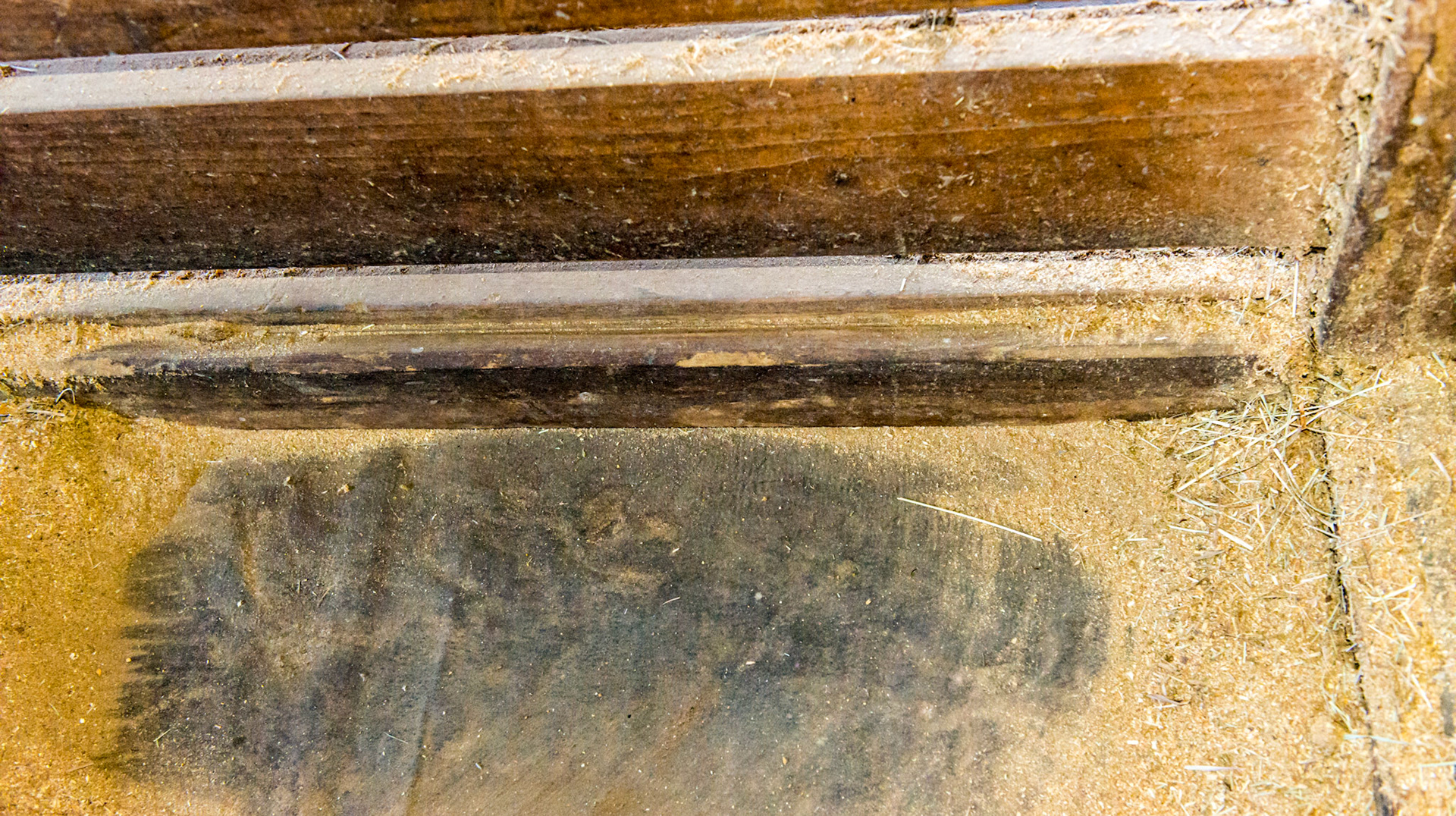

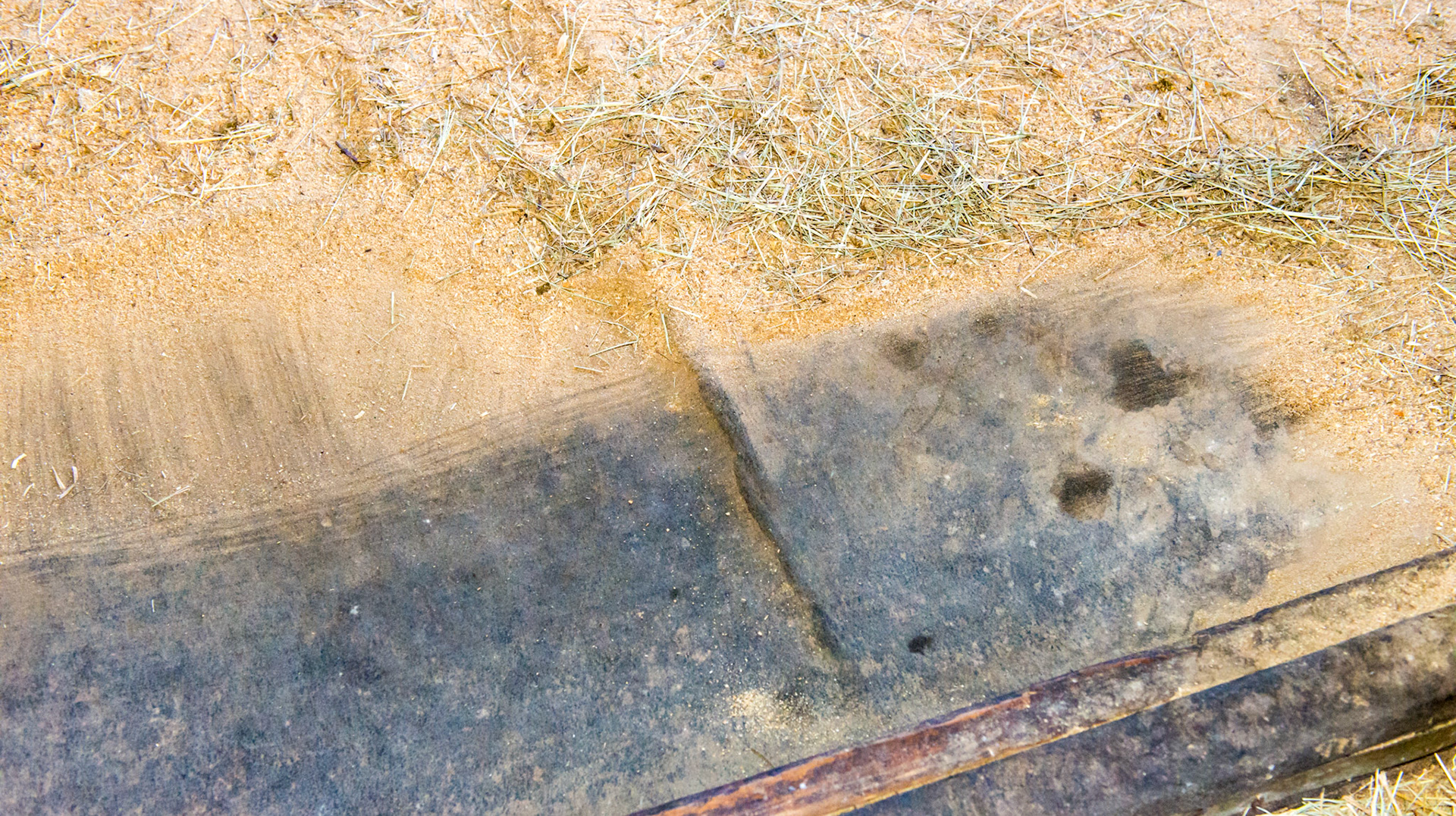

This solid rubberized fabric covers the entire floor of the stall making cleaning easy while not allowing waste to penetrate the ground below.
This solid rubberized fabric covers the entire floor of the stall making cleaning easy while not allowing waste to penetrate the ground below.
This solid rubberized fabric covers the entire floor of the stall making cleaning easy while not allowing waste to penetrate the ground below.

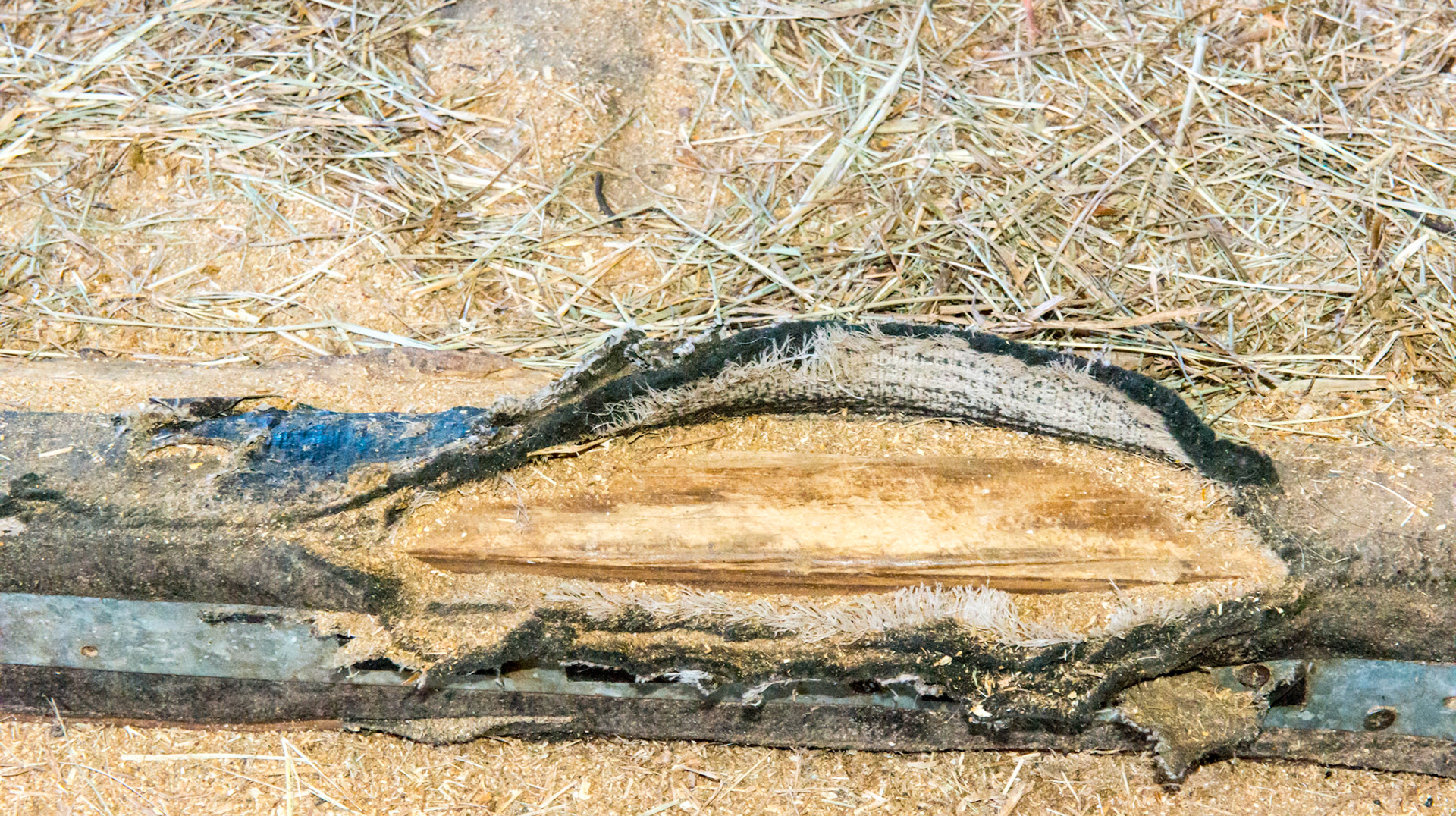

This solid rubberized fabric covers the entire floor of the stall making cleaning easy while not allowing waste to penetrate the ground below. The edges can become worn and fray.
