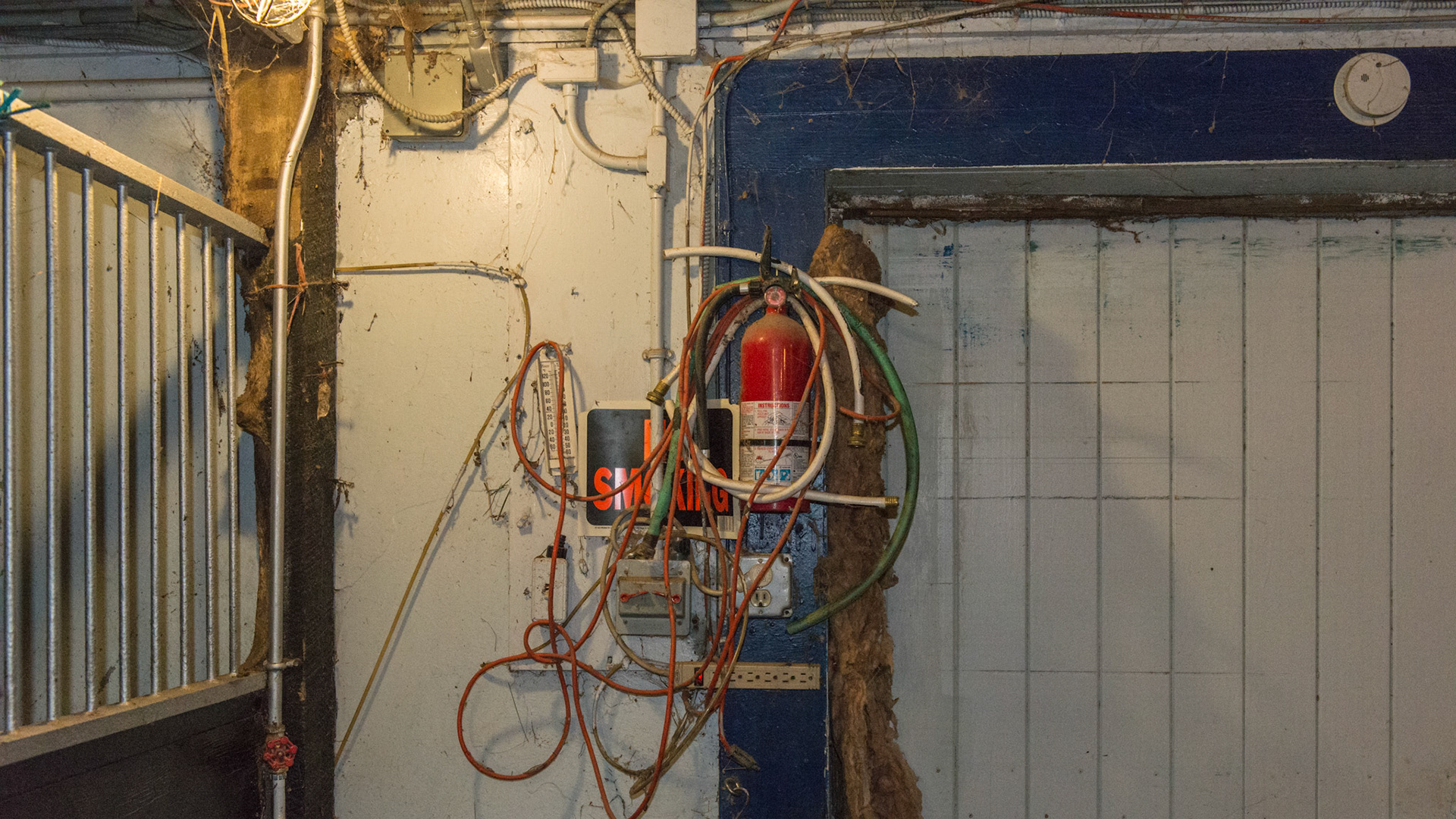

Located at the end of the barn aisle and next to the large barn doors was this. A fire extinguisher with access obstructed, a no smoking sign not visible, extension cords and a power strip, insulation stuffed into the door, I think the fly spray tubing is along the wall, and just plain filthy.

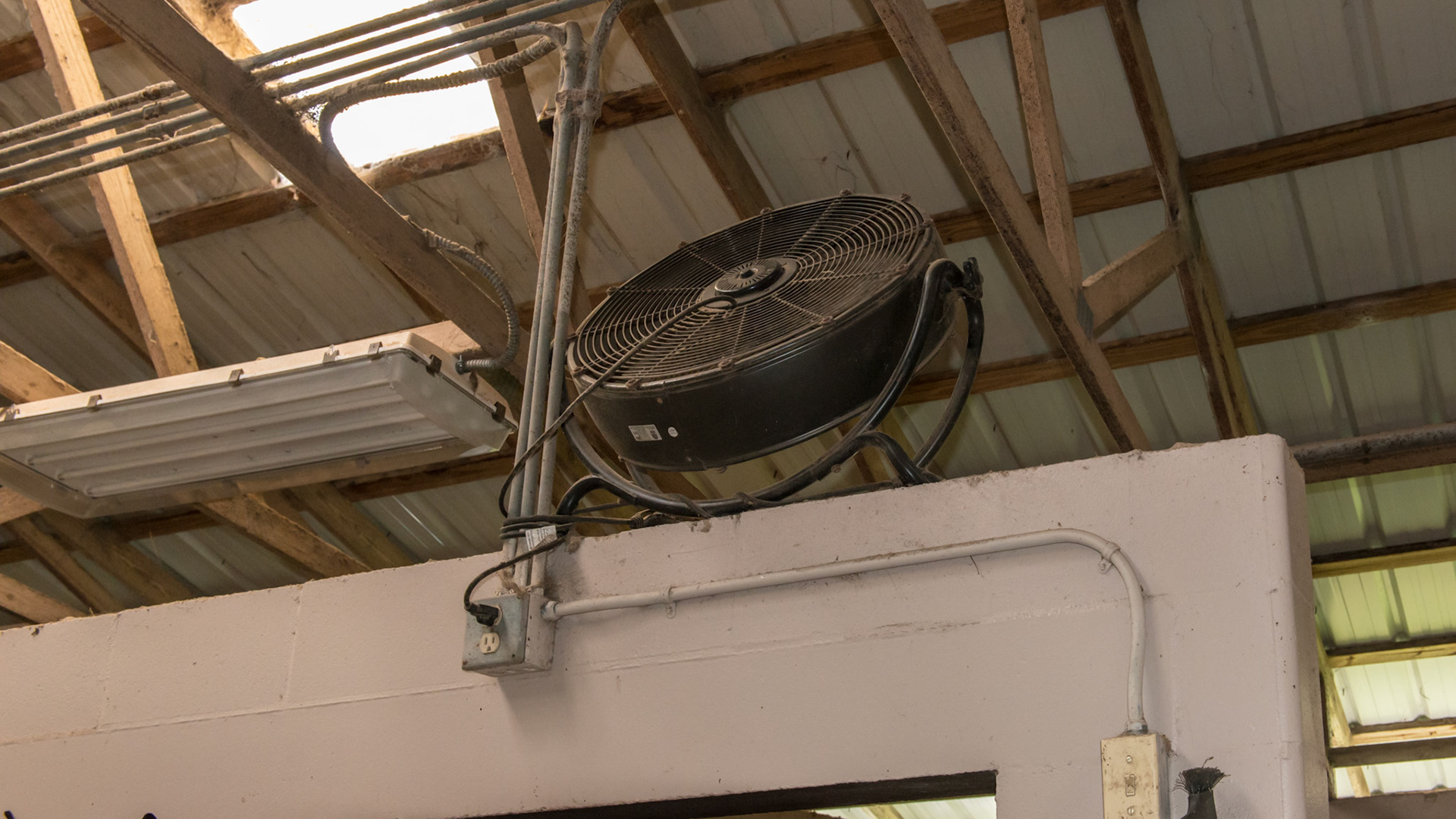

This ceiling view of the electric conduit shows an outlet positioned over the front stall wall directly between 2 stalls for the addition of electric fans.

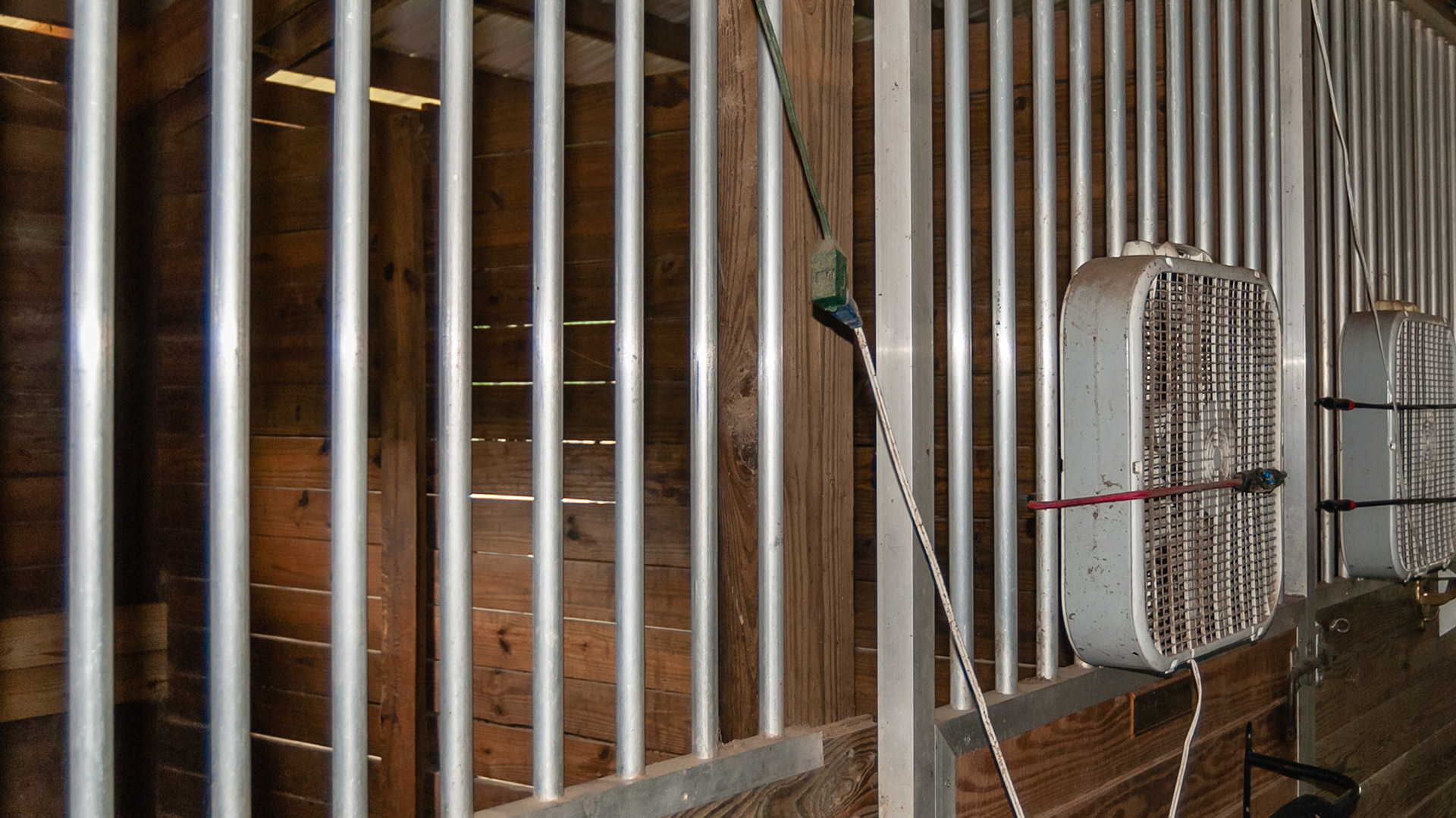

Extension cords add resistance which can build up heat. In some cases a horse can chew on exposed wires.

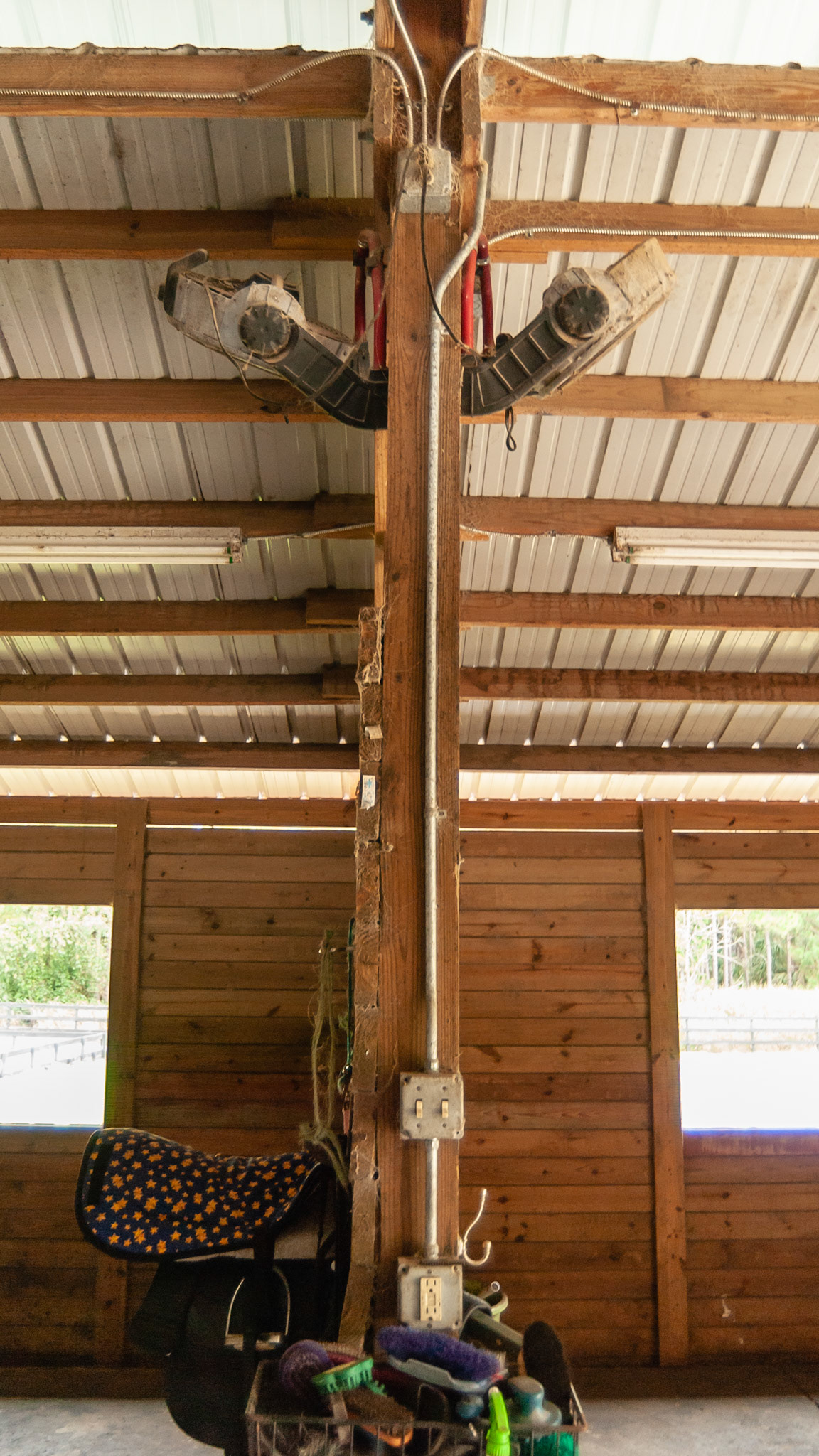

Proper installation of fans operated by the switch below
The proper installation of electricituy in a barn. Fire detectors and a sprinkler system installed for fire prevention
The use of extension cords adds a risk for fire because the length can add friction which is heat especially if the load on the cord is great. The nail in the top board is OK because this is a storage stall.

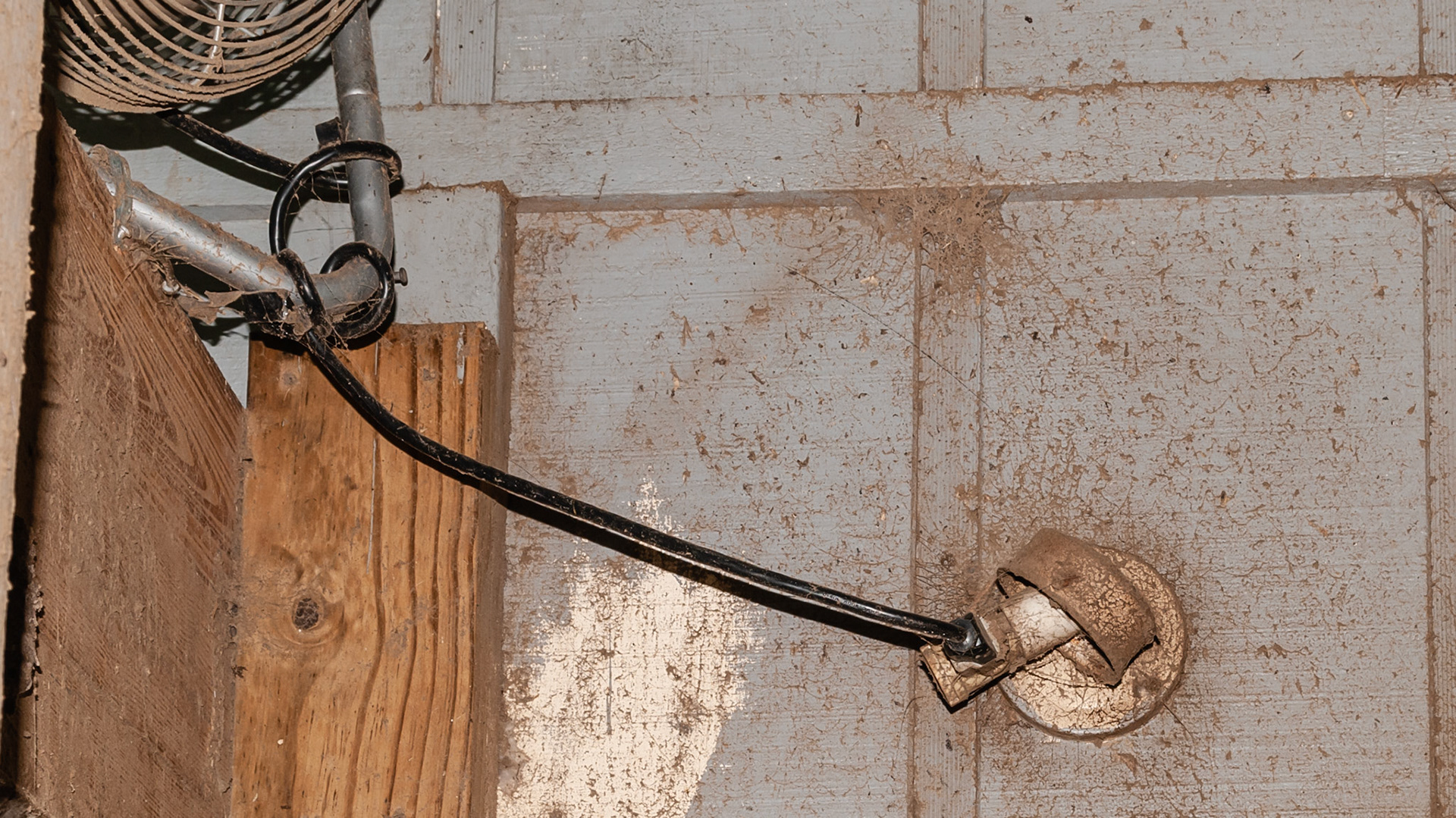

This is technically not good

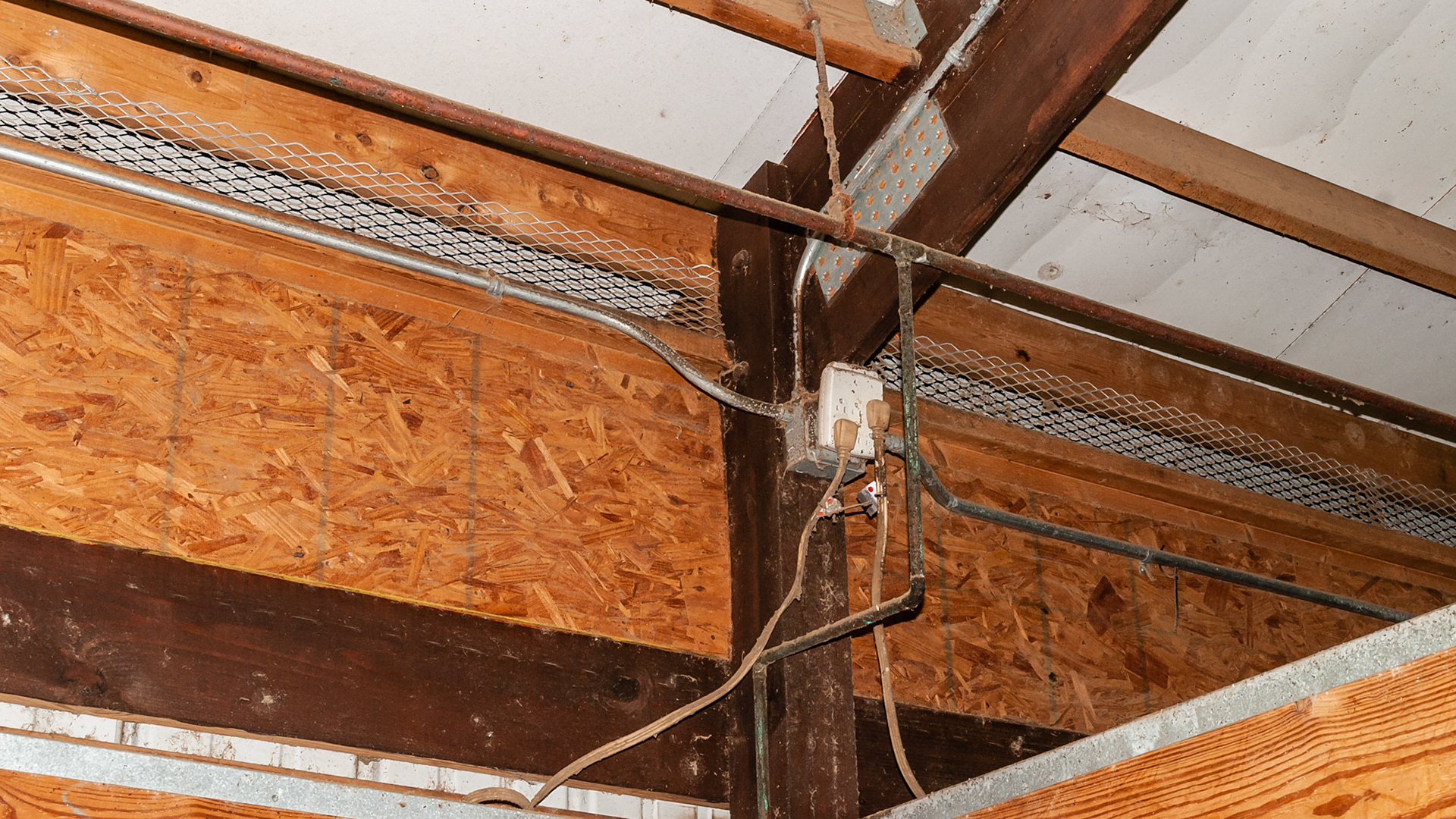

The safety of the proper installation of wires is overcome by the addition of an outlet multiplayer and extension cords.

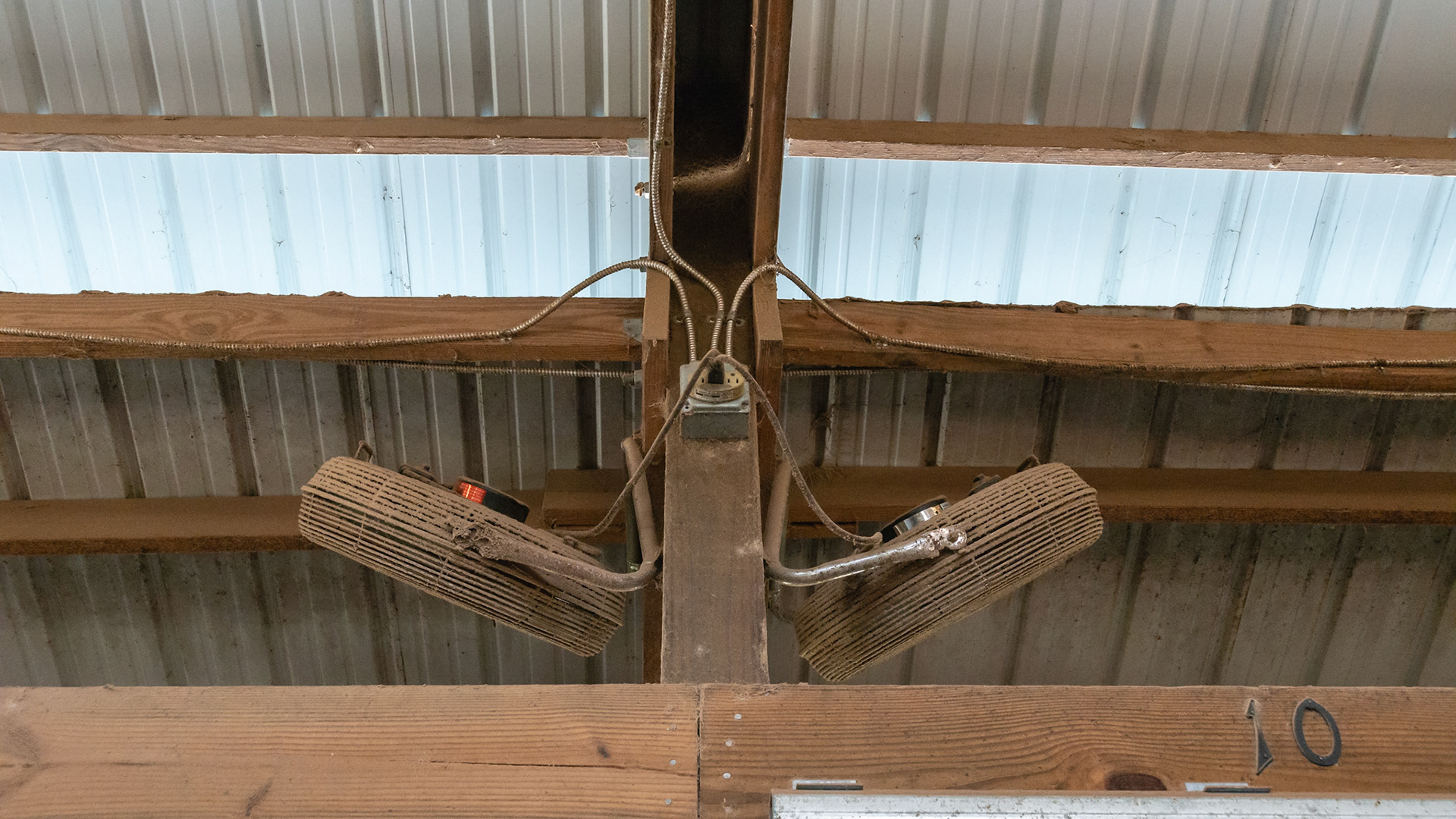

Metal conduit and junctiion box protect the wires from rodent damage. The fans use their short cords. No extensions - all good policy.

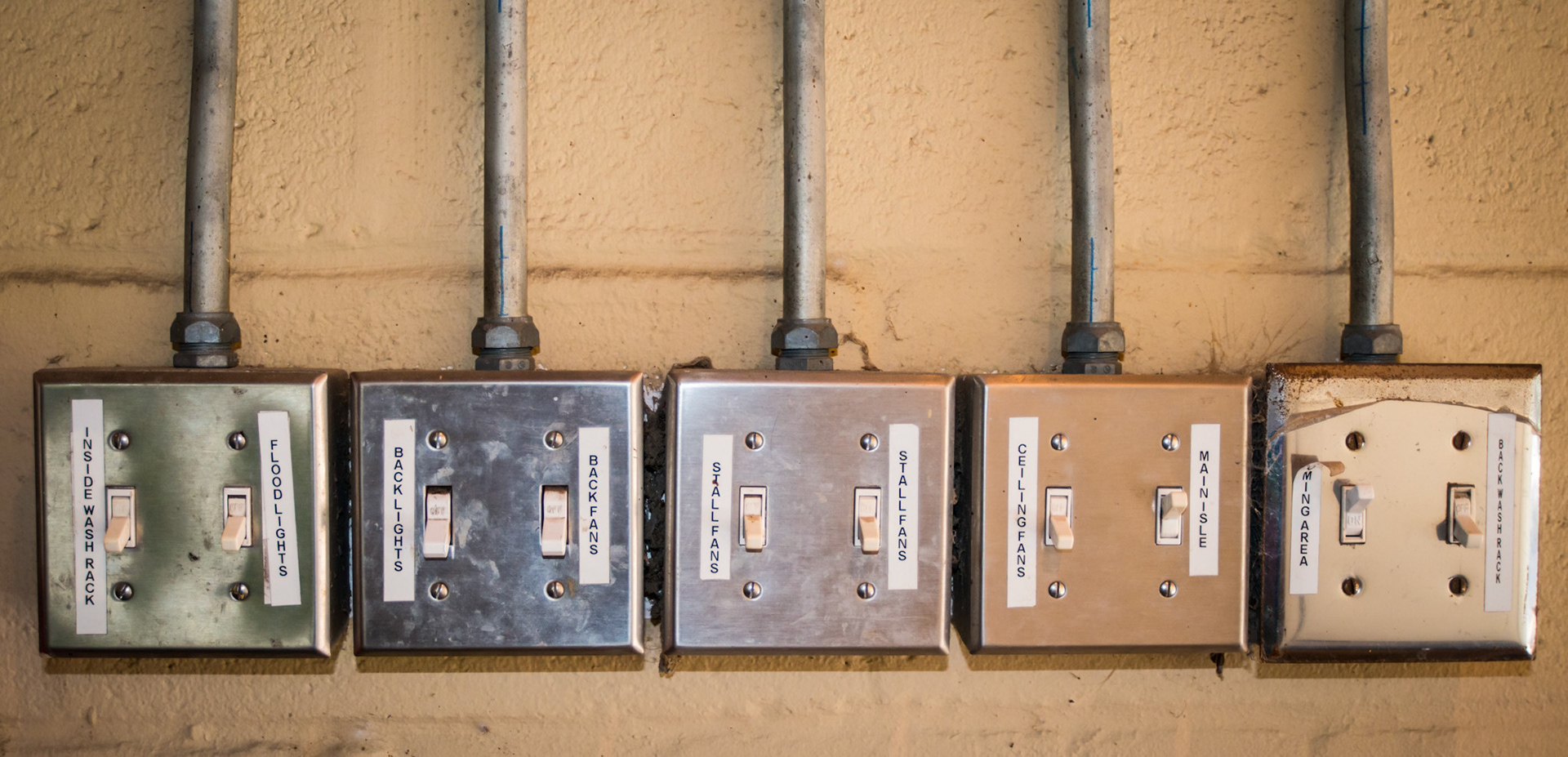

Lighting control in the barn

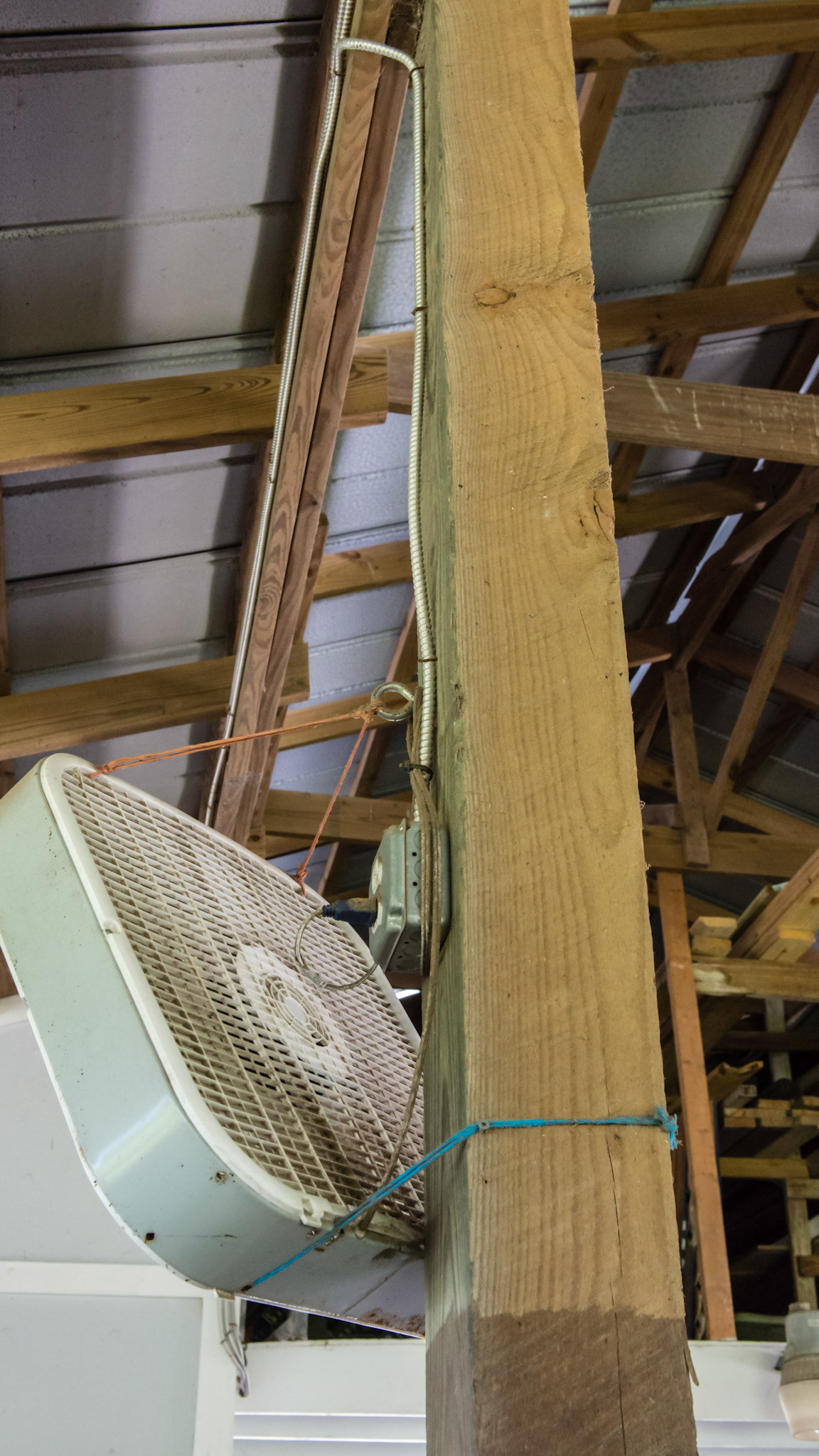

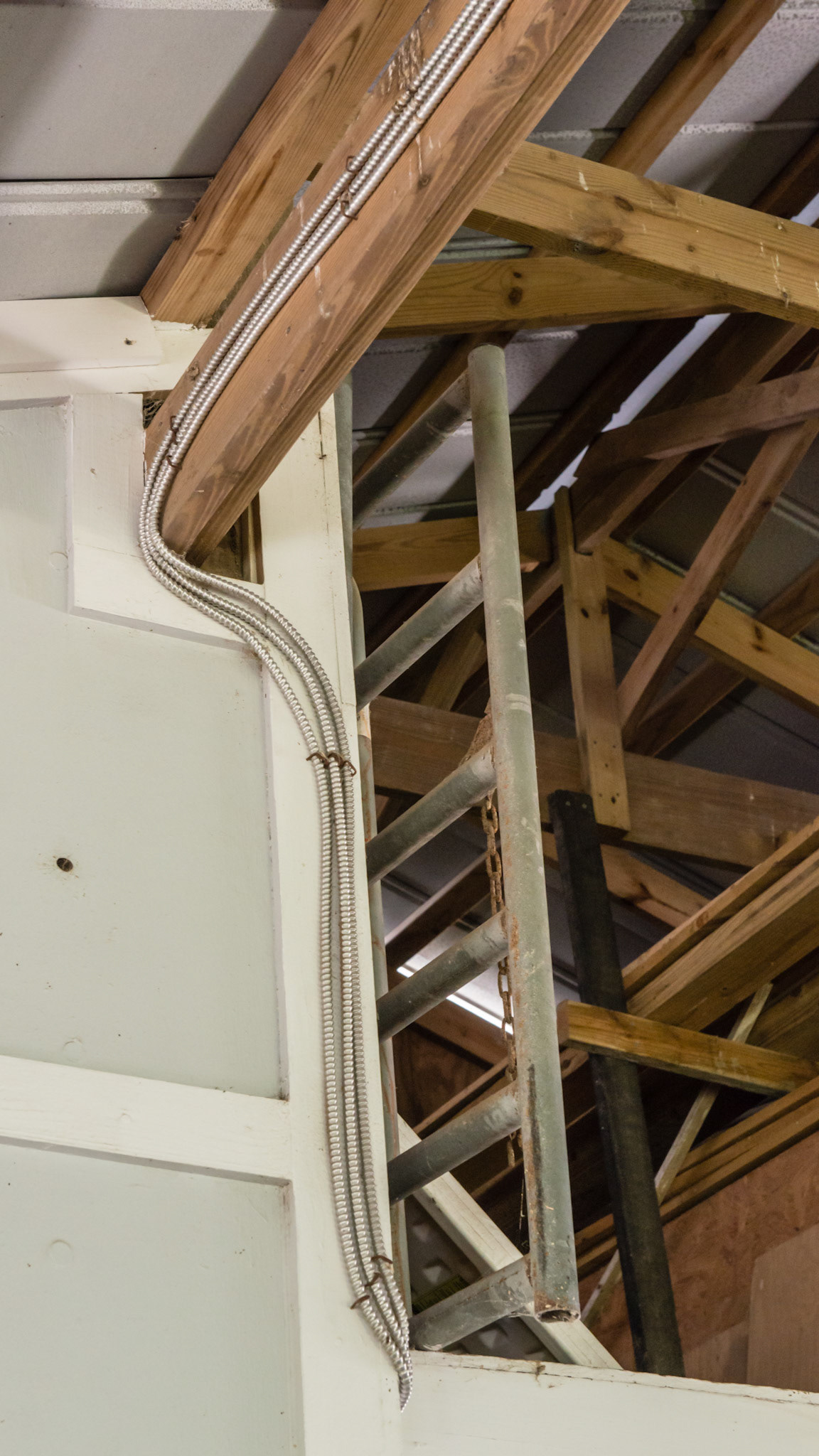

Good wiring up to code
Good wiring up to code

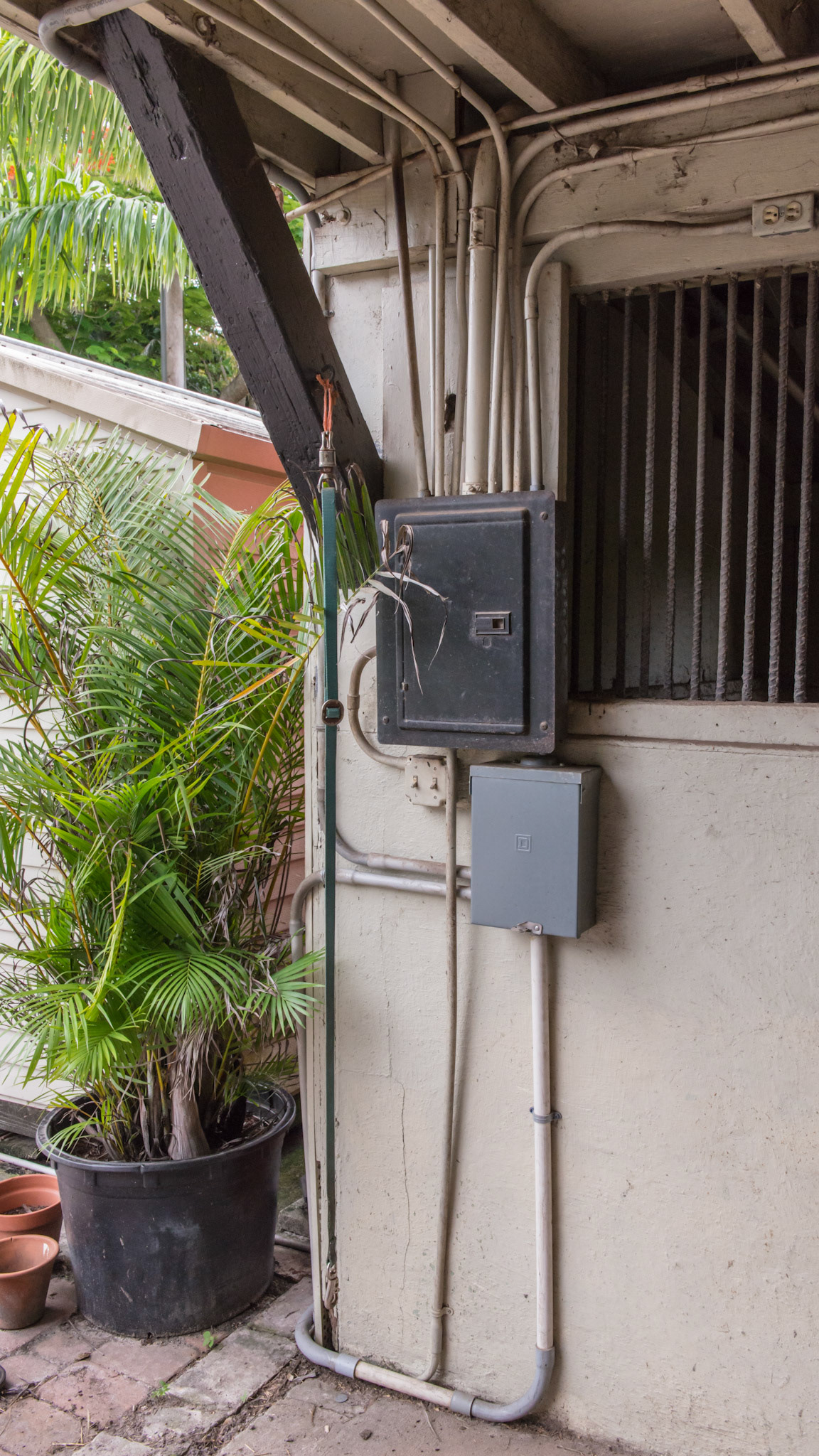

Orderly circuit panel, but in a wet area.

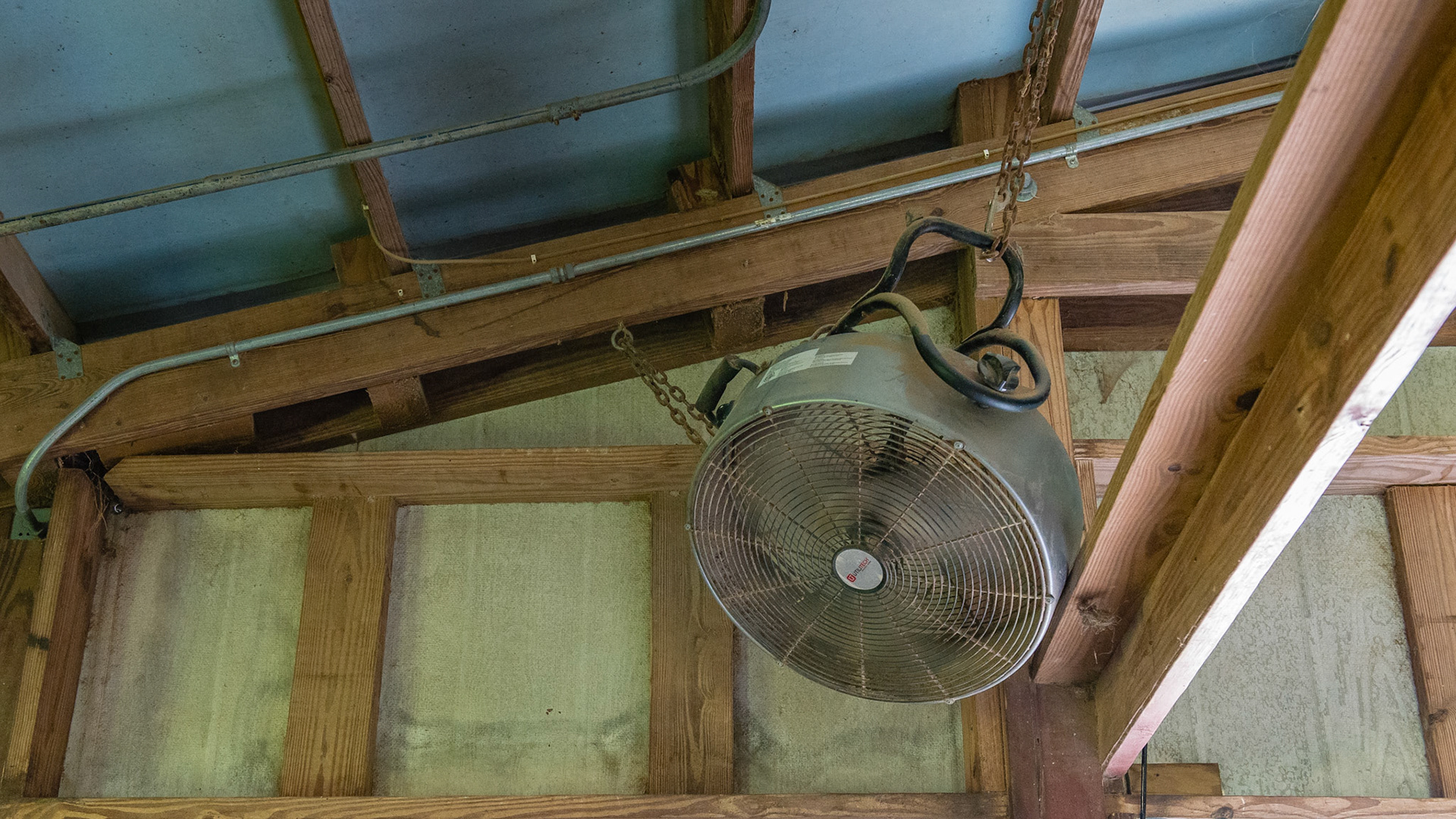

Metal conduit and a robust fan attachment

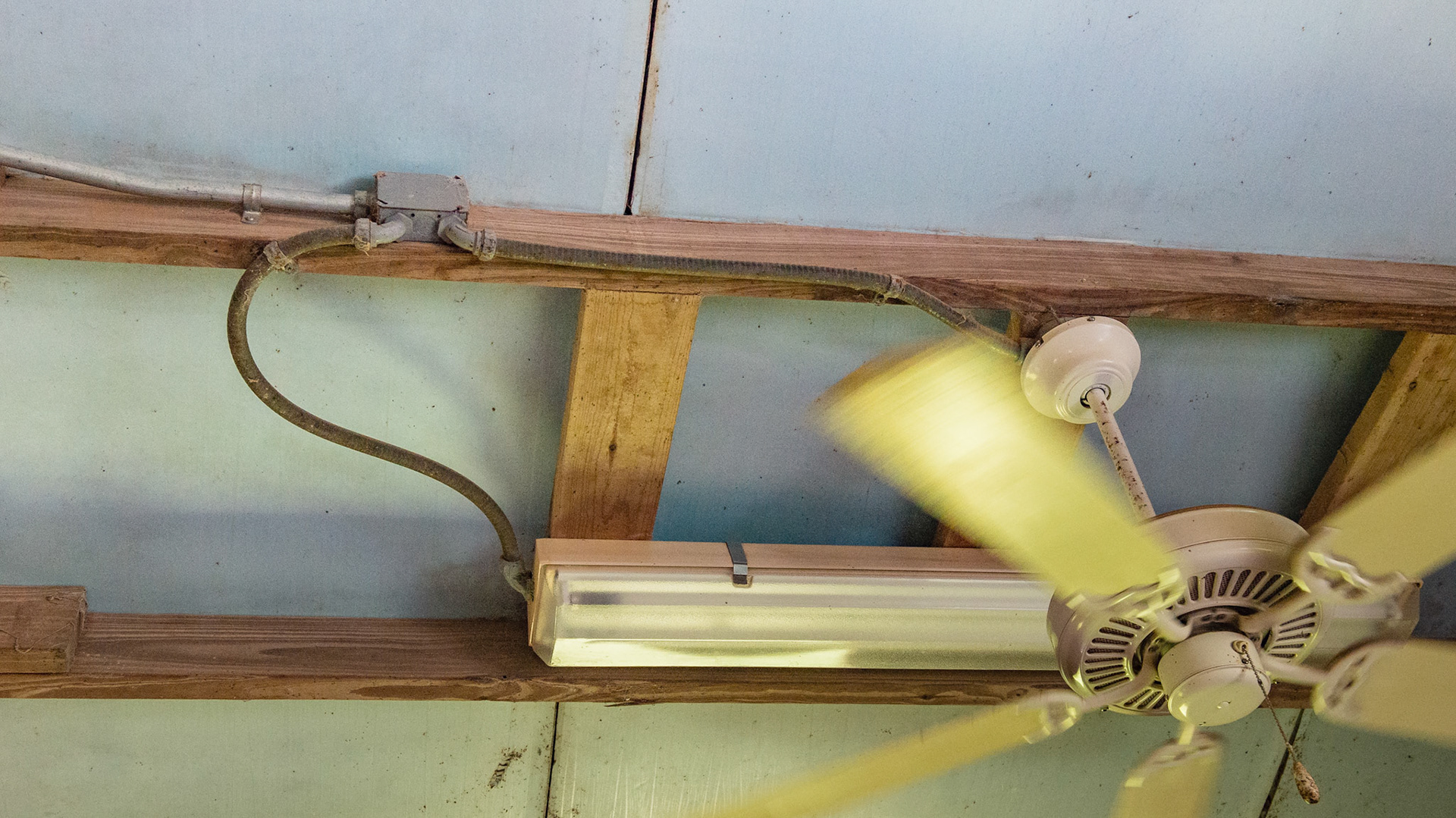

Conduit. The lighting is recessed and high but still in the center of the stall. Ceiling fans are common in Florida.

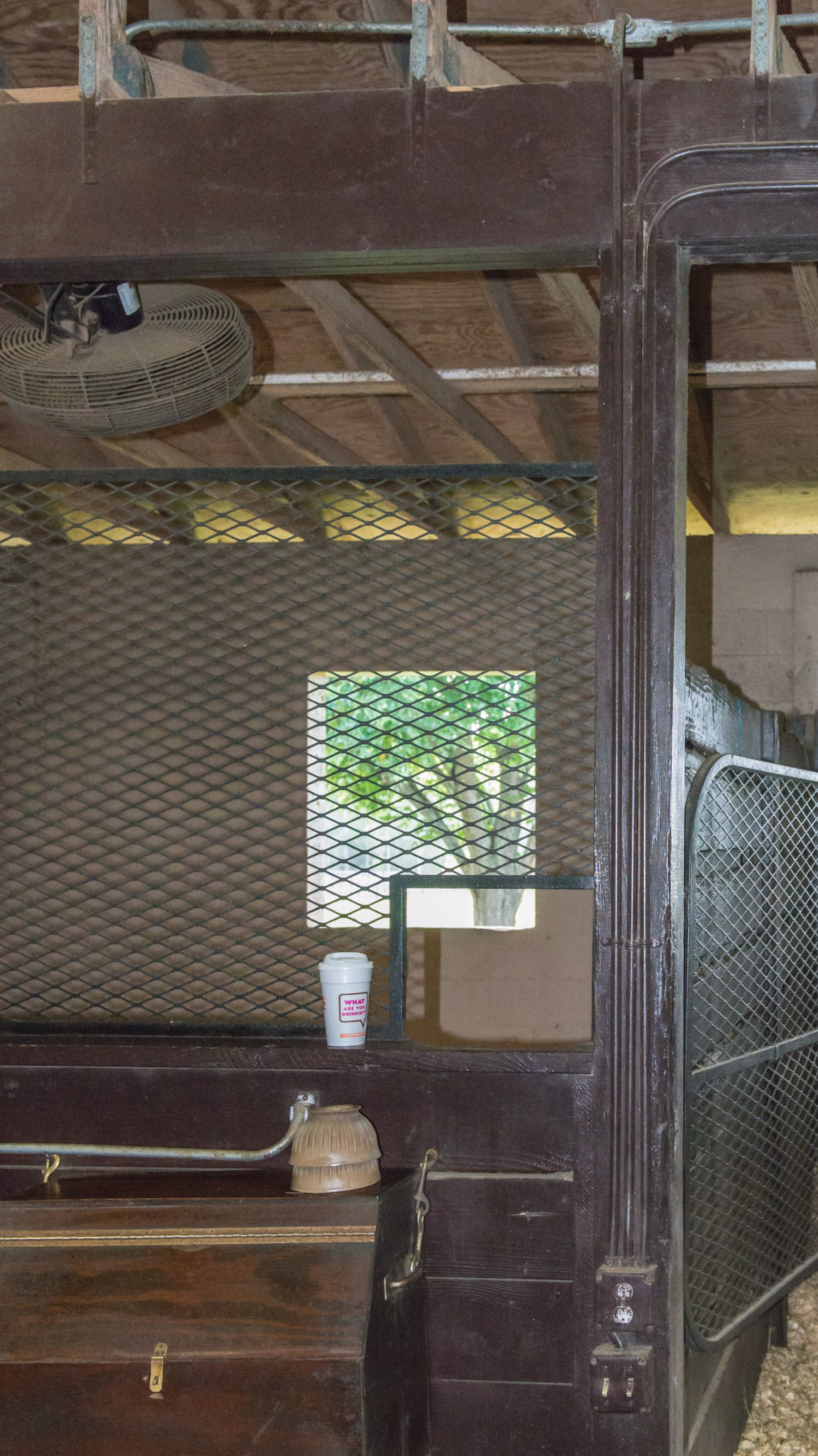

Organized electrical conduits. The outlets and light switches are low below the horse's ability to reach them.
Very modern LED lights have twice the power of the mercury vapor lights they replaced. The cost was $2500 for this barn but the operating cost is much less according to the owner. And they are silent. Electrical installation is to code.

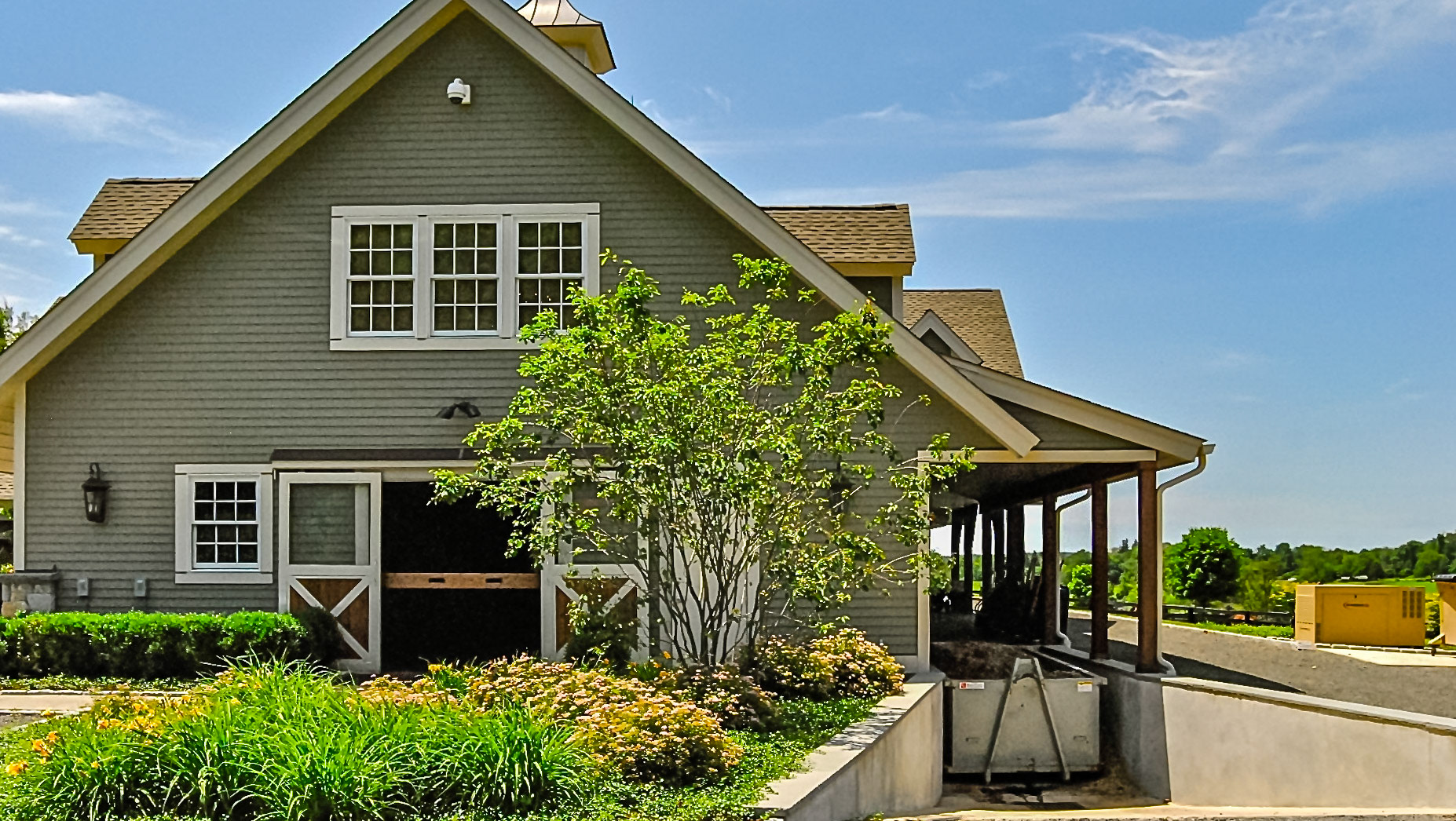

Security cameras mounted cleanly in high places. Backup emergency generator sets away from the barn. This roll off container sets at ground level.

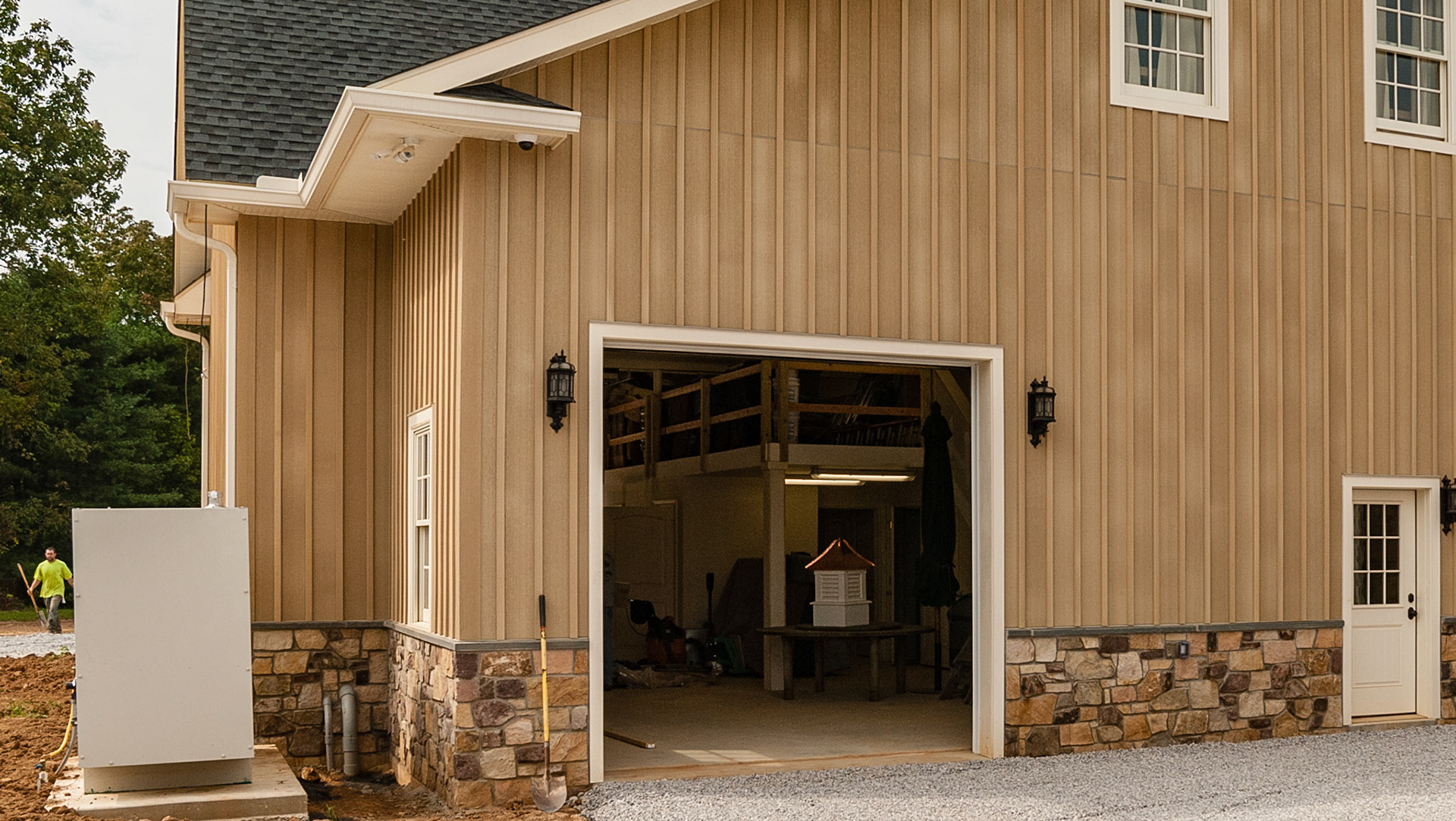

Security cameras mounted cleanly in high places. Backup emergency generator sets away from the barn.

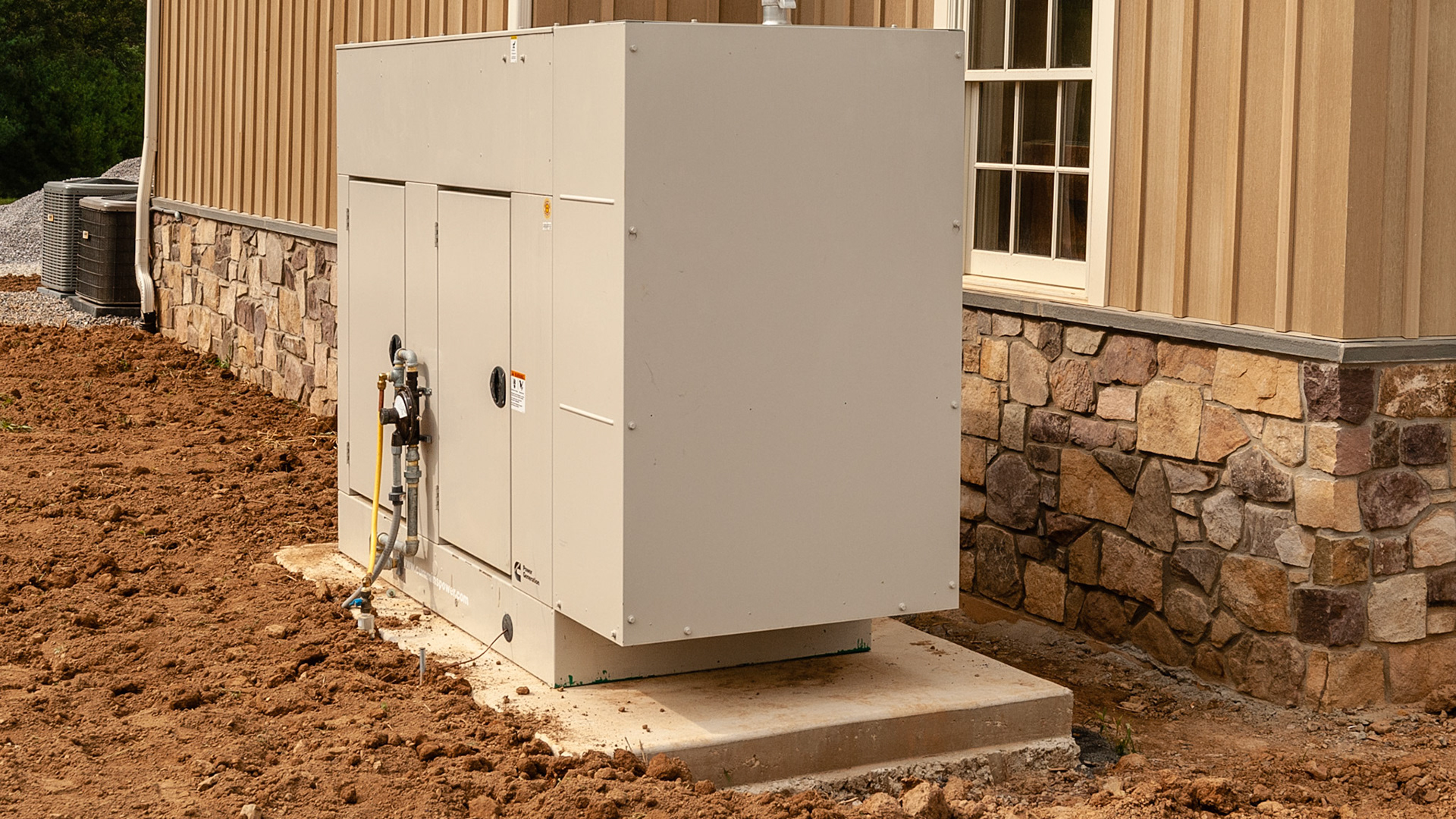

Permanent back up generator outside a barn.
Backup emergency generator sets away from the barn.

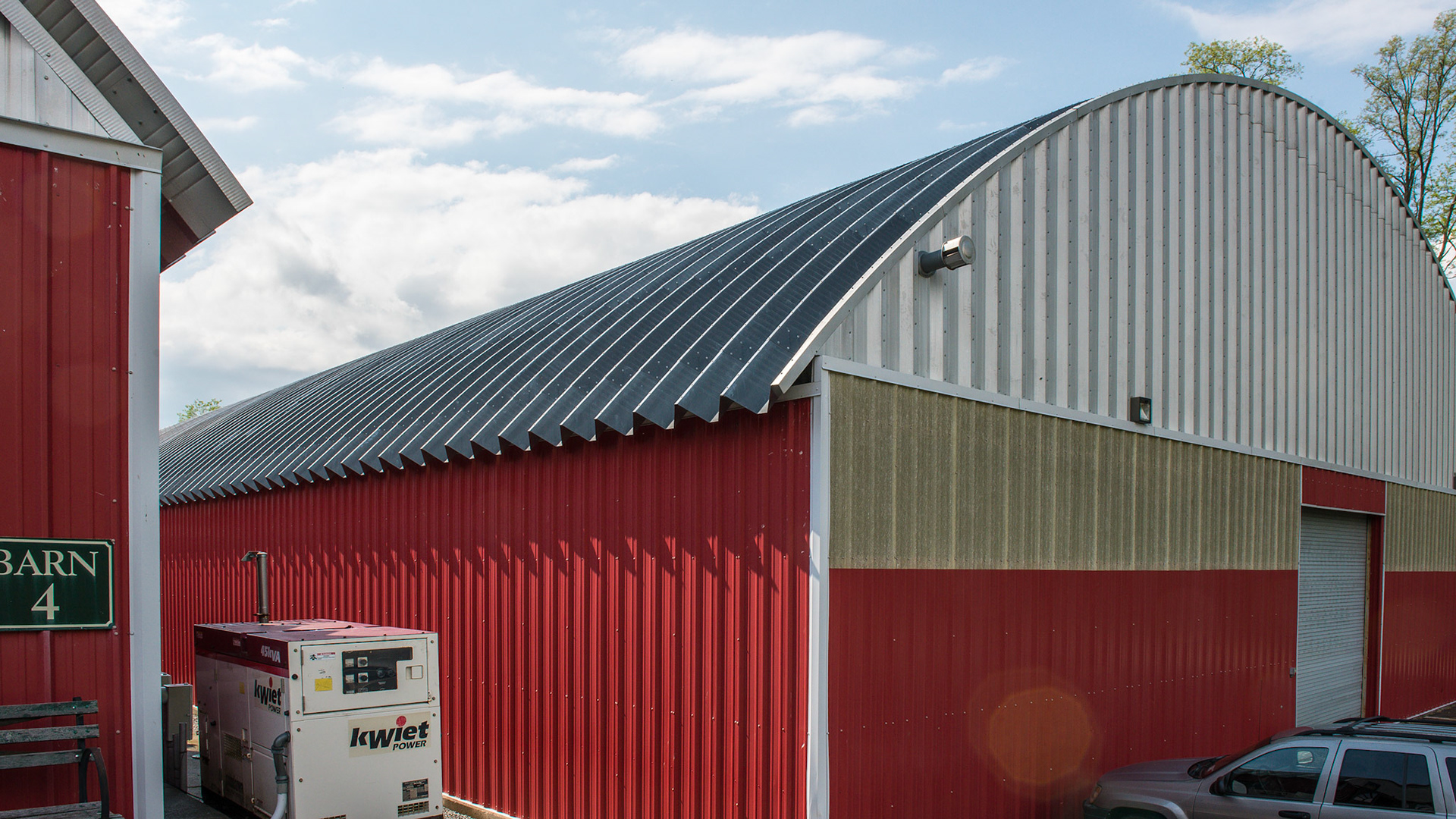

Quonset hut design for the roof of this barn and covered arena. Generator powers the whole barn.
