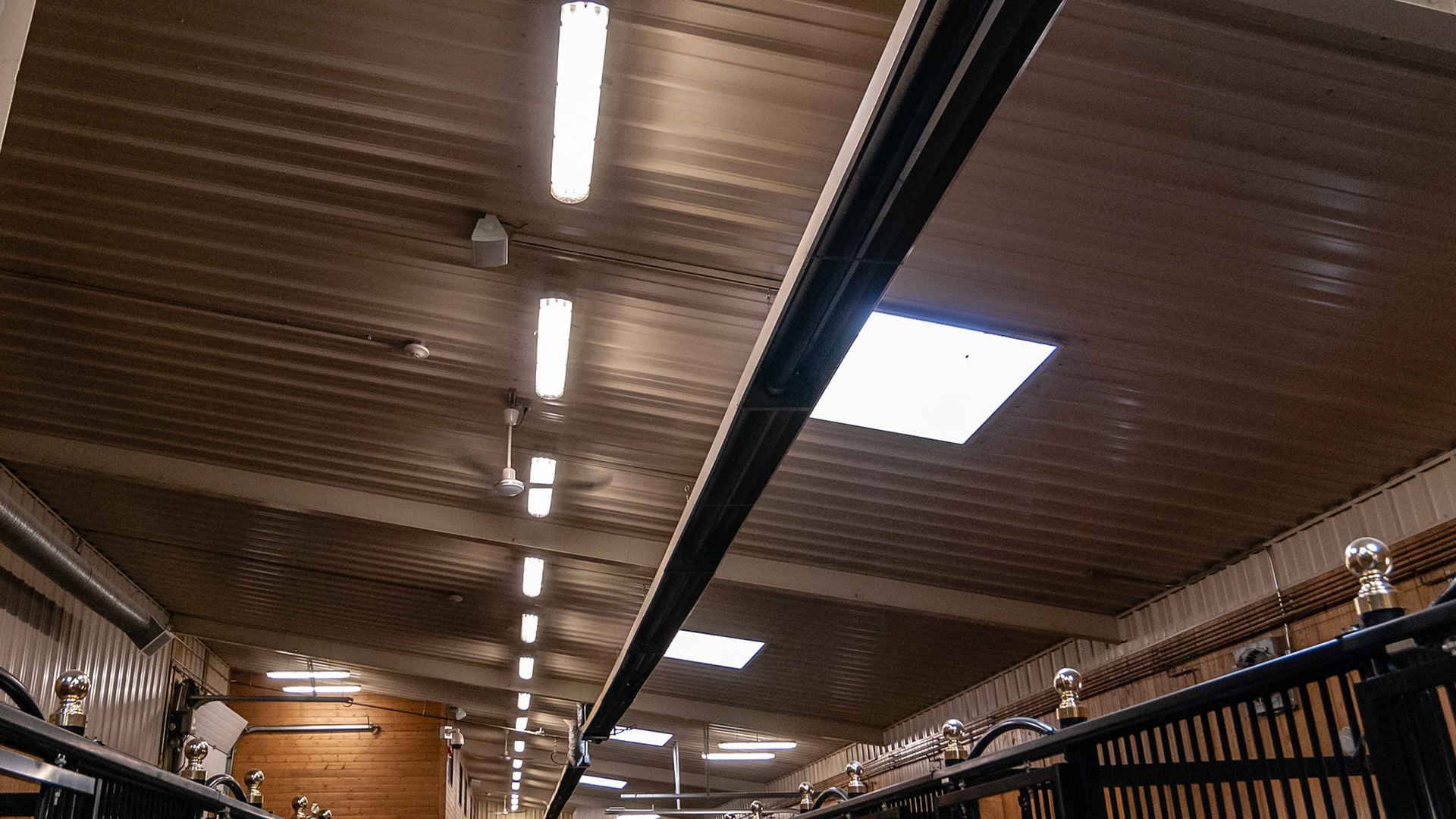

Fluoprescent light fixtures are high and out of harms way. A heating element runs the length of the barn in this northern climate barn. Music speakers, fire and smoke detectors
Fluorescent lights angled along the sides of the ceiling. Rubber brick flooring

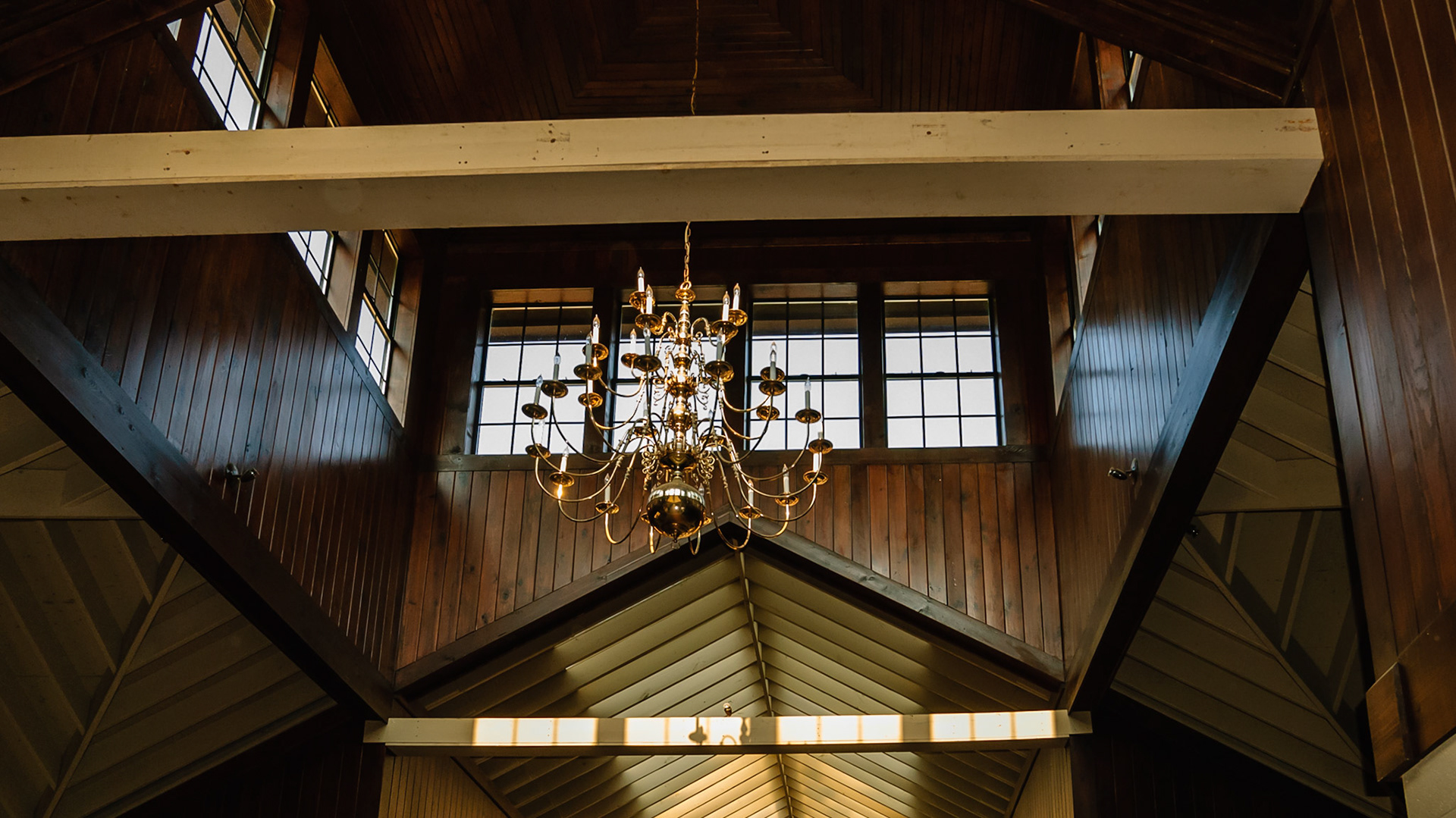

Skylight and a chandelier

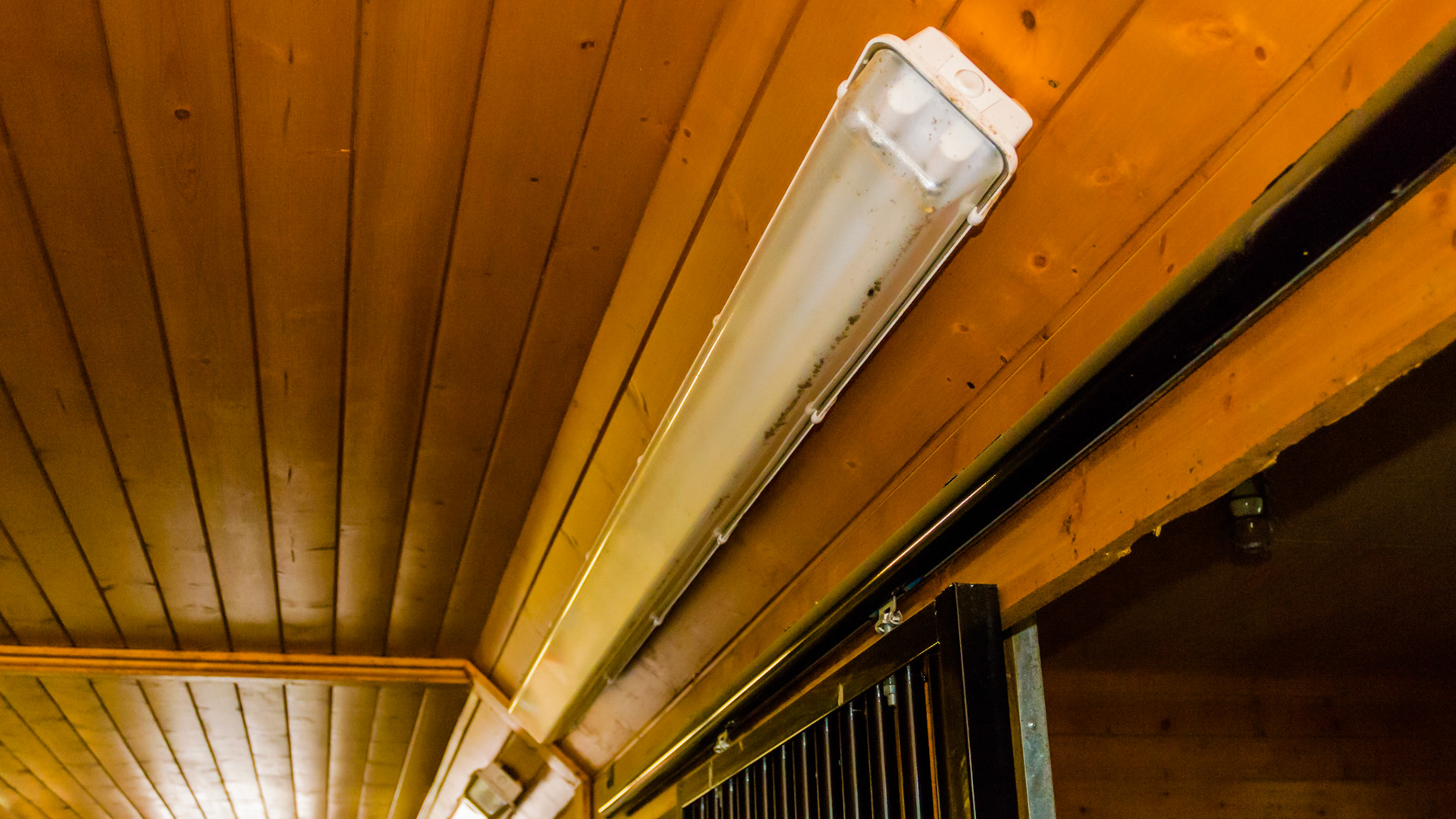

Fluorescent lights andled along the sides of the ceiling.

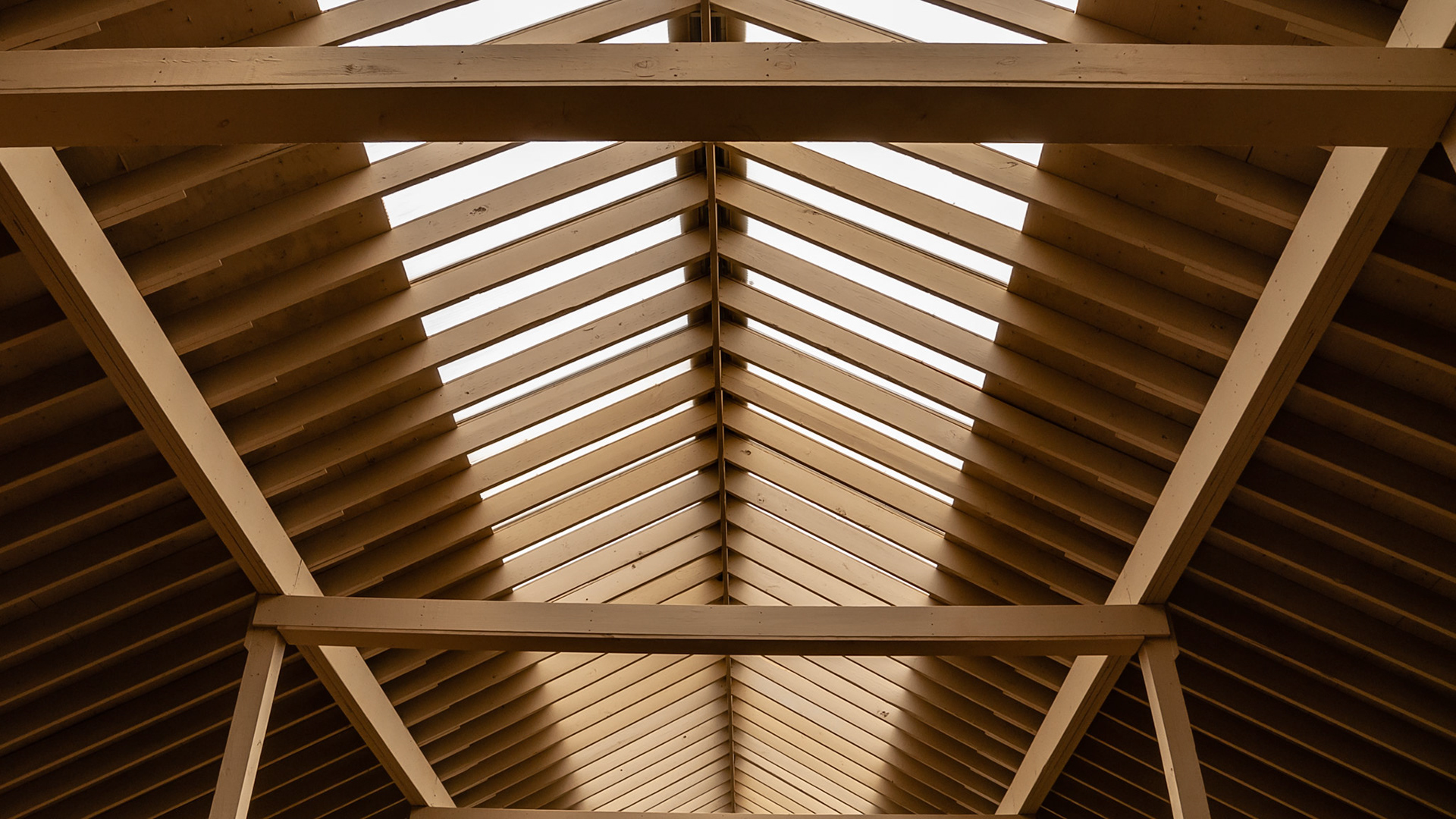

Skylights

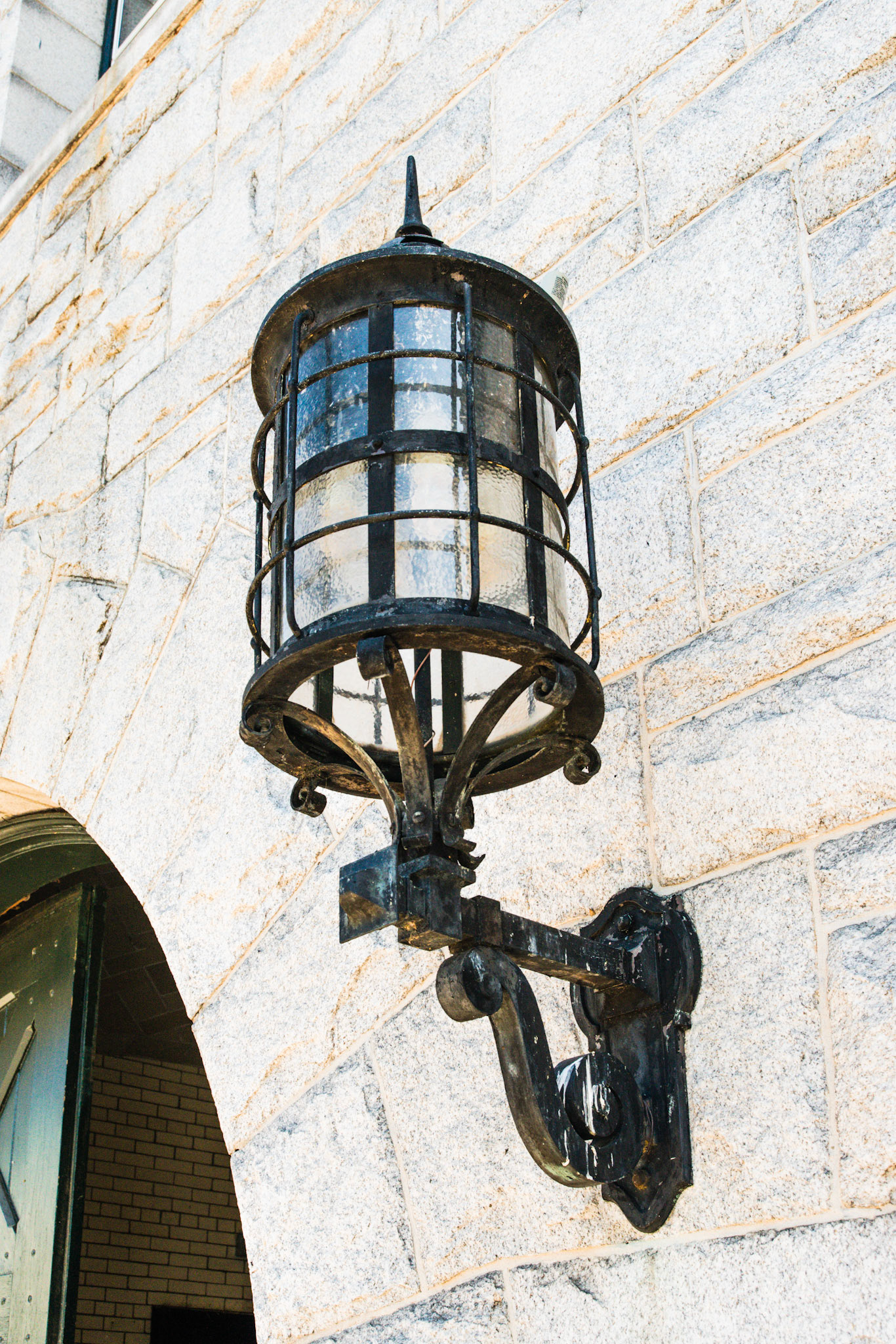

Hand made lamp by the original farrier/blacksmith for the farm. A famous barn in CT that was built in the 1940's by the same archetect used in the building of Grand Central Station in NYC.

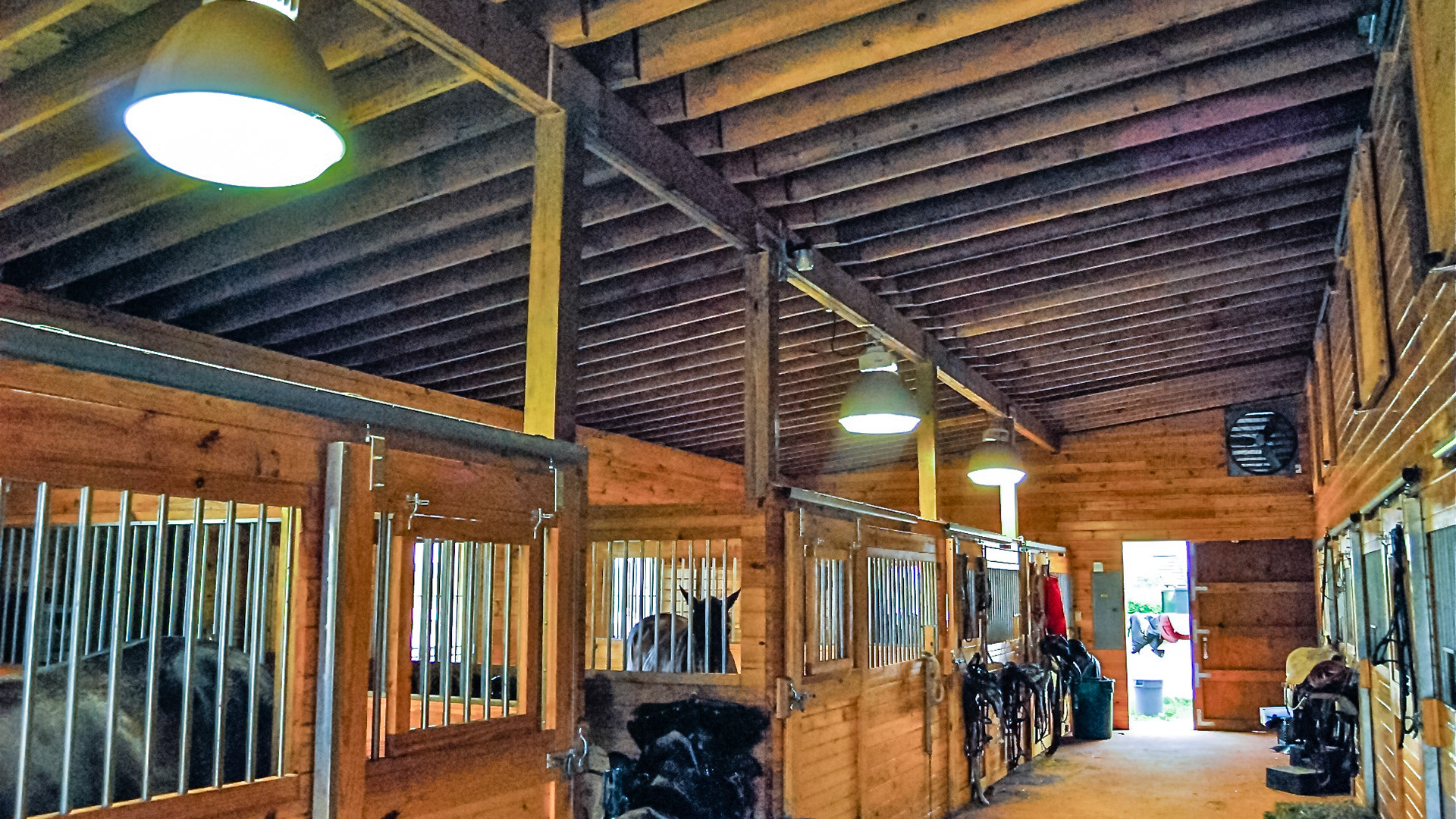

Serious lights inside a barn
An unused lighting structure is located directly above the horse. It has obviously been damaged in the past by other rearing horses.

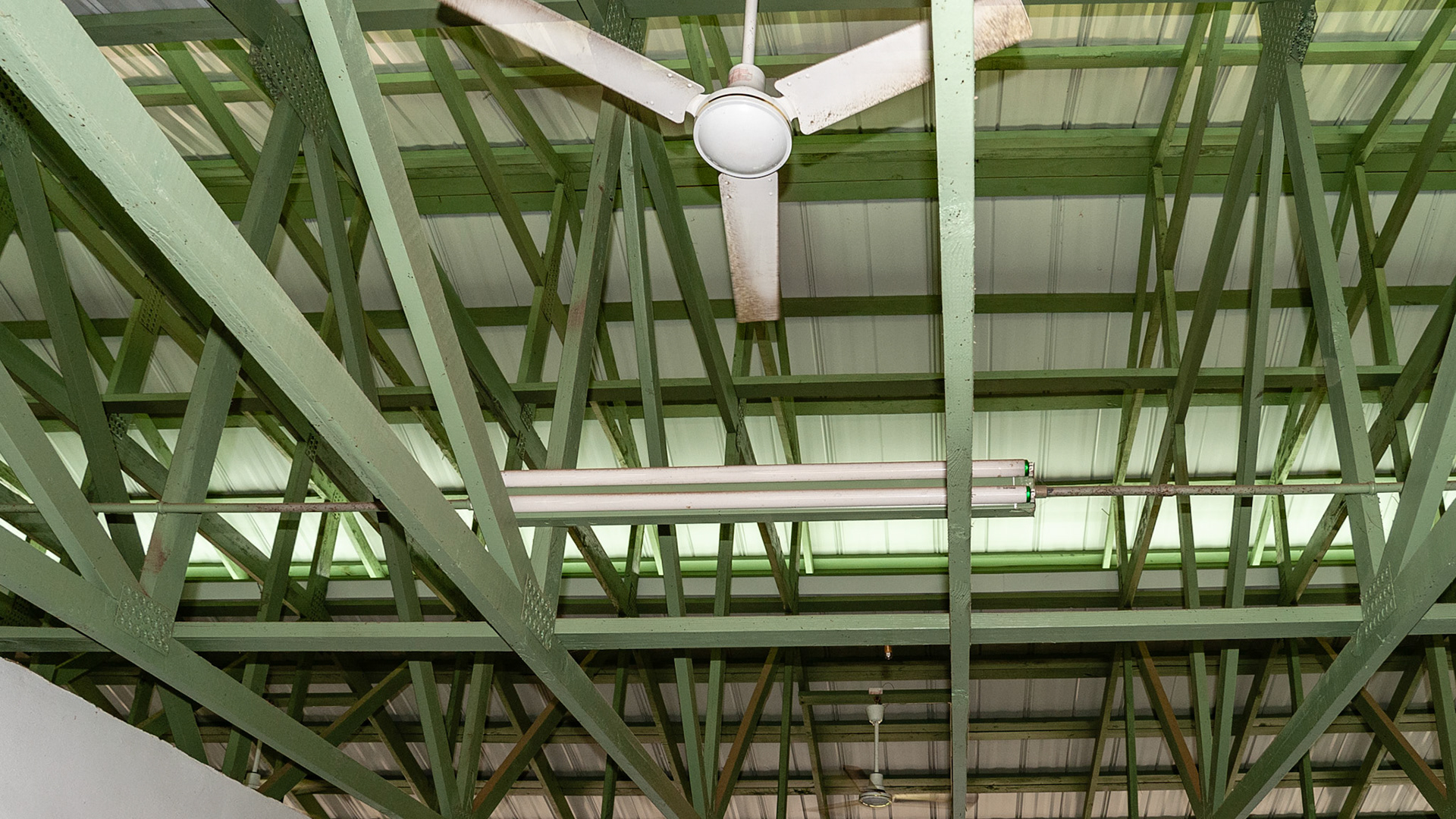

The rafters protect the light, fan and bug spray system from damage by a horse. May be harder to clean or maintain.

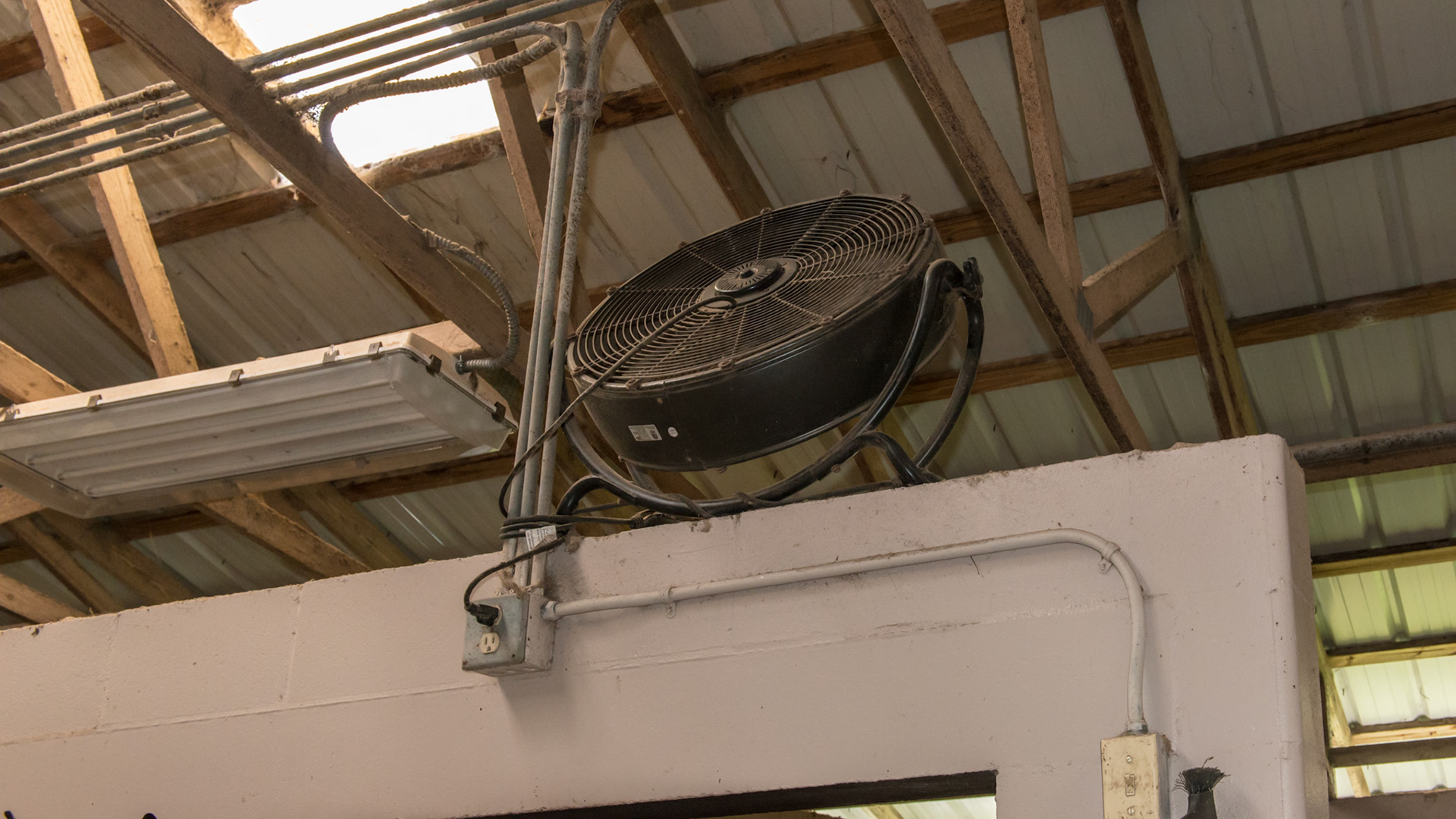

Very modern LED lights have twice the power of the mercury vapor lights they replaced. The cost was $2500 for this barn but the operating cost is much less according to the owner. And they are silent. Electrical installation is to code.
The rafters protect the light, fan and bug spray system from damage by a horse. May be harder to clean or maintain.
Beautiful design, fire sprinkler system, fire sensors, electrical conduit, ventilation fans beneath cupolas, skylights, decorative lighting and emergency lighting
Simple mounted fluorescent light
Sandwich boards used on this stall's half wall. Verticle bars are strong, allow air to flow, allow horse interaction, but are also a possible cause of jaw fractures. Note the position of the long florescent lamp between the stalls which avoids damage from horse heads. A hay rack sets in the corner.

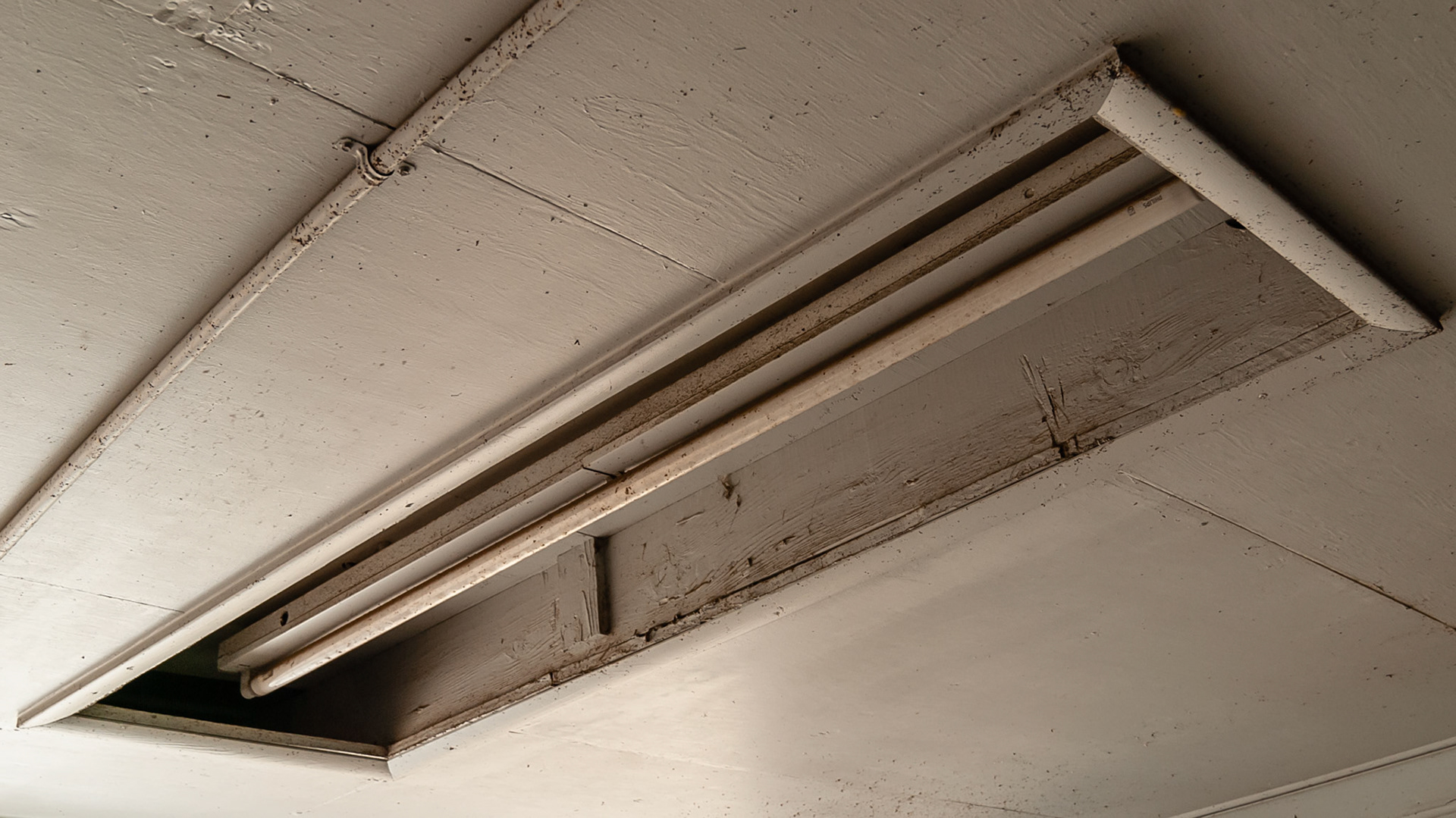

Overhead fluorescent lights are recessed decreasing the chance of a head breaking them

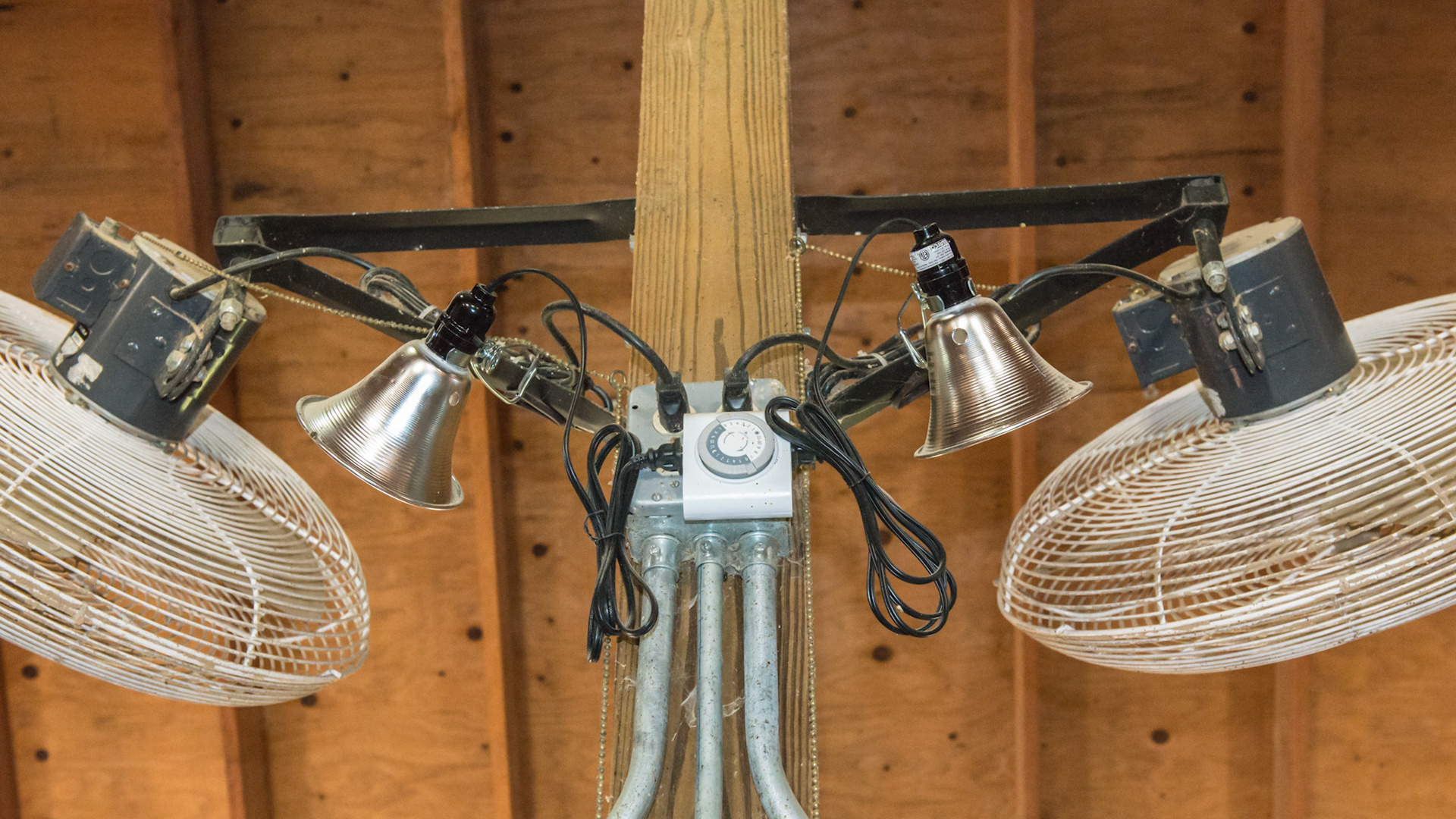

A 100 watt incandescent (cannot be fluorescent and not sure about LED) light bulb sets above each stall and is plugged into a timer to provide adequate amounts of light to fool the pituitary gland into thinking the amount of daylight is increasing. This helps mares to start cycling and for the winter hair coat to shed in both genders.

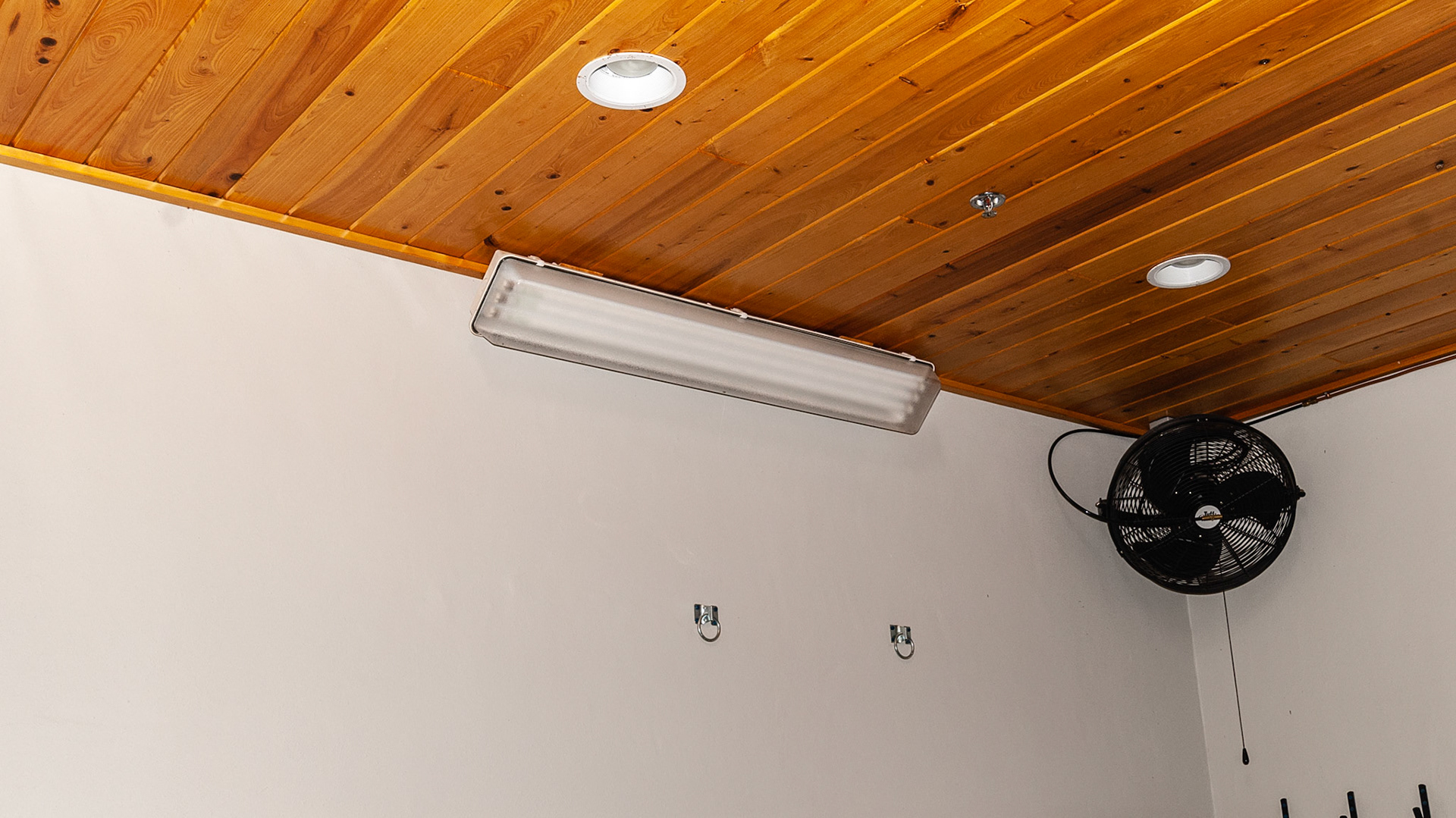

Angled fluorescent plus pot lights in a grooming stall

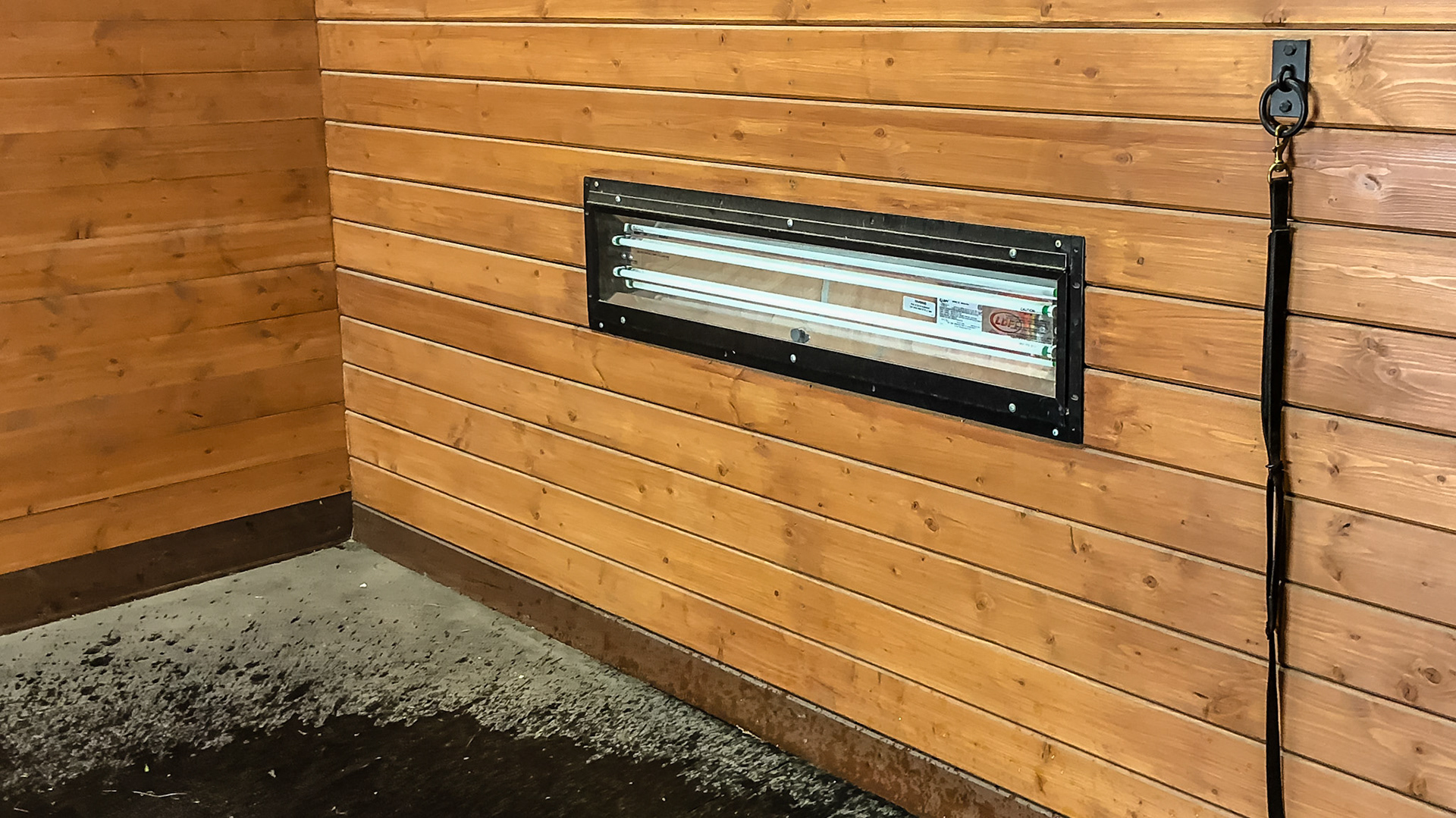

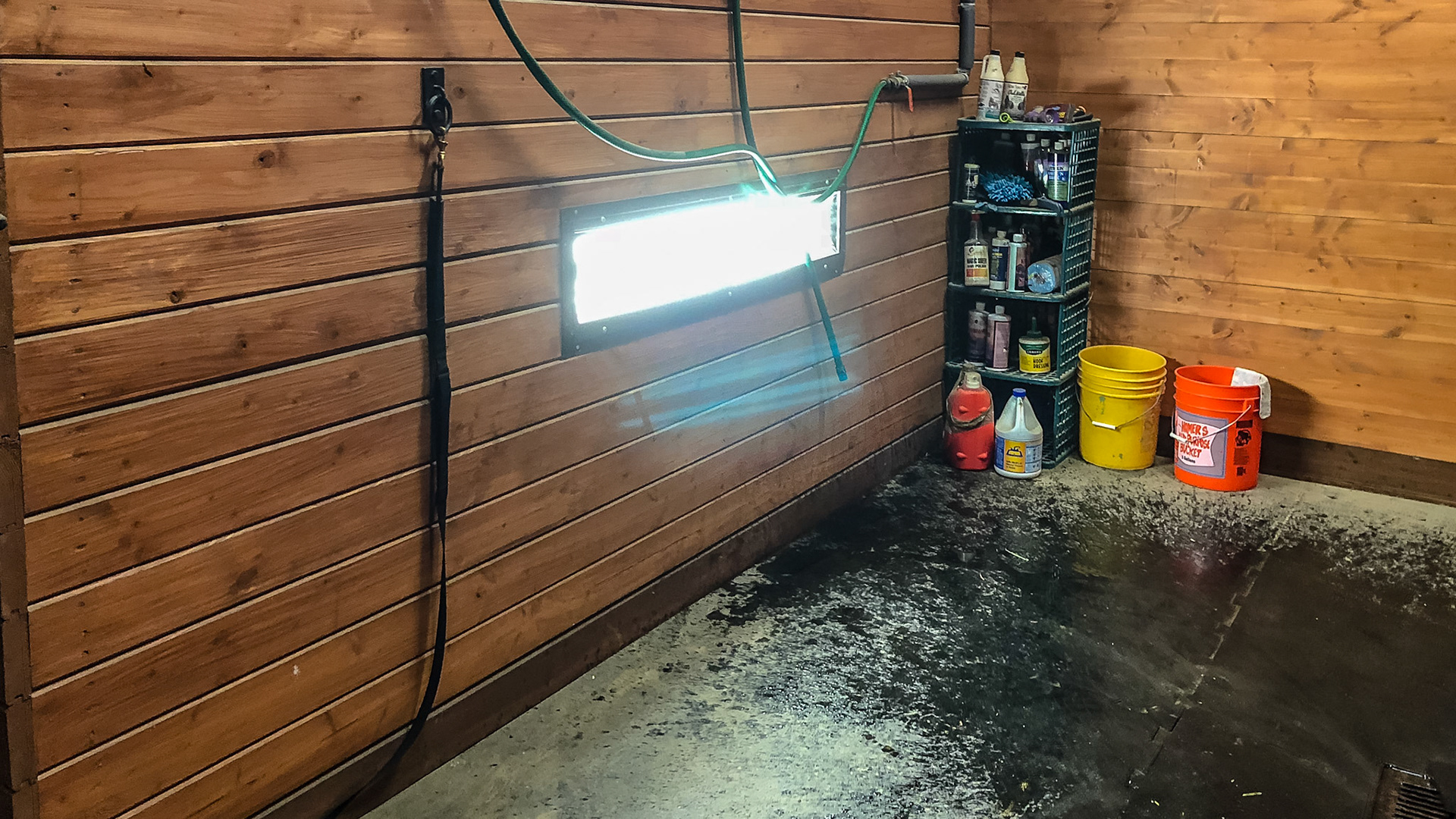

These high intensity lights are installed at both sides of the horse to give outstanding illumination of the horse even underneath.

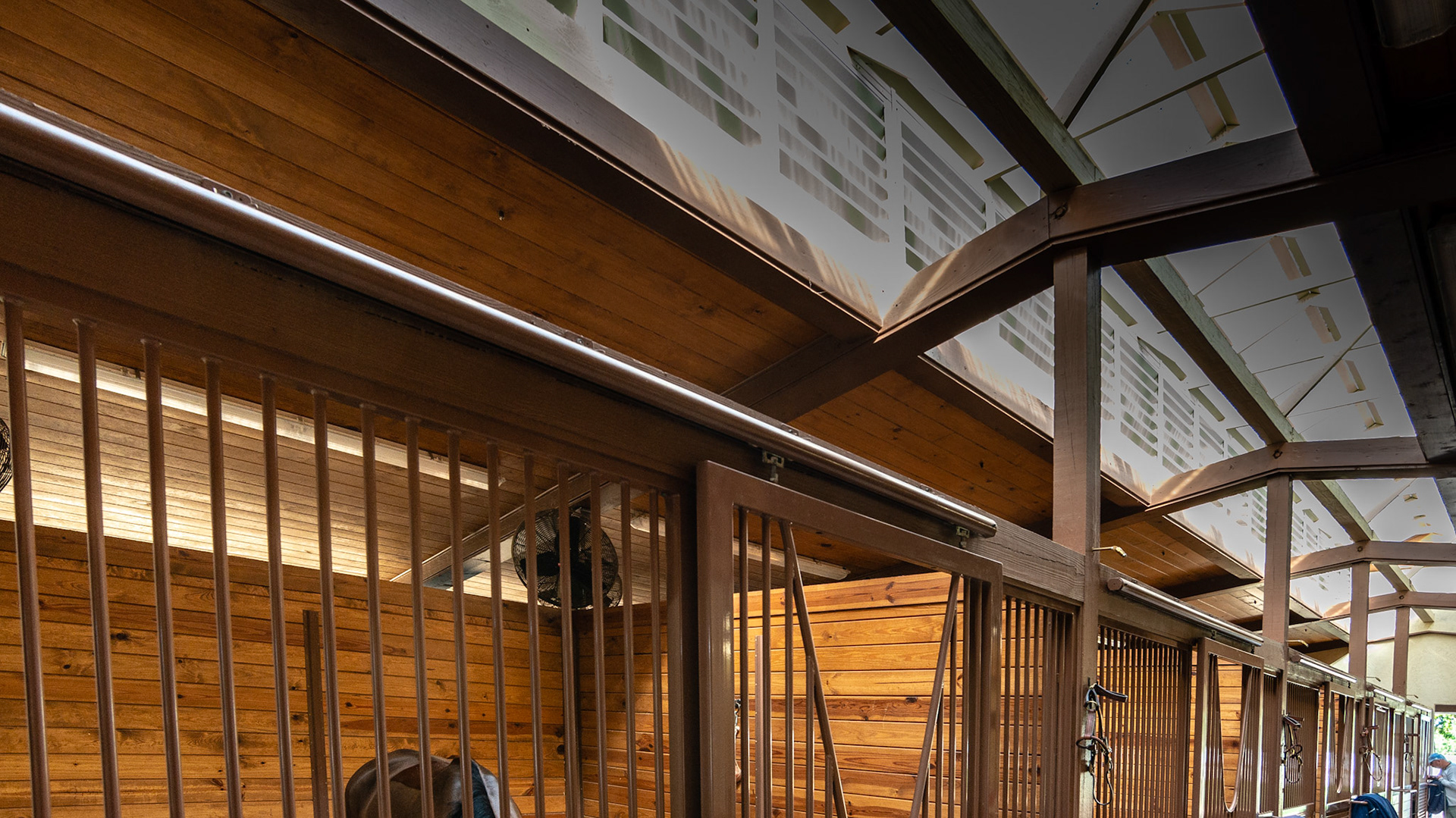

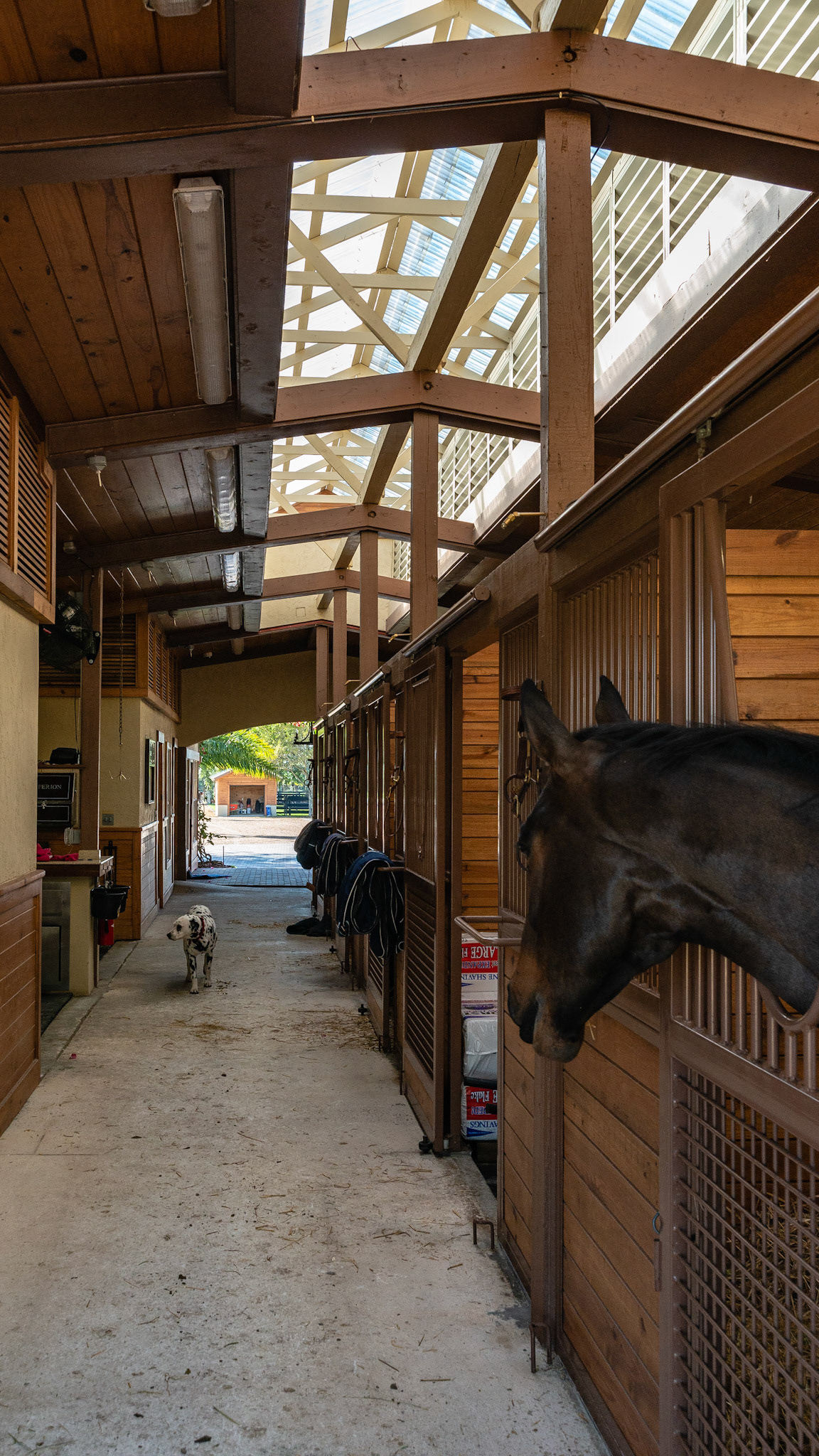

This skylight runs the length of the stalls giving horses exposure to the natural circadian rhythm of light.
These high intensity lights are installed at both sides of the horse to give outstanding illumination of the horse even underneath.
This skylight runs the length of the stalls giving horses exposure to the natural circadian rhythm of light.

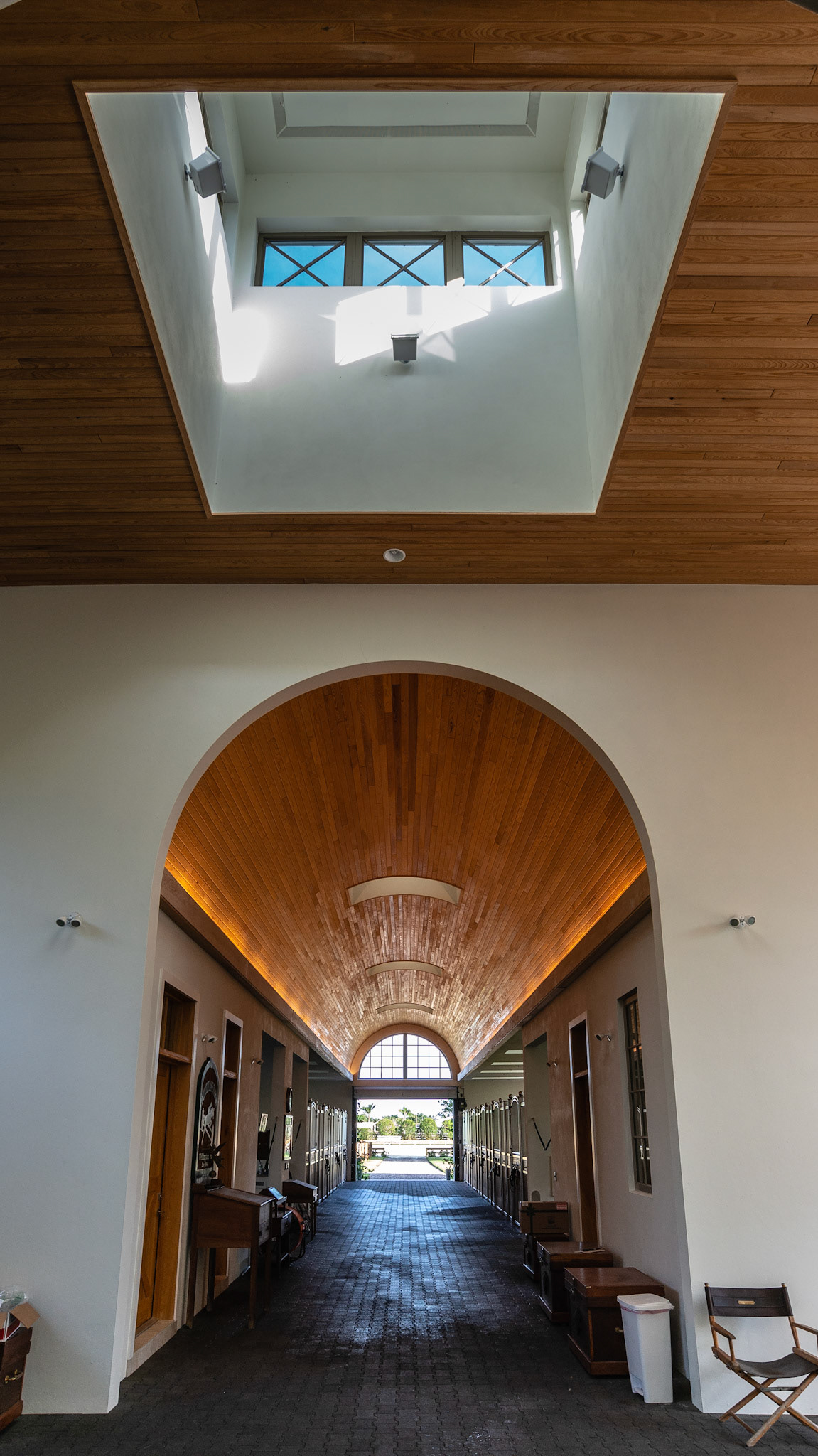

Recessed lights along the ceiling just above the stalls, plus a skylight

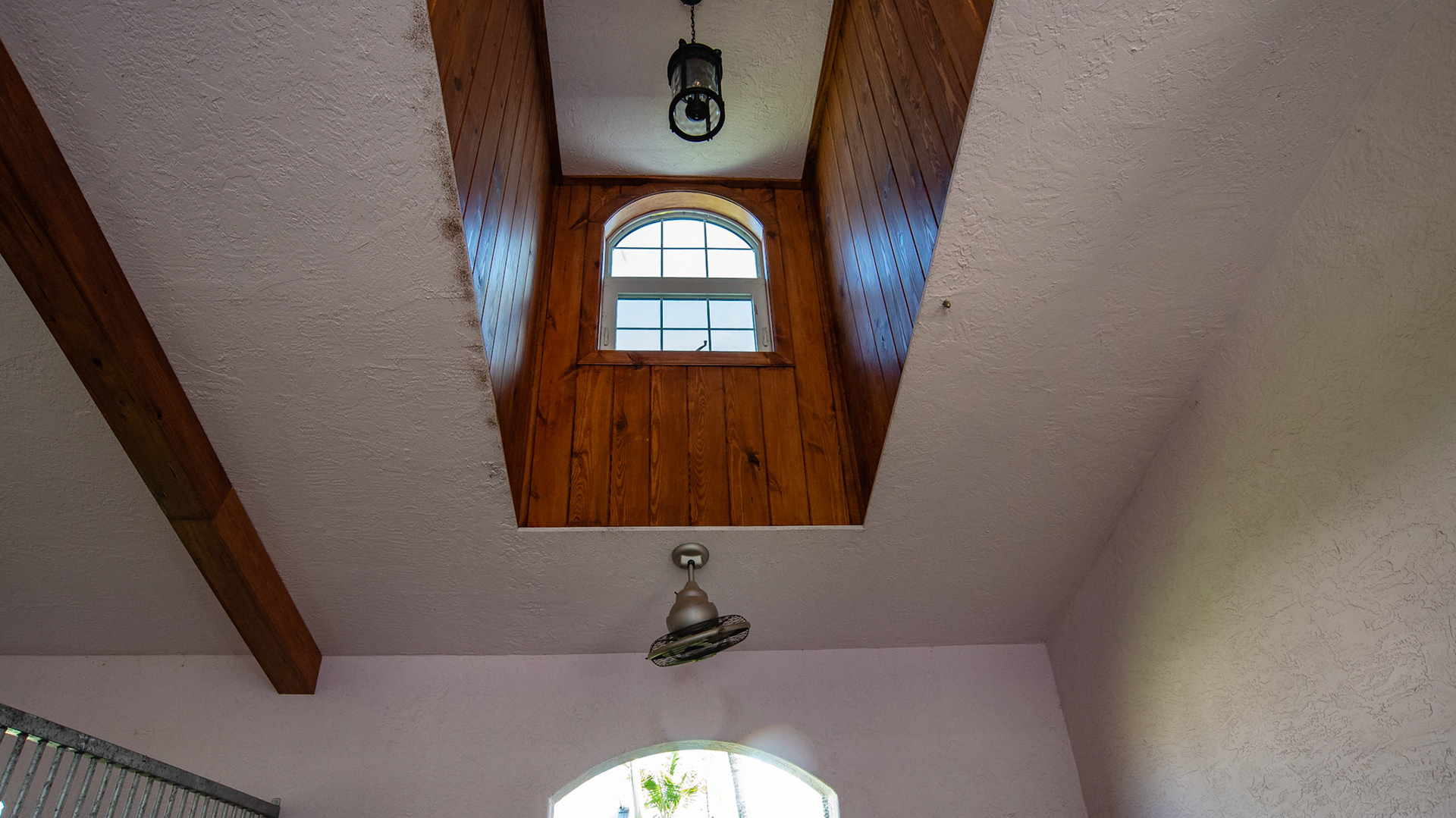

The ceiling fan oscillates distributing the flow of air evenly over the stall in the hot FL weather. The ceiling window adds light but not direct hot sun rays during summer. It is interesting that dirt accumulates along the edge of the stucco ceiling.
Central light bulb coming close to a head. This is dangerous not just for the horse, but for the handler as the horse becomes spooked by the crashing glass and potential electrocution.

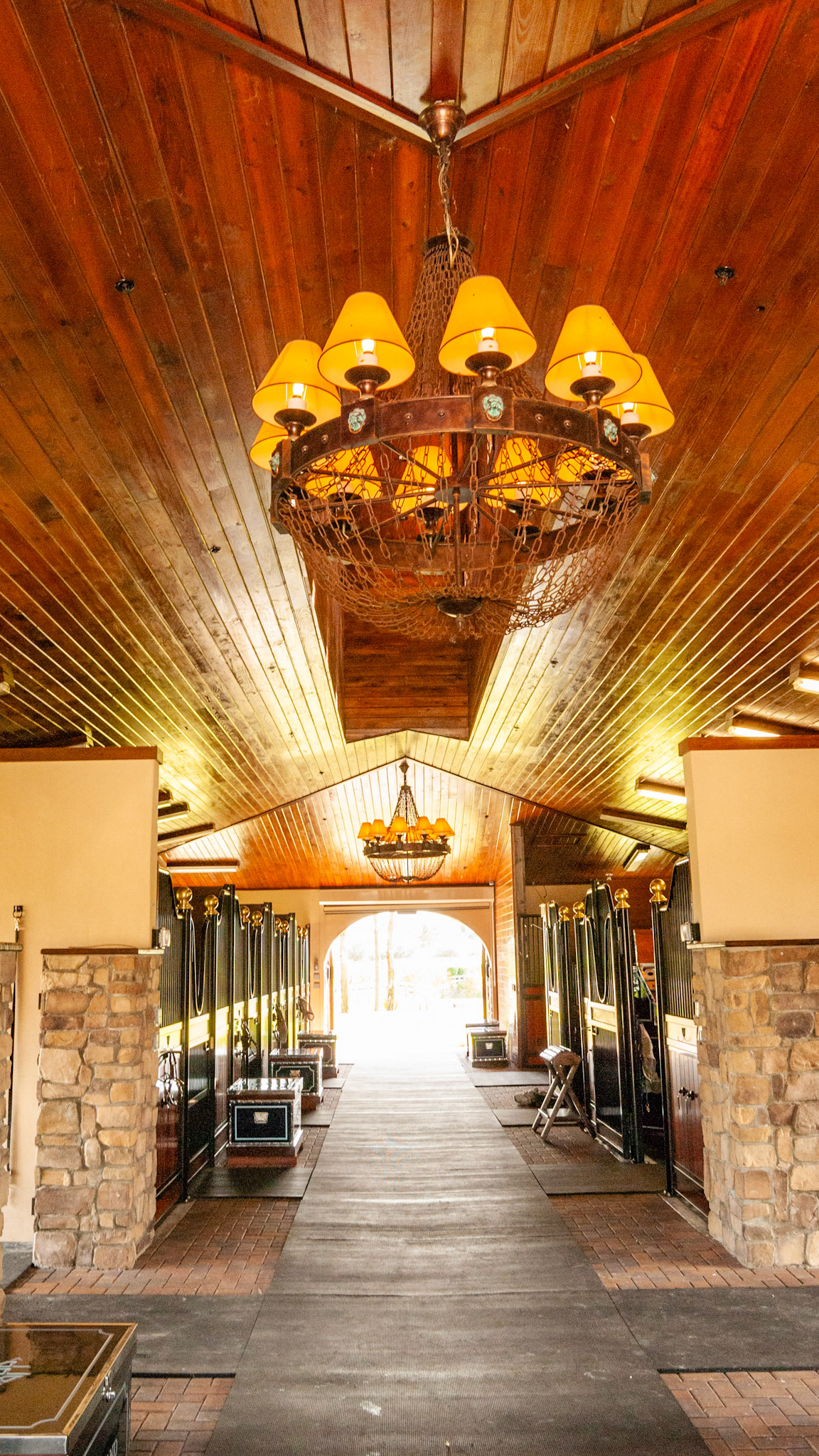

Functional fluorescent lights with additional decorative chandeliers. Also sealed and stained tongue and groove finished ceiling.
Functional fluorescent lights with additional decorative chandeliers. Also sealed and stained tongue and groove finished ceiling.

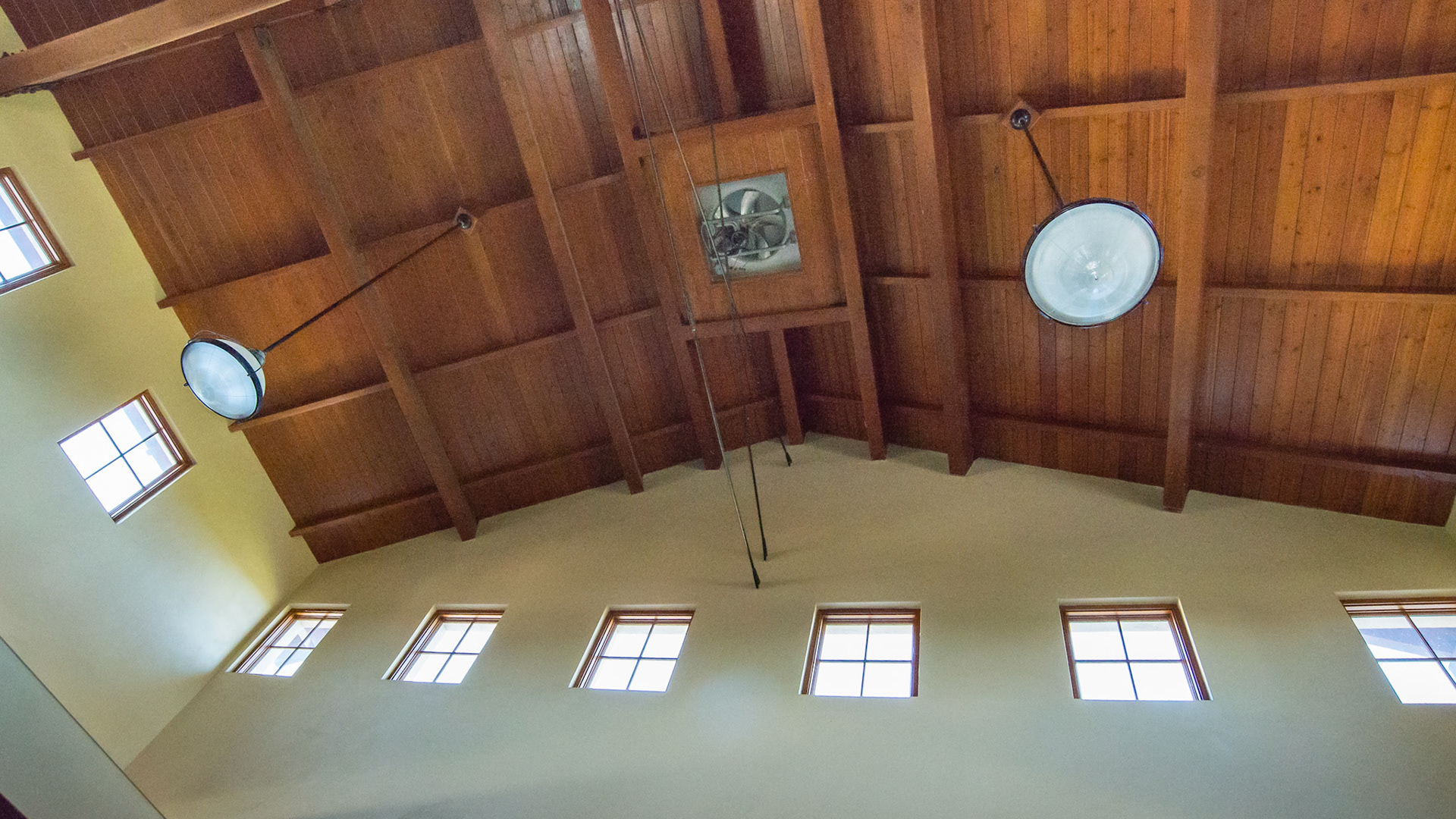

2 insect spray heads extending from the wall, hardwood ceiling with 1 of several exhaust fans.
Conduit. The lighting is recessed and high but still in the center of the stall. Ceiling fans are common in Florida.
Above the stall: CTV camera, Sprinkler head, ventilation fans, and abundant ambiant lighting and air flow.
Rotating twin oscillating fans and a fire detector.

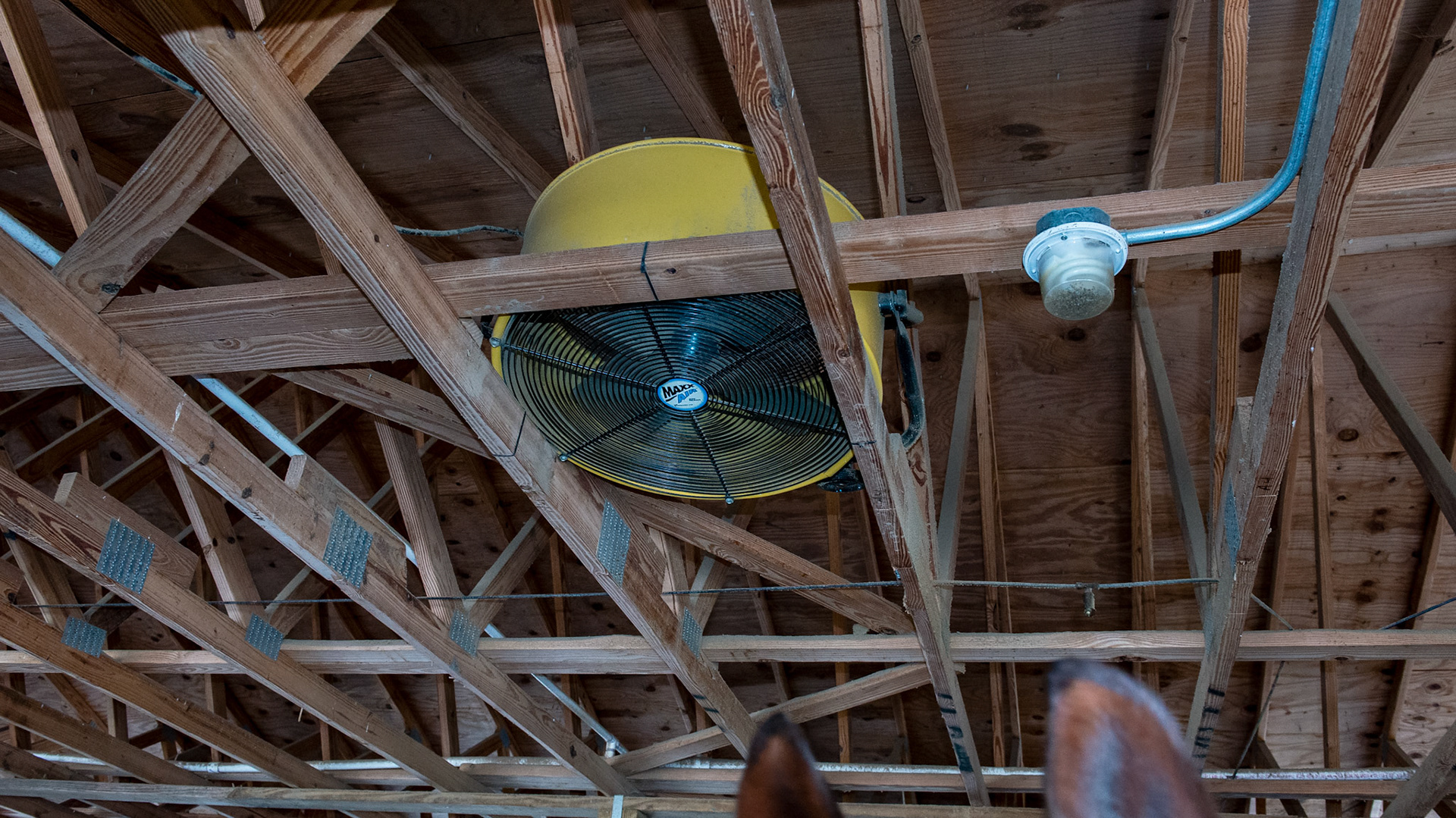

This is a floor fan that has been placed in the rafters of this Florida stall. It offers a large volume of airflow directly down on the horse along with fans mounted on the front wall.

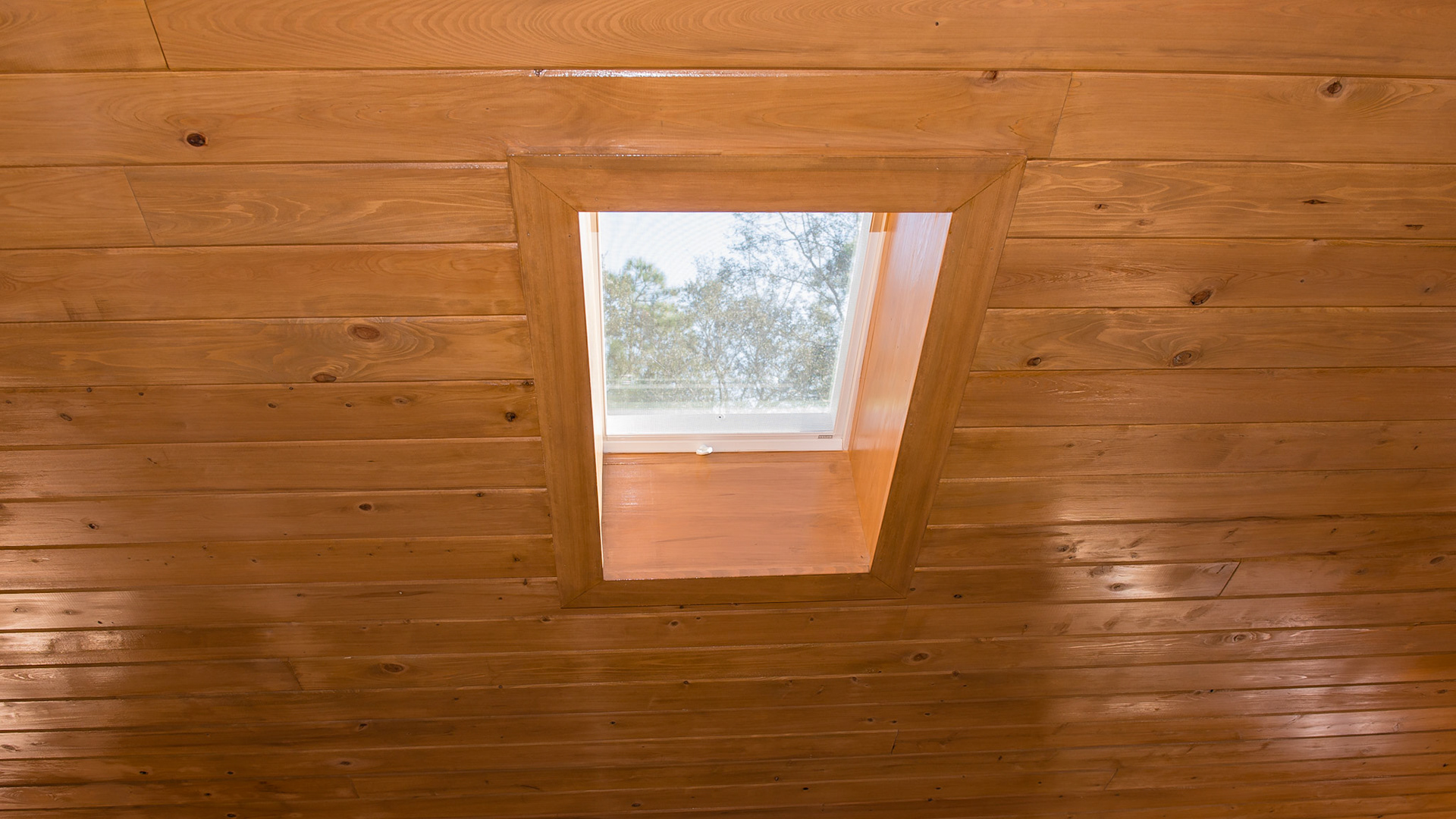

Roof vents can be opened using a connecting pole attached to the loop handle.

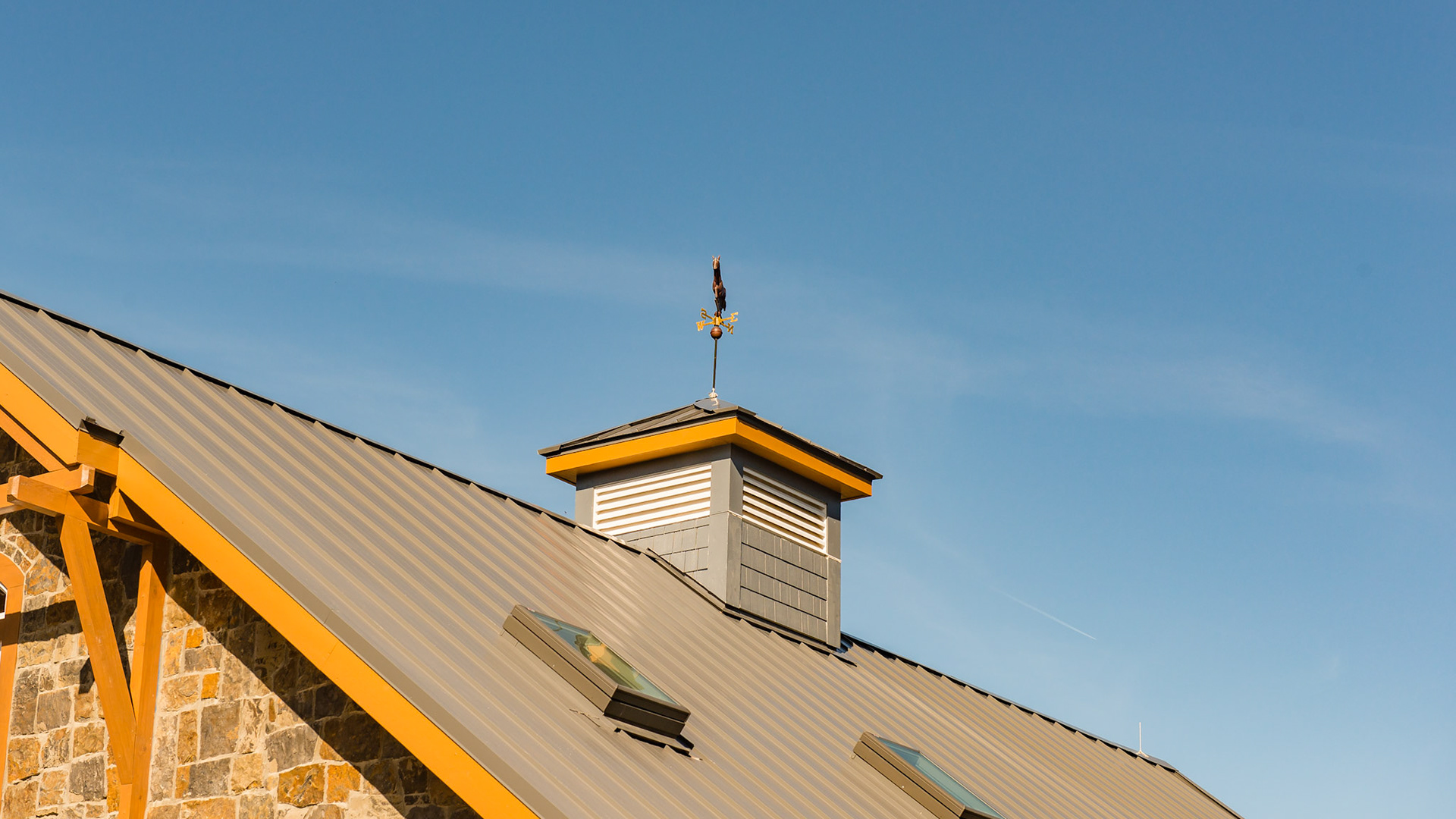

A custom made cupola and opening skylights provide functional ventilation in this barn.

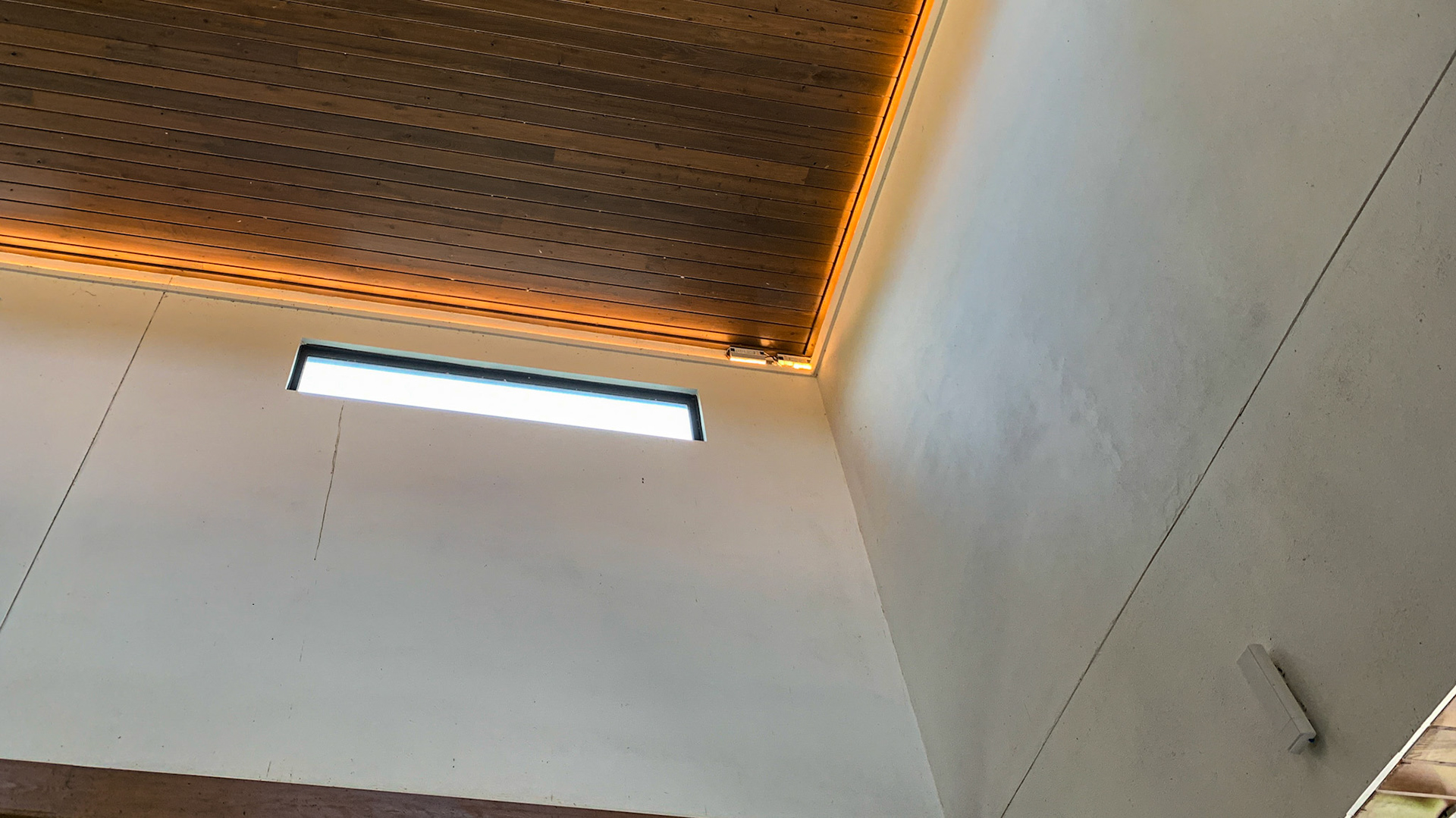

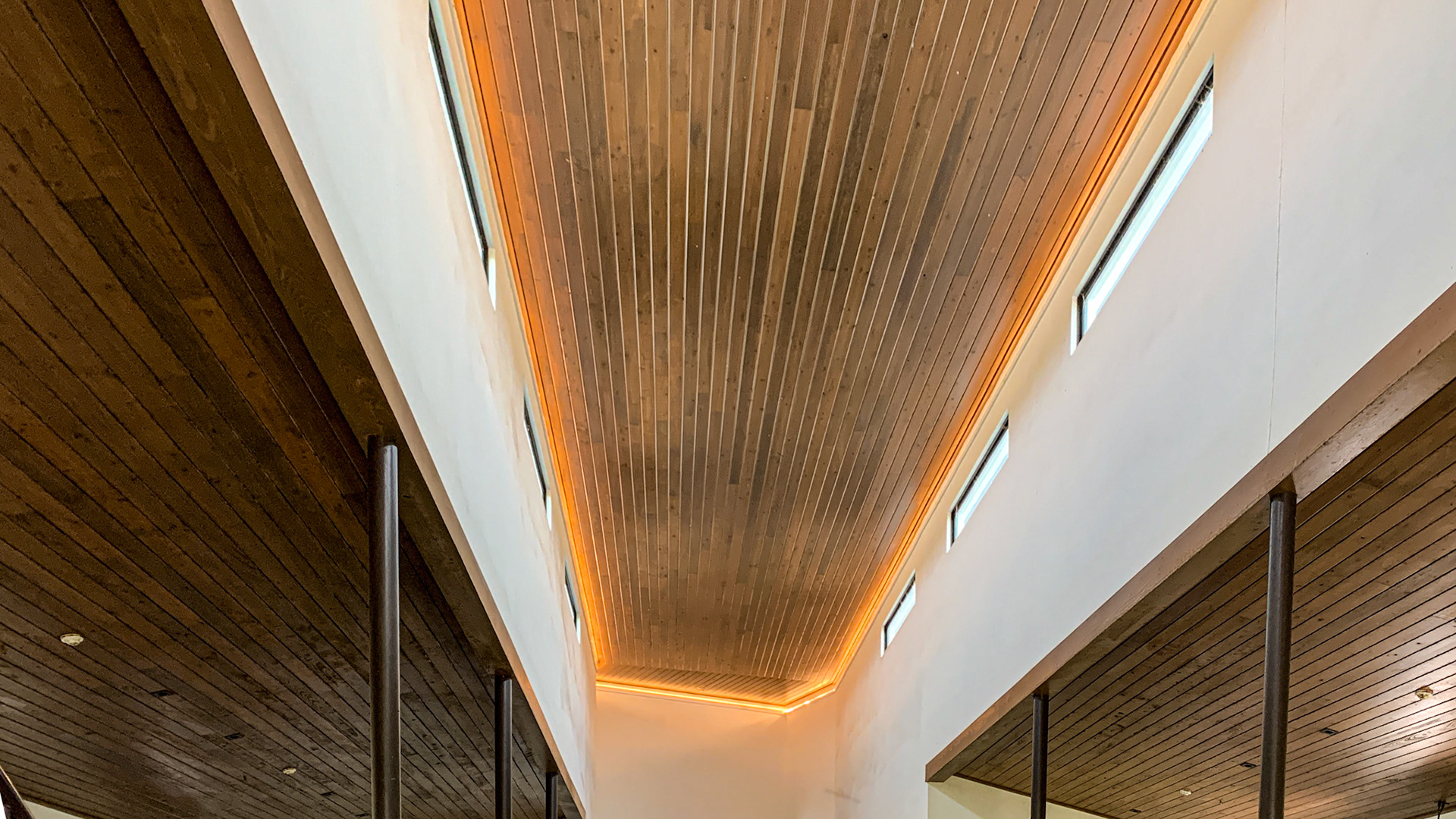

LED accent lightings lines the ceiling between the ceiling and the vertical walls that remain on during daylight. I bet they look nice as night as well as adding light to inspect but not much to affect the sleep of the horses.
LED accent lightings lines the ceiling between the ceiling and the vertical walls that remain on during daylight. I bet they look nice as night as well as adding light to inspect but not much to affect the sleep of the horses.
